Ambient Atmosphere Requirements
Temperature 32
0
F to 104
0
F (0
0
C to +40
0
C)
Humidity 0 to 95% non-condensing
Mounting
Location and Spacing
The Universal Source Controller models are all fully
convection cooled, therefore it is vitally important to ensure
that each unit is installed in a ventilated location that
permits sufficient airflow and provides the correct ambient
conditions.

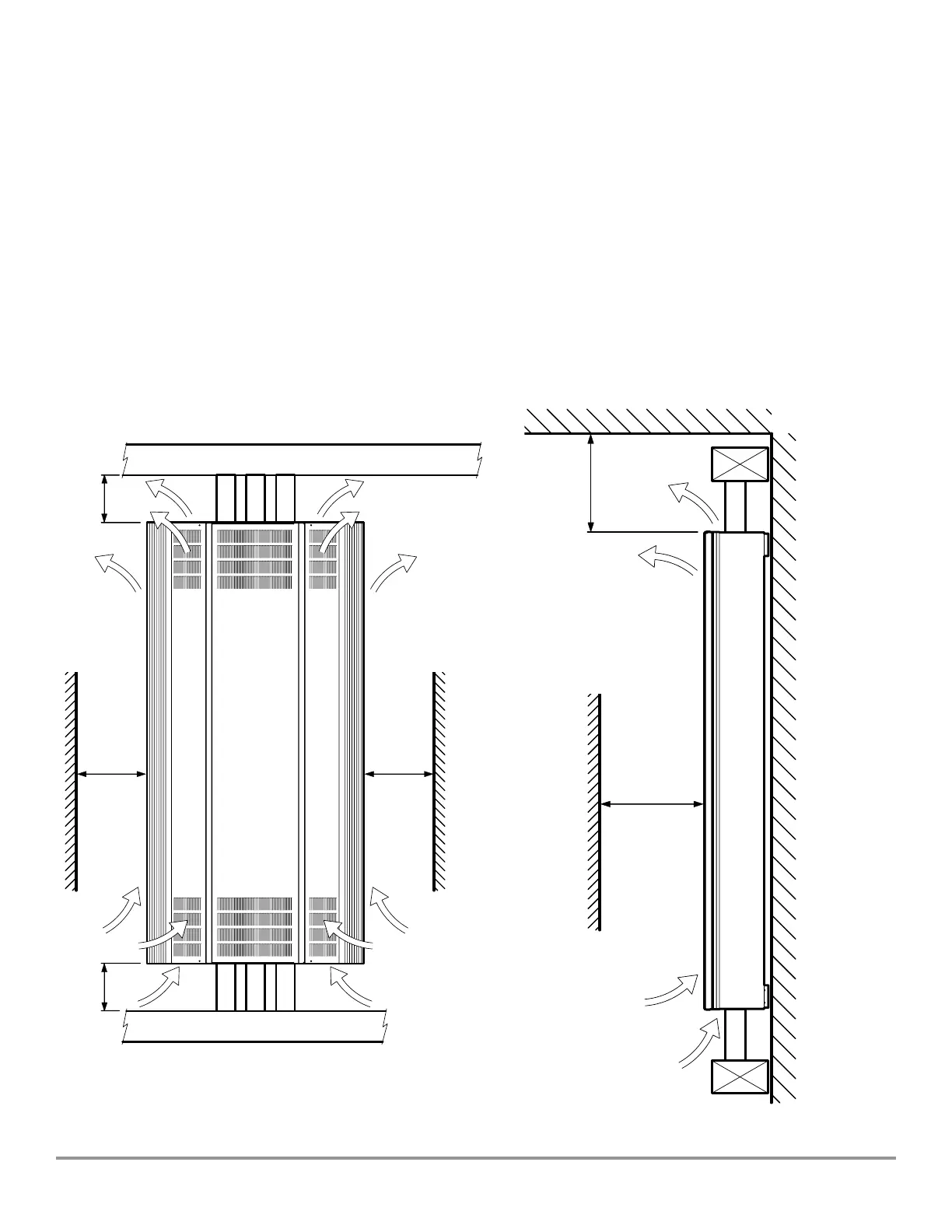

Ensure that the minimum distances to walls and other
equipment shown in the diagrams below are maintained.
Also ensure that the stated ambient atmosphere
requirements are not exceeded.
Refer to ‘Important points for consideration’ when choosing
a mounting location.
Upper Raceway
Lower Raceway
Airow
Airow
Airow
8 in.
(200 mm)
Minimum
8 in.
(200 mm)
Minimum
5 in.
(130 mm)
Minimum
14 in.
(360 mm)
Minimum
Distance to
Ceiling
14 in.
(360 mm)
Minimum for
Door Access
and Cooling
5 in.
(130 mm)
Minimum
Universal Source Controller - Feed ThruWaveLinx Wired
