Introduction
Welcome
The WaveLinx Wired Universal Source Controller range from
Cooper Lighting Solutions has been designed to provide
maximum flexibility in both installation and operation.
Every model in the range can accept a variety of industry
standard control options, from iCANbus to DMX, from
ethernet to RS-485. Similarly, every model can drive a wide
range of lighting loads, from incandescents to dimmable
fluorescents, from non-dim apparatus to DALI digital
modules.
Much care and attention has been applied to the installation
and maintenance of the Universal Source Controllers.
Each model provides clear, logical cable routing and every
high voltage channel is controlled by an individual, easy to
replace dimmer card.
Range Overview
Each model is specified using a part number in the following
format:
Model Number Supply Voltage Supply Type Circuits Maximum Load
SC277-06-UN-
1P-FT
SC277-12-UN-
1P-FT
SC277-24-UN-
3P-FT
120 to 277 VAC 1 Phase
6
16A per Channel
12
24

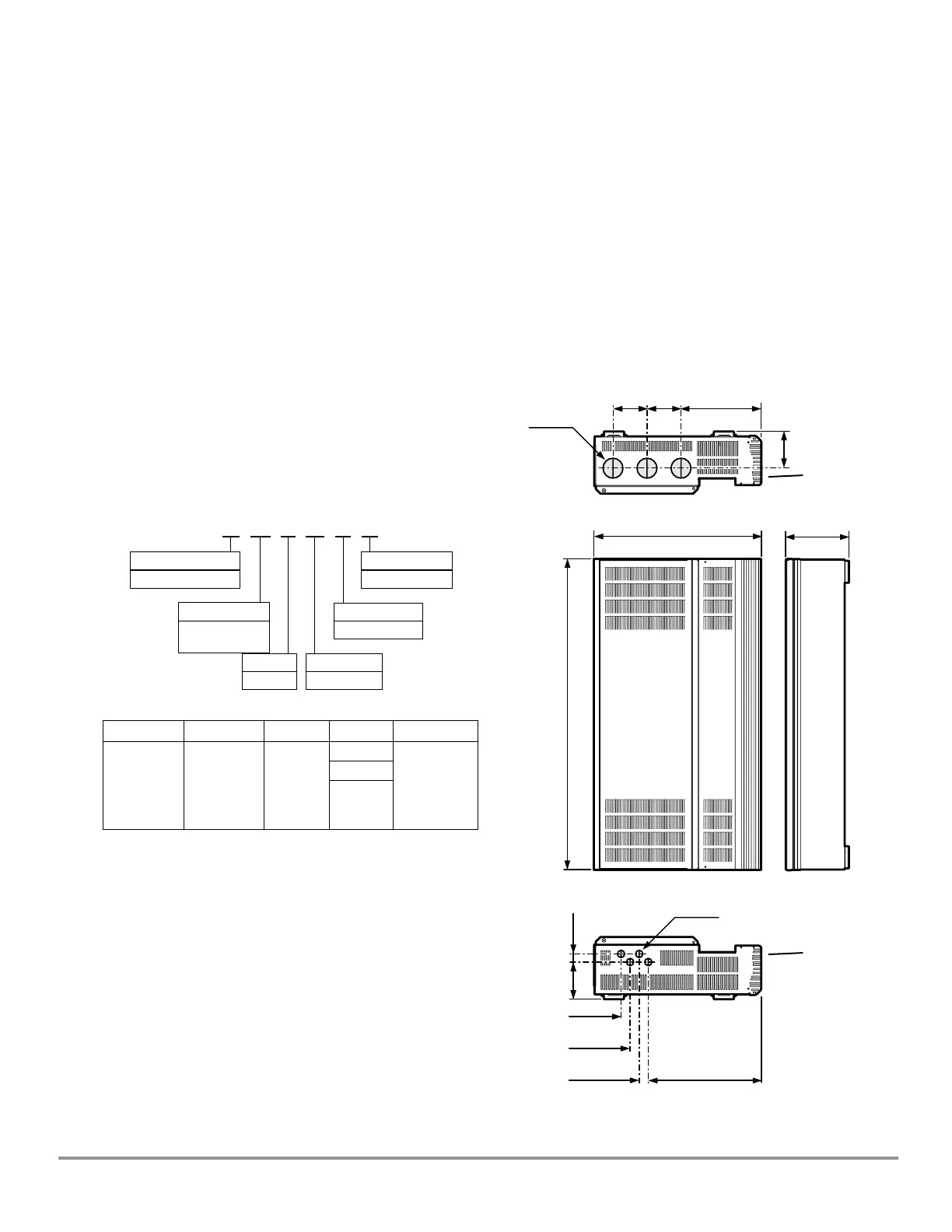

Cabinet Dimensions
Three overall cabinet sizes are available as shown on this
and the following pages.
6 Circuit Cabinet
Weight
Packed: 100 lbs (45 Kg)
Unpacked: 88 lbs (40 Kg)
4.13 in.
(105 mm)
37.2 in. (945 mm)
4.13 in.
(105 mm)
9.78 in.
(248.5 mm)
4.45 in.
(113 mm)
7.6 in.
(193 mm)
20.3 in.
(517 mm)
Ø 0.89 in.
(22.5 mm)
0.98 in.
(25 mm)
4.53 in.
(115 mm)
1.1 in.
(28 mm)
1.1 in.
(28 mm)
1.1 in.
(28 mm)
13.76 in.
(349.5 mm)
Knockouts for Supply
and Load Wiring Only
Knockouts for Low
Voltage Control
Wiring Only
Ø 2.42 in.
61.5 mm
SC 120 06 UN 1P FT
Product
SC = Source Controller
Supply Voltage
277-120 to 277
VAC
Type
UN = Universal
Channels
06, 12, 24
Supply Type
1P = Single Phase
Panel Feed
FT = Feed Through
Universal Source Controller - Feed Thru WaveLinx Wired
9850-000234-02 page 3
May 2024
www.cooperlighting.com
