Single Phase Supply
The SC-UN-FT is provided with a single phase main power
supply connection that supports an incoming supply of
120 VAC or 277 VAC.
Connecting the Supply
The suggested entry point for the supply wiring is via the
center knockout on the top panel of the chassis. This
provides immediate access to the supply screw terminals
and also leaves the two knockouts either side for exiting
load wiring. Use a suitable conduit and coupler to feed the
source wiring safely into the chassis.

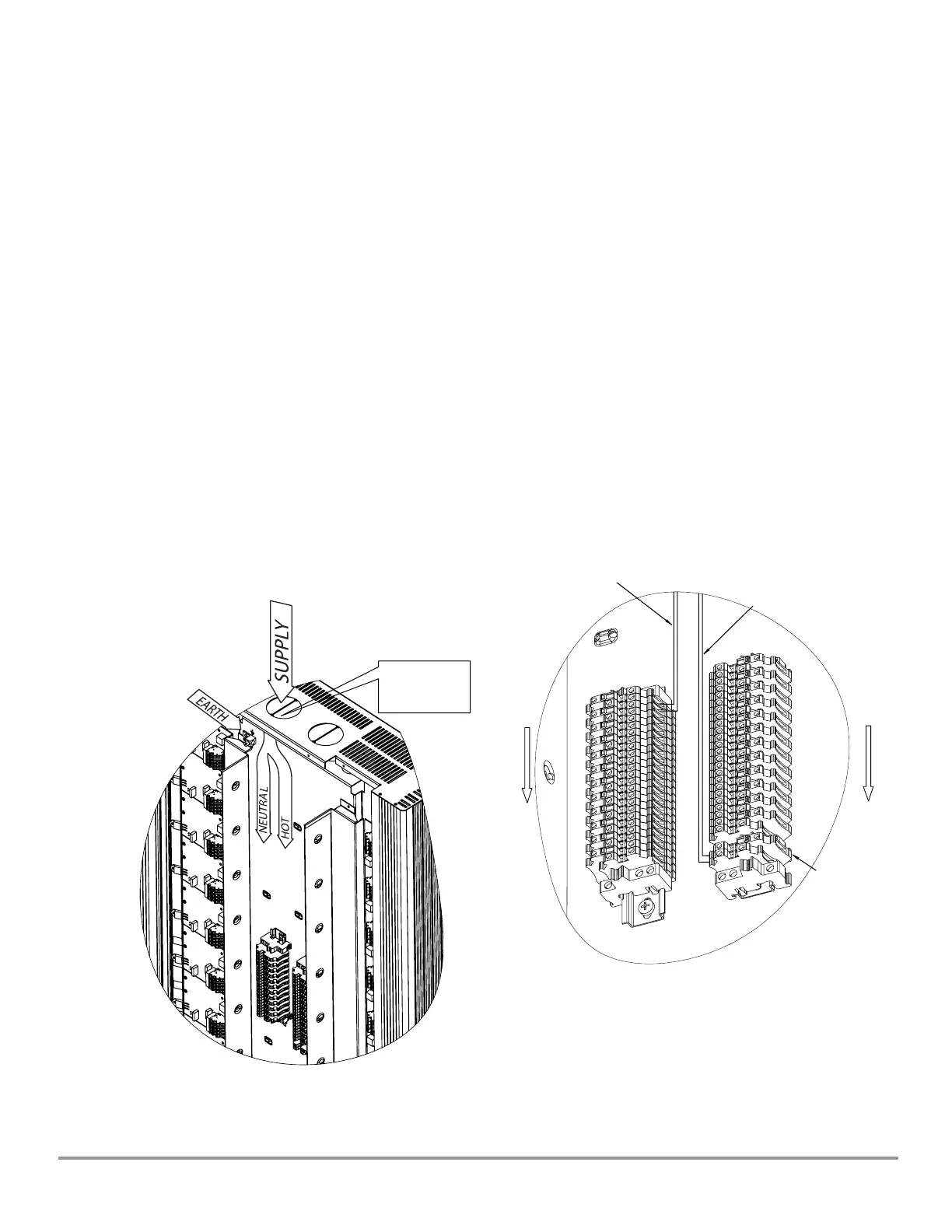

See the diagram on the right and on the next page for
connection details. The main earth terminal is located near
to the left hand supply knockout at the top of the panel. The
earth connection is bonded to the main backplane of the
chassis and the outer panels.
Top panel knockouts: 3 x 2.42 inches (61.5 mm)
Supply Power to the Panel
The main power supply terminals are spaced slightly below
the dimmer channel supply terminals. Connect the supply
conductors to the screw terminals marked “H” and “N”.
Supply Power to the Dimmer Channels
Connect the dedicated breaker feeds for each dimmer
channel to the terminals for each used dimmer channel.
Connect the supply conductors to the screw terminals
marked “H” and “N”.
Supply Power Notes
In 6 and 12 size controllers, all supply power connects to
the left side of the terminal block. In 24 size controllers, all
supply power connects to the interior side of the terminal
block, i.e. channels 1-12 will connect on the right side and
channels 13-24 will connect on the left side of the terminal
block.
Knockout size:
2.42 in (61.5 mm)
See pages 3 and 4
for full dimen-
sions
Main Supply Feed
from Circuit Breaker
(Hot and Neutral
Wires)
Main Power
Supply Wiring
Terminal
Channels 13 to 24
Channels 1 to 12
Dimmer Channel
Feed from Circuit
Breaker (Hot and
Neutral Wires)
Universal Source Controller - Feed Thru WaveLinx Wired
9850-000234-02 page 9
May 2024
www.cooperlighting.com
To Next Page
