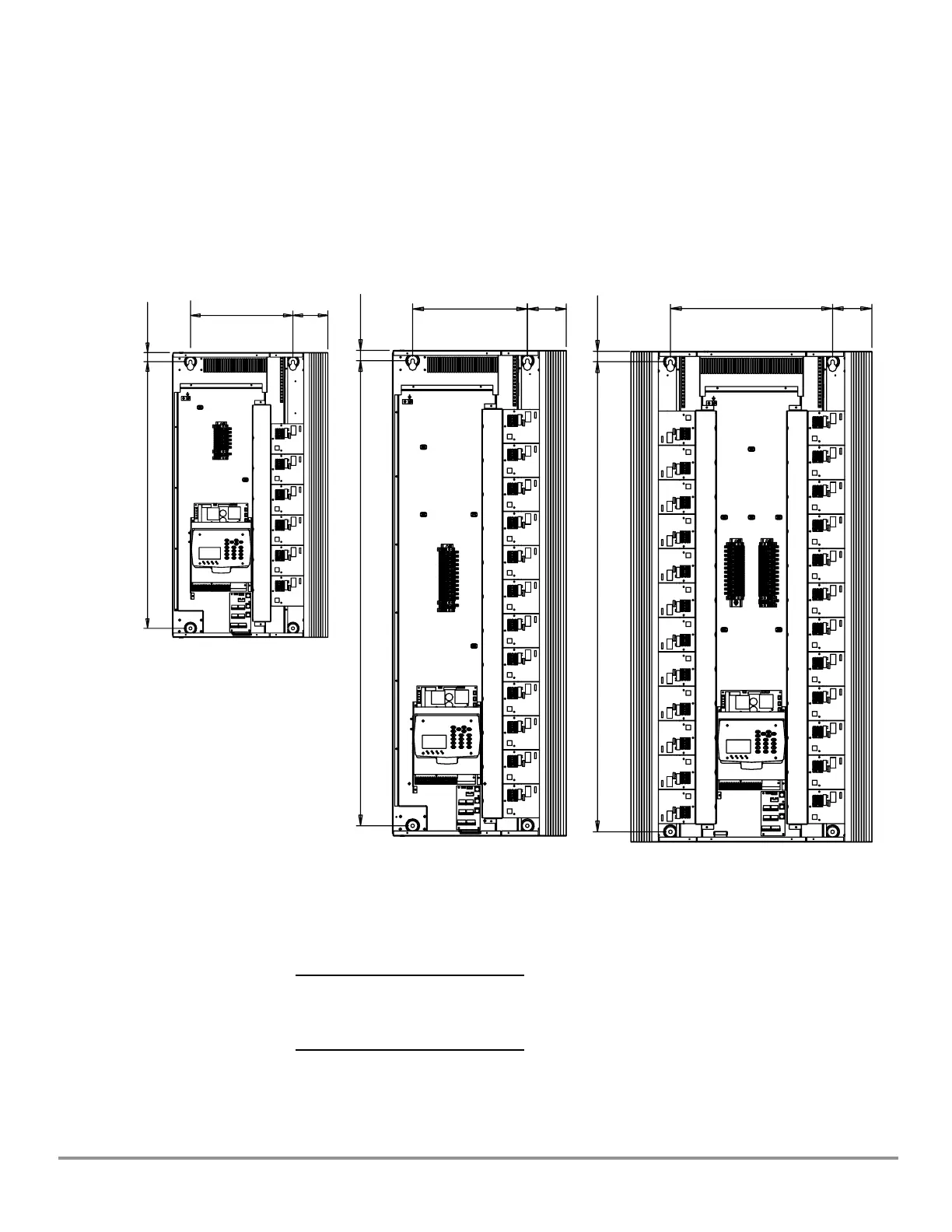

Mounting Holes
All models within the Universal Source Controller range are
NEMA Type 1 IP20 rated for indoor use only. Four mounting
holes are provided within the rear of each chassis for
attachment to a suitable wall.
Ensure that the mounting wall is able to safely support
the weight of the unit plus all wiring hardware and that it
complies with local codes. Reinforce where necessary.
Ensure also that the mounting bolts and fixings used are of
sufficient strength and quality to safely hold the unit.
1.2 in. (30
mm)
1.2 in. (30
mm)
1.2 in. (30
mm)
34.8 in. (885
mm)
54.32 in. (1379.8
mm)
54.32 in. (1379.8
mm)
13.4 in. (340
mm)
13.4 in. (340
mm)
18.73 in. (475.8
mm)
4.6 in. (116
mm)
4.6 in. (116
mm)
4.6 in. (116
mm)
ote: N The mounting holes (for
all models) have diam-
eters of 0.41 in (10.5 mm).
Standard Weights
Cabinet Unpacked Weight
6 Circuit 88 lbs (40 Kg)
12 Circuit 132 lbs (60 Kg)
24 Circuit 200 lbs (90 Kg)
6 Circuit Models
12 Circuit Models 24 Circuit Models
Universal Source Controller - Feed Thru WaveLinx Wired
9850-000234-02 page 7
May 2024
