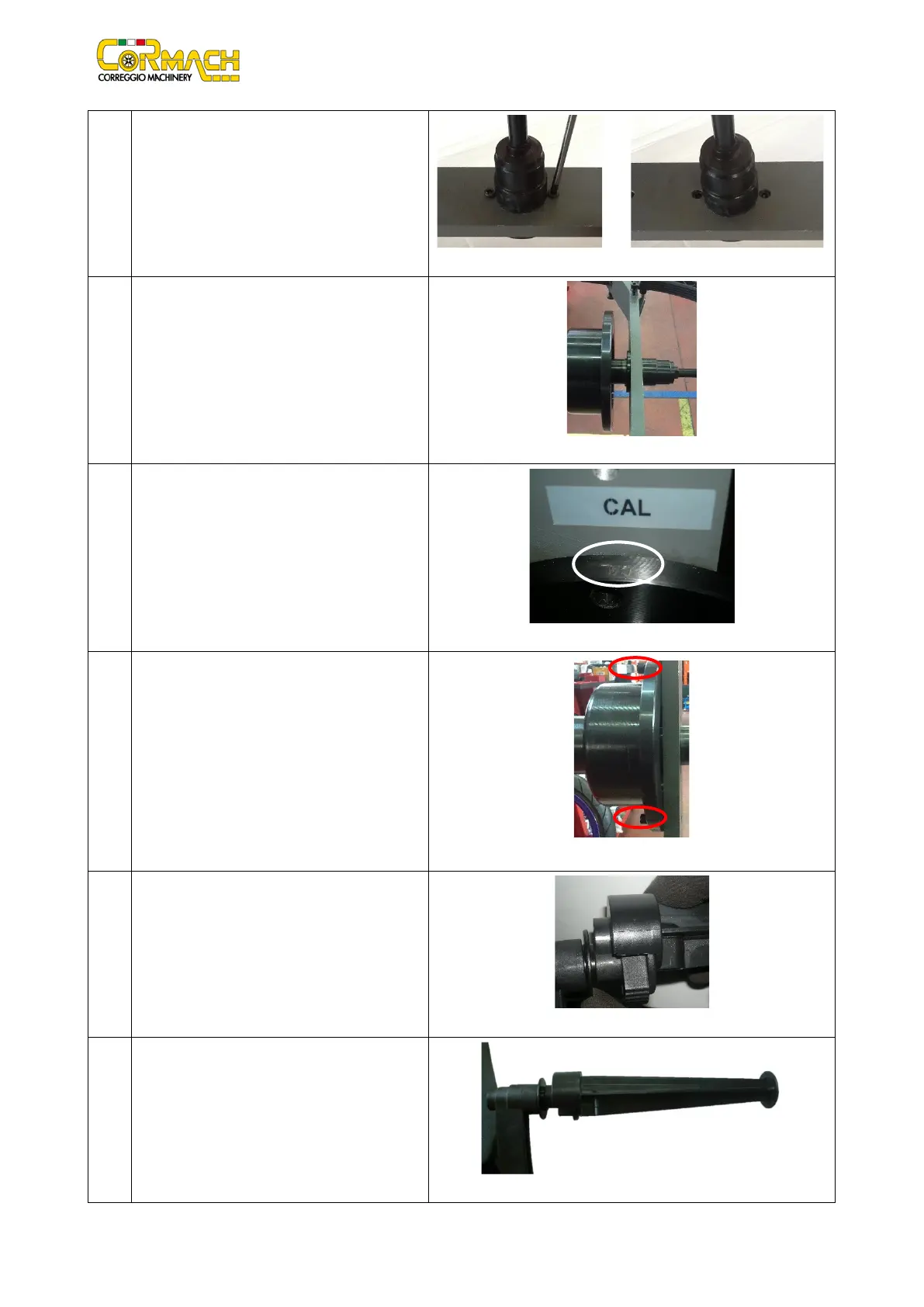

030 Tighten the screws to secure the pin (Fig. F6.14
and Fig. F6.15).
Figure F 6.14 Figure F6.15
040 Mount the motorcycle flange in the mechanical
unit of the wheel balance as showed in figure
F6.16.
Figure F6.16
050 The motorcycle adaptor must be mounted in the
way that the written CAL on the flange shaft and
on the motorcycle adaptor are matching and
aligned.
Figure F6.17
060 With the motorcycle adaptor leant on the shaft
tighten it with n. 2 screws supplied (Figure F6.18).
Figure F6.18
070 Mount the extension on the sensor as showed in
in figure F6.19.
Figure F6.19
080 Fit the extension on the sensor as showed in
figure F6.20.
Figure F6.20
