Use and maintenance manual – 10/2016 Rev. 3 Page 16
080

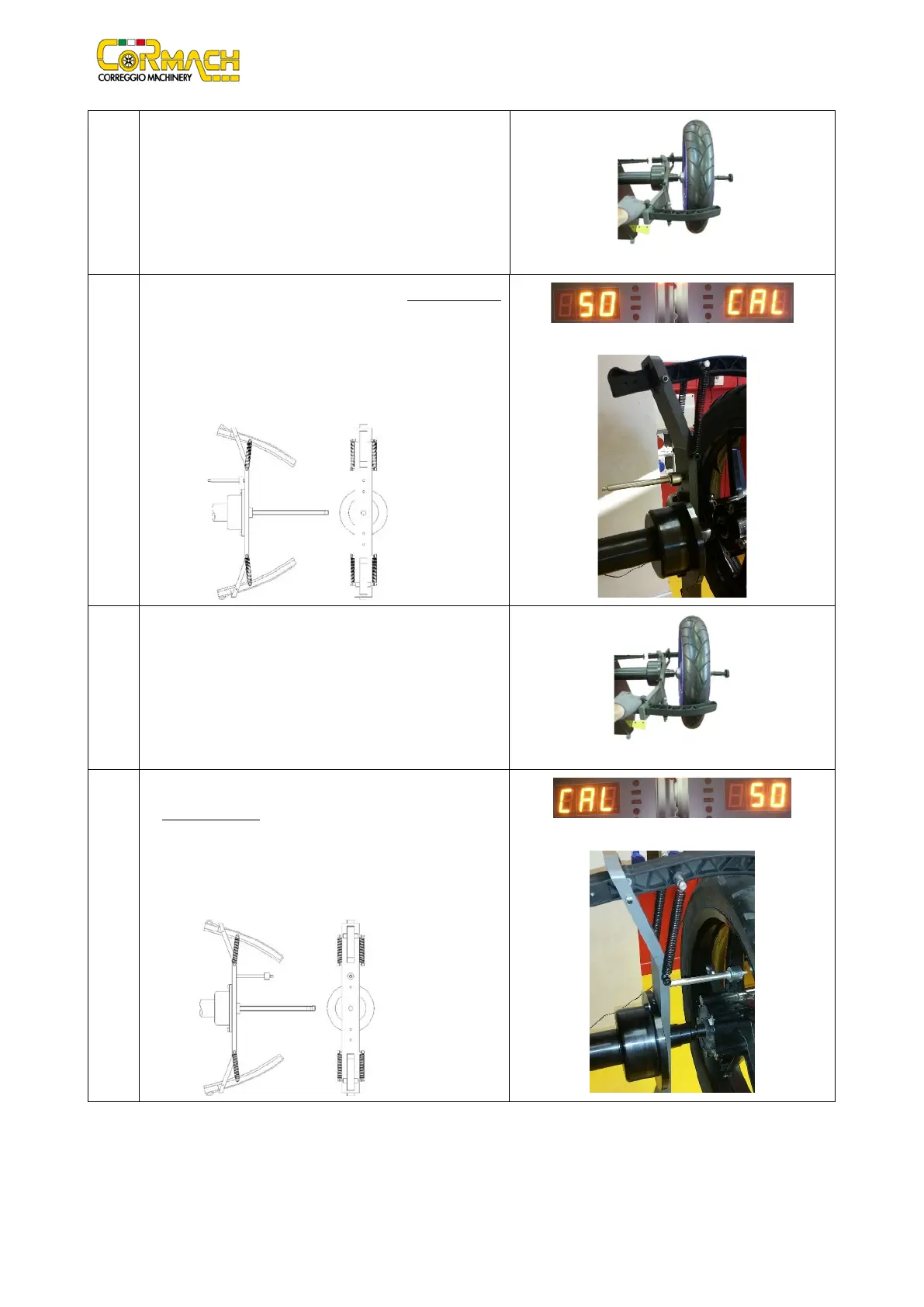

Rotate manually the motorcycle flange so that the
wheel will turn counterclockwise.
090 After the launch put the MOTO flange in the vertical position
and the display shows the message on the side, apply the
calibration weight on the inside as shown in figure F14.2. The
calibration weight is applied on the hole that has stamped the
"CAL" indication with the calibration weight in the upper part
as seen in Figure F14.2.
Figure F14.2
100
Rotate manually the motorcycle flange so that the
wheel will turn counterclockwise.
110 At the end of the spin, move the motorcycle adaptor in
a vertical position
until the display show the written as
indicate a side, apply the calibration weight on the external
side as showed in figure F14.3. The calibration weight must be
applied in the hole marked “CAL” and with the calibration
weight in upper part as showed in figure F14.3.
Figure F14.3
