IntelliCarb Drop-In Ice Cooled Installation Guide
Publication Number: 630460204INS - 32 - © 2003-2017, Cornelius Inc.

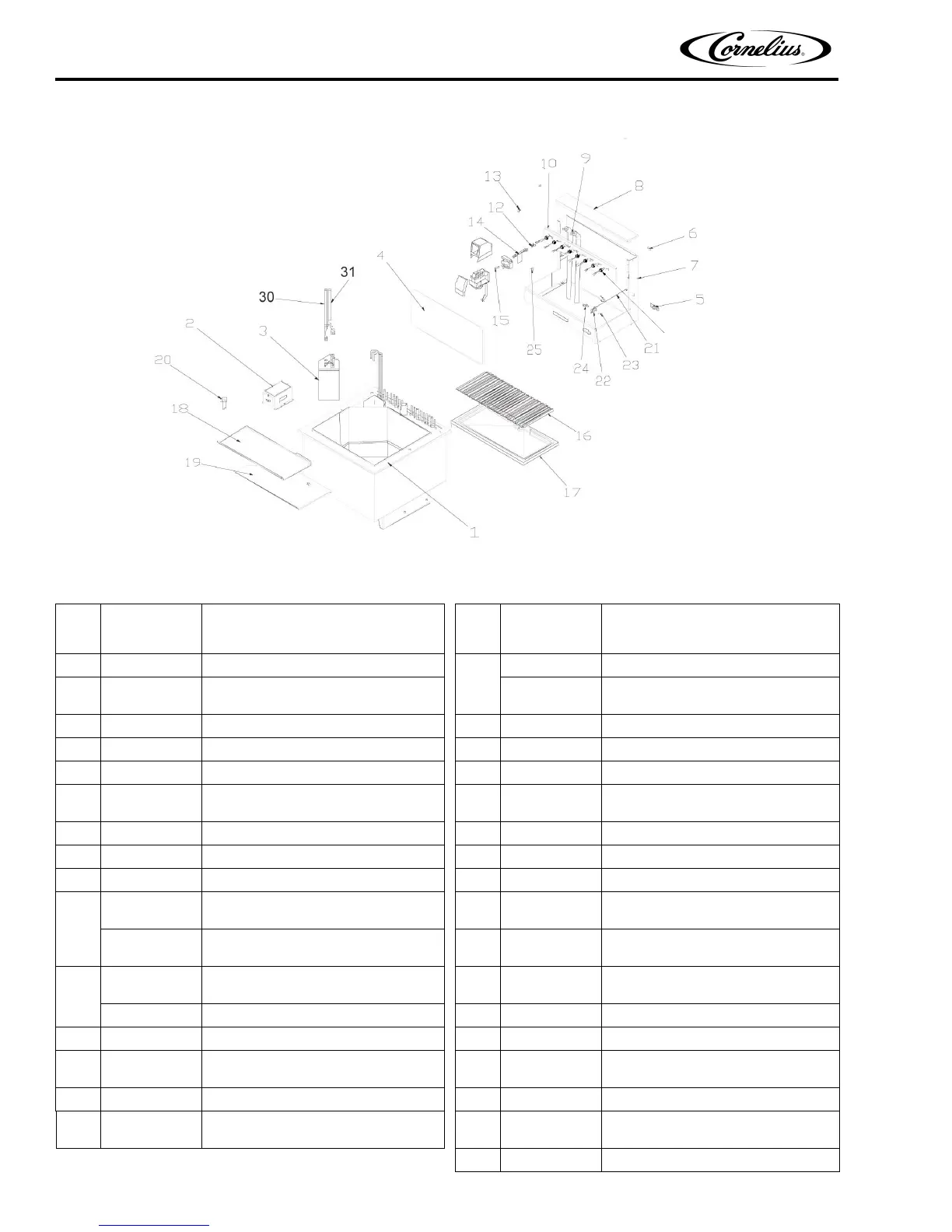

CB 2323 INTELLICARB STAINLESS TOWER 80LB WITH 8 X 4 CARBONATOR
Figure 25.
Item
No.
Part No. Name
Item
No.
Part No. Name
1 630201423 Decorative Frame
16
630900042 Cup Rest, Grille (Opti-Fil)
2 630000601
Transformer Ass’y, 115/24V RMT
75V
167787002 Cup Rest (Standard)
3 630001124 Carbonator (8 X 4) 17 630150005 Drip Tray
4 167491003 Panel, Splash 18 630001129 Plate, Sanitary
5 163545001 Switch, Key Lock 19 630200832 Lid, Sliding
6 161168014
Machine Screw, Phil Truss Hd.,
No. 10-32 By 3/8-In. Long
20 162865010 Strainer
7 630000631 Tower 21 630300357 Lead Wire, Black)
8 167244007 Cap, Tower 22 167570001 Switch, Valve Lockout
9 630000936 Hose,.265 I.D. 23 21633 Hex Nut, No. 4-40
10
630201561 Panel Valve, 6-Flavor 24 21632
Machine Screw, Rd Hd, No. 4-40
By 3/4-In. Long
630201551 Panel Valve, 8-Flavor 25 168745001
Machine Screw, 1/4-20 By 1/2-In.
Long
11
630300344 Wire Harness, 6-Flavor 26 630300341
Wire Harness, Power Supply to
Tower
630300345 Wire Harness, 8-Flavor 27 41710 Fitting, 3/4-MPT By 3/4-Barb
12 163518000 Connector, 2 Circuit 28 161508006 Fitting, 3/4-FPT By 3/4-Barb
13 168462000 Button Plug 29 629087457
Pump and Motor with Double Check
Valve
14 630300373 Wire Harness (Opti-Fil Valves only) 30 630000952 Hose Ass’y, Carb to Cold Plate
15 318308000
Thread Rolling Screw, Phil Pan Hd.,
No. 10-32 By 1-In. Long
31 630000951 Hose Ass’y, Carb to Cold Plate
32 164510003 Bushing Snap H 250 ID X 312
