IntelliCarb Drop-In Ice Cooled Installation Guide
© 2003-2017, Cornelius Inc. - 33 - Publication Number: 630460204INS

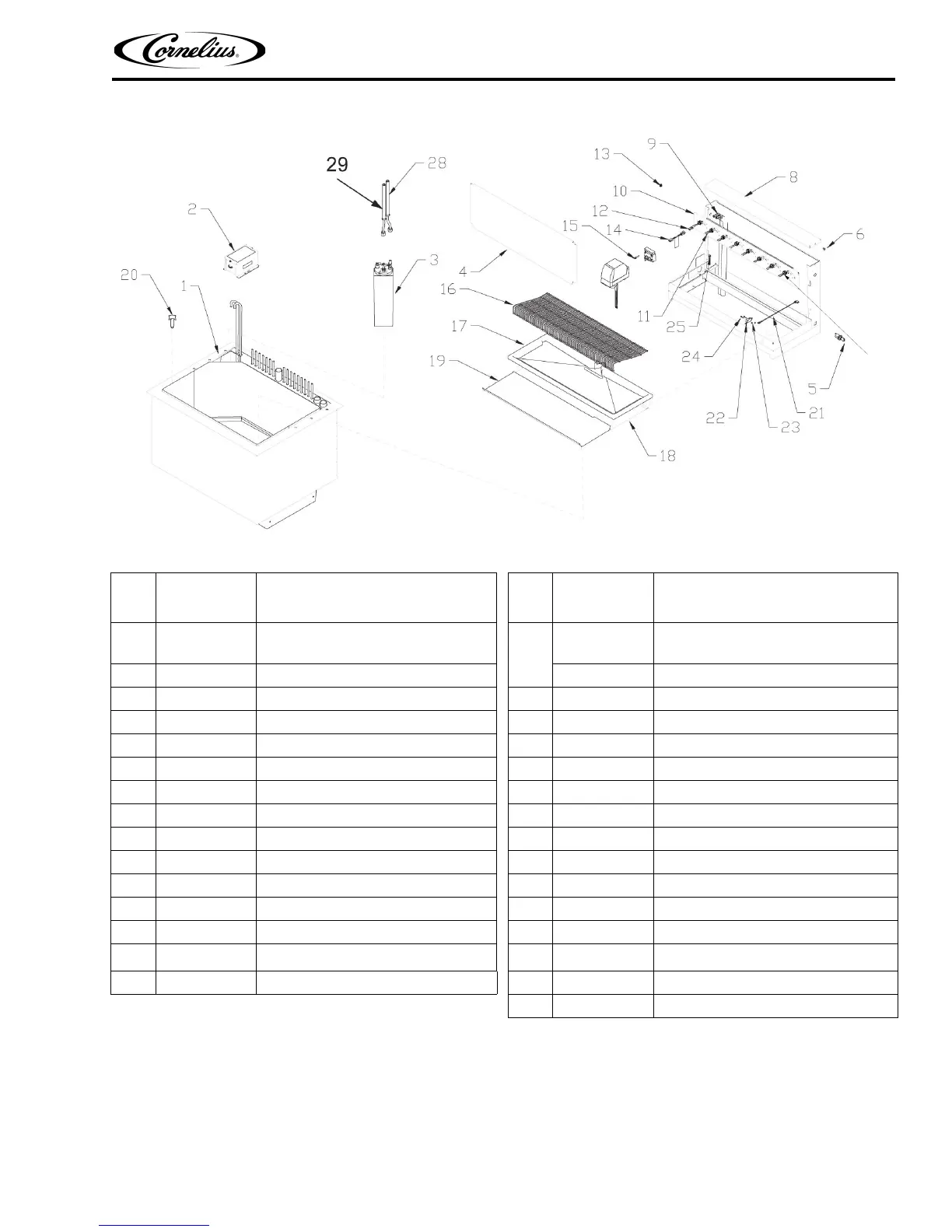

CB 3023 INTELLICARB STAINLESS TOWER 130LB WITH 12 X 4 CARBONATOR
Figure 26.
Item
No.
Part No. Name
Item
No.
Part No. Name
1 630201420 Frame Dec CB3023
16
167787013
Cup-Rest CB3023 Opti (Opti-Fill
TM
only)
2 630000601 Transfrmr 115/24 RMT 75VA 167787007 Cup-Rest 3023SST STND
3 630001125 Carbonator Tank Assy 17 167481019 Drip-Tray 30” TWR BLK
4 167491009 Splashguard Panl 30” SST 18 630000658 Plate Sanitary W/A 30” IntelliCarb
5 163545001 Switch Key-Lock Termi 19 630200933 Lid SLI 3023 IntelliCarb
6 161168014 Screw Ma 1032 012TR SS PH 20 162865010 Strainer Corner Drain W/A
7 630000993 Tower W/A 30” SS 21 630300357 Lead Wire 22” BK 20G2 187-250
8 167244011 Cover TWR 30” SS TWR 22 167570001 Switch Val Lock-Out
9 630000936 Hose 0.265F 16” 23 21633 Nut Hex 04-40 STZI
10 630001123 Panel Val CB3023 W/A 24 21632 Screw MA 04-40 RD 24 STZI
11 630300345 Harn Wire 8VLV 2CR 2.56SPC 25 168745001 Bolt MA 1/4-20 HX 16 STZI
12 163518000 Conn Elec Mate-N-Lok 2CR 26 630300341 Harn Wire TWR 96” 2CR 25R
13 168462002 Plug-Butn 1/2 Hole STNI SWC 27 629087457 Pump Asy Mtr
14 630300373
Harn Wire Jumper (Opti-Fill
TM
only)
28 630001001 Hose Asy Carb to C-Plt S-Tube
15 318308000 Screw TR 10-32 PAPH 32 SS HRD 29 630001006 Hose Insulation
30 164510003 Bushing Snap H 250 ID X 312
