Standard Recommended Procedure 003-794-AEN | Issue 14 | March 2020 | Page 24 of 27
6. Troubleshooting and Maintenance
6.1 Testing
Use the Fluke MultiFiber™ Pro Optical Power Meter and Test Kits for testing the MTP
®
connections. Follow the
Fluke Networks manual which can be found on-line at
http://download.ukenetworks.com/Download/Asset/MultiFiberPro_9827313_ENG_A_W.PDF.
A sample test procedure can be seen in Figure 31.

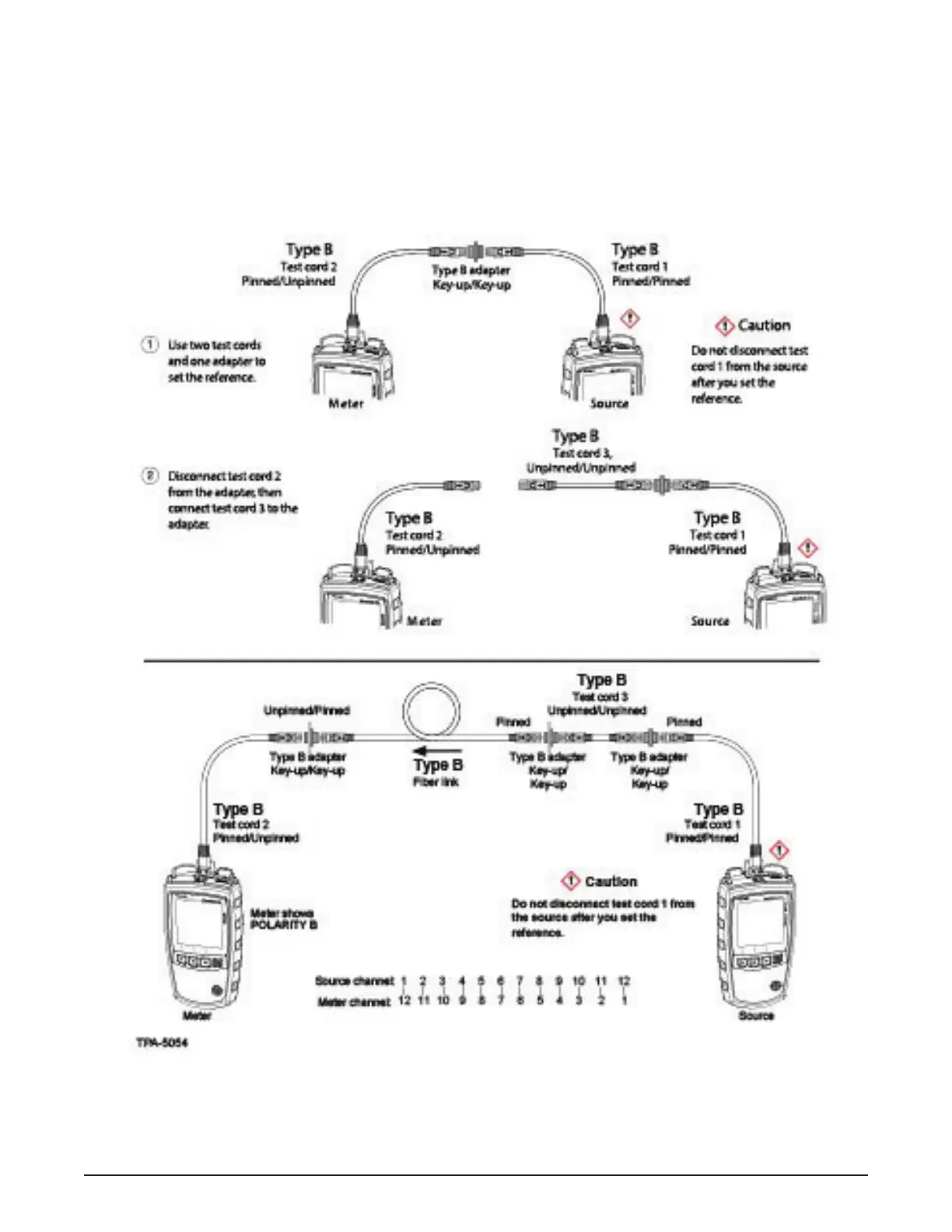

* Figure 31 — Testing MTP Connectors
*Figure 31 provided by Fluke Corporation and used with their permission.
