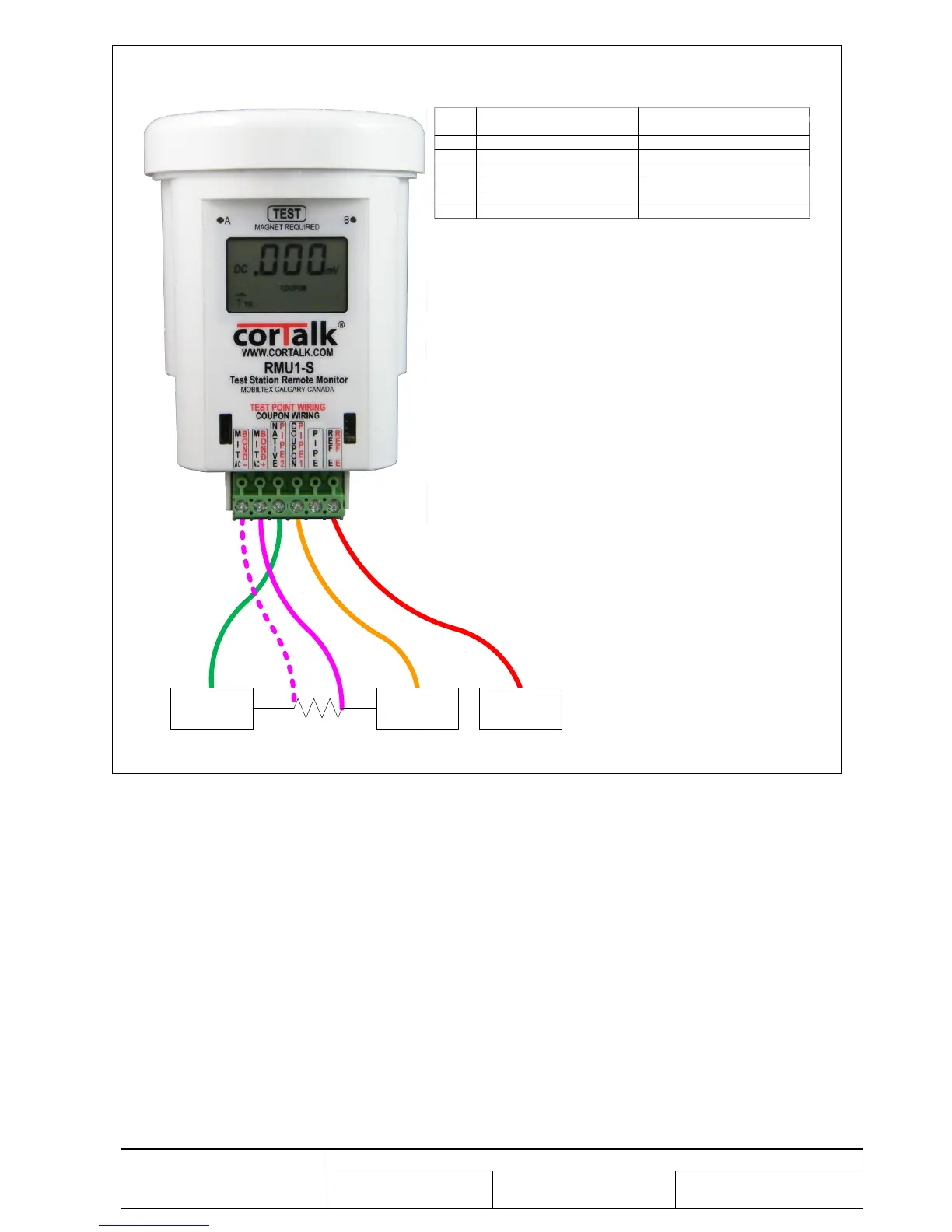

Cortalk RMU1 - Figure 11 Test Point Wiring Diagram (TP37)

MOBILTEX® DATA LTD.
Calgary, Alberta
www.corTalk.com
TITLE: RMU1 Installation and Configuration Guide
DOCUMENT NO.:
RMU1-MAN-001
SHEET:
20 of 53
REV:
1.14
RMU1 Test Point
Structure #1Structure #2
Reference
Cell
Bond
DATA
SLOT
DESCRIPTION
1 P/S1 DC Potential
2
3
4
P/S1 AC Potential
P/S2 DC Potential
P/S2 AC Potential
5
6
DC Current
AC Current
LCD ICONS
P/S1 DC VOLTS
P/S1 AC VOLTS
P/S2 DC VOLTS
P/S2 AC VOLTS
DC A
AC A
Figure 11 Test Point Wiring Diagram (TP37)
