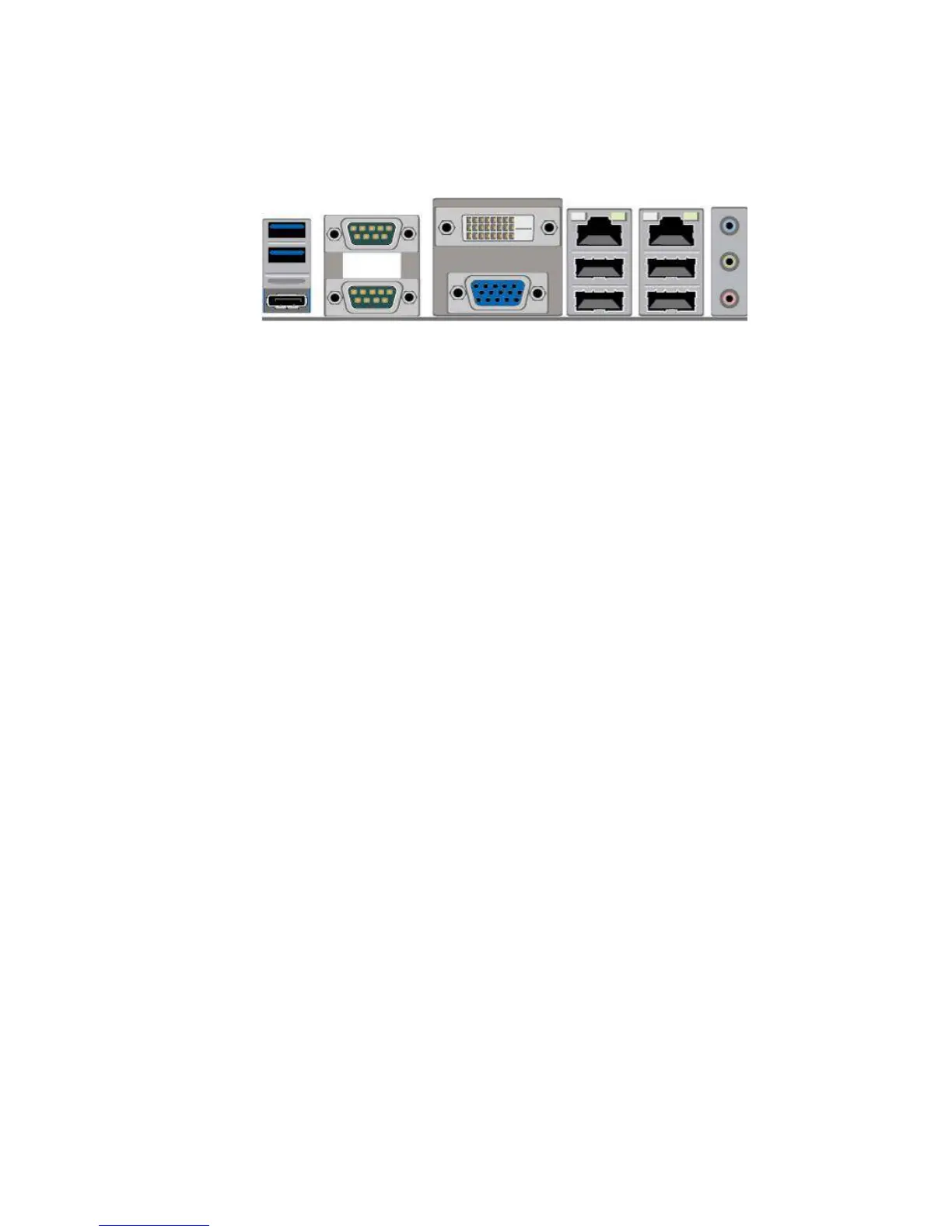

Back Panel Connections
A B C D E F
G H I
A – USB3.0 connectors
Standard dual USB3.0 connector.
B – COM1 Connector (DB9M)
C – DVI-D
D – NIC2 and USB
Stacked RJ45 and USB.
E – NIC1 and USB
Stacked RJ45 and USB.
F – AUDIO Stack
Line-in, Speaker and Microphone Audio stack
G – Displayport
H – COM2 Connector (DB9M)
I – VGA Connector
Standard DB15F. Supports Analog Monitors
