33
Connectors

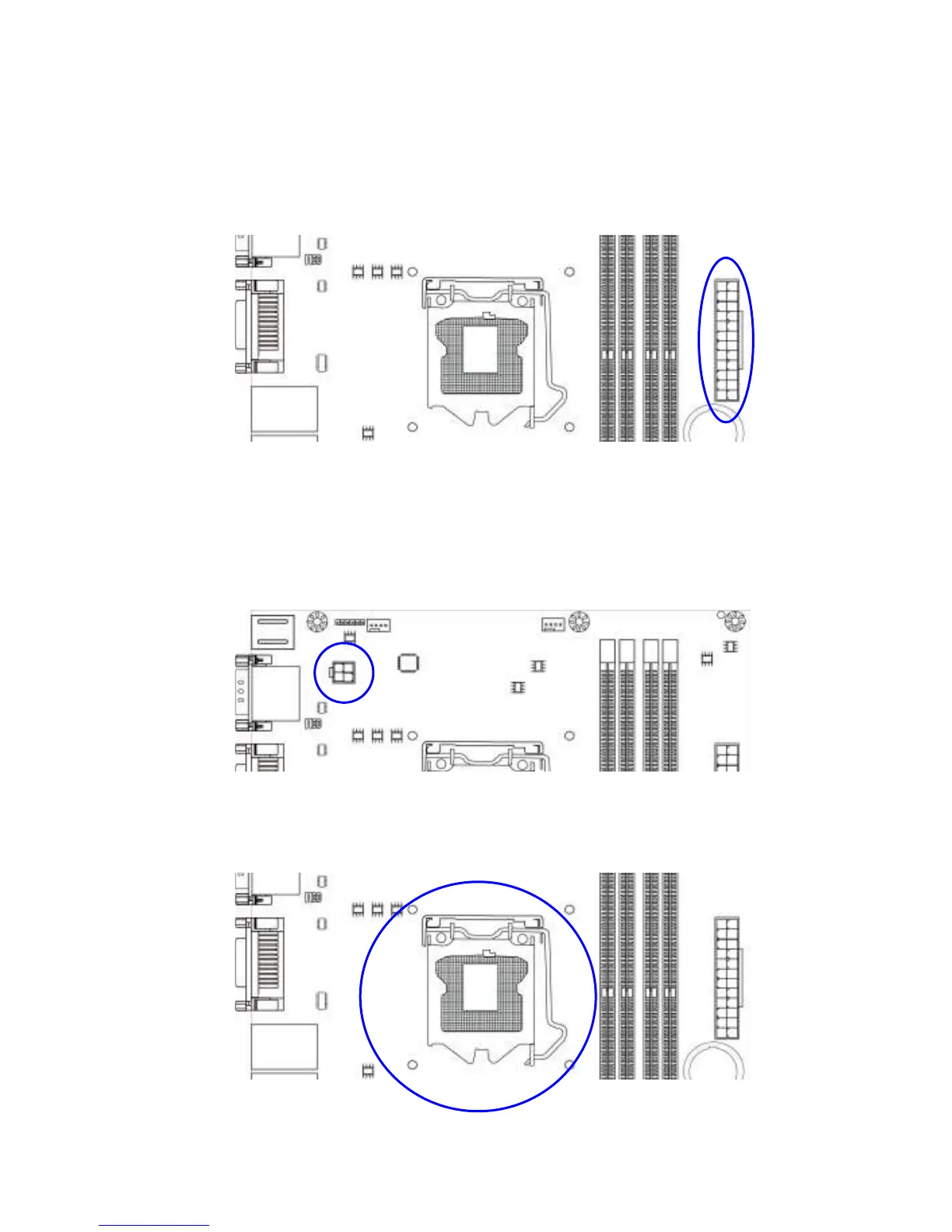

ATXPWR: ATX Power Connector
Connect the power supply to the 24 pin ATX Power Connector
ATX12V: ATX 12V Connector
CPU: Processor Socket
