NOTE:
• Align notches in burner caps with pins in burner base.
• Make sure the hole in the burner base is positioned over the igniter.
• Burner caps should be level when properly positioned. If burner
caps are not properly positioned, surface burners will not light.
• The burner cap should not rock or wobble when properly aligned.
3. Place burner grates over burners bases and caps.
4. For COS-GRP486G (48") only:
(Optional) Place the griddle over one of the burner grates.
Standard
burners
Double-ring
burners
Cap
Base
Orifice
holder
Correctly positioned
Incorrectly positioned

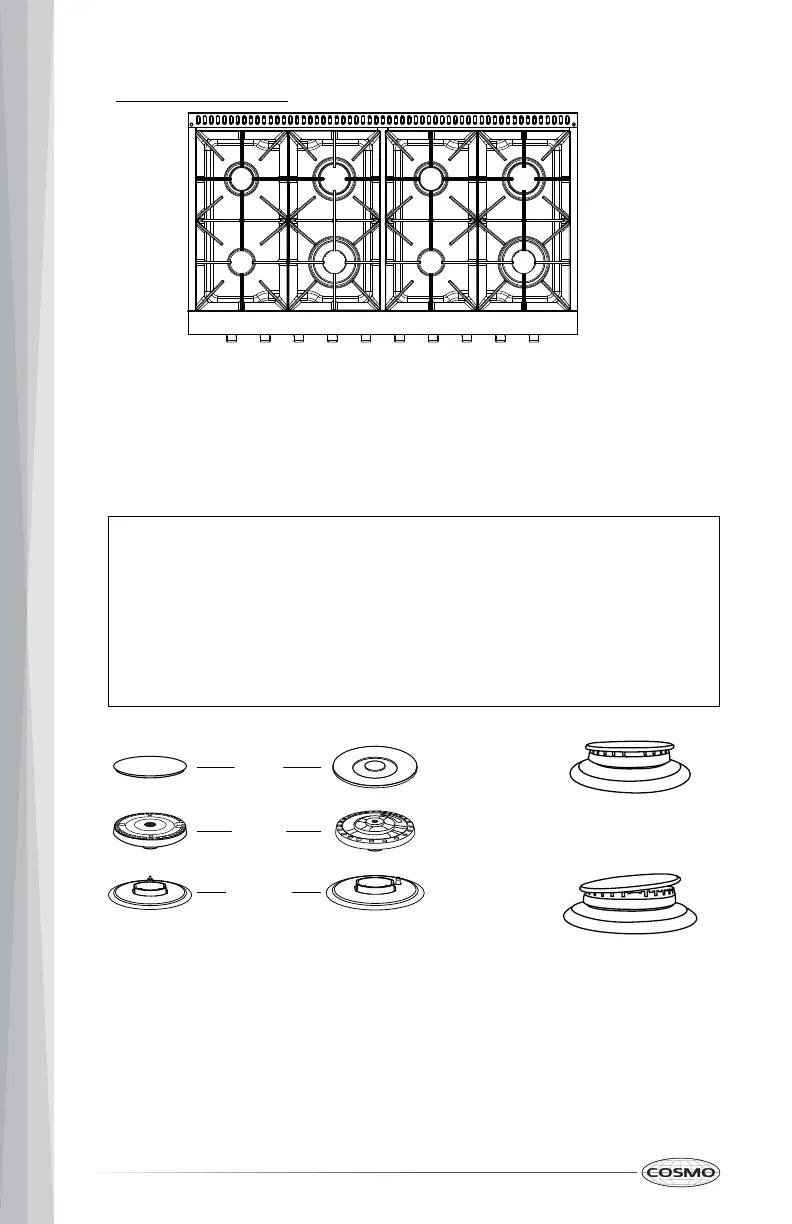

COS-GRP486G (48")
A. Auxiliary (Small)
B. Double Ring (X-Large)
C. Auxiliary (Small)
D. Double Ring (X-Large)
E. Semi Rapid (Medium)
F. Rapid (Large)
G.Semi Rapid (Medium)
H. Rapid (Large)
A B C D
E F G H
