Converting Bake Burner
1. Remove the screws between the
kick plate and the oven door.
2. Slowly pull away and remove the
kick plate.
3. Remove the two screws from the
bracket of the bake orifice
holder.
4. Locate the bake orifice holder
behind the bracket. Use a 3/8"
(9.5 mm) combination wrench
and turn the bake orifice
counterclockwise to remove.
5. Replace the bake orifice with the
correct fuel type orifices. Gas
orifices are stamped with a size
number. Refer to the orifice chart
earlier for correct Natural gas
and LP gas orifice sizes.
6. Place the bake orifice holder
back in the air shutter, and
replace the two screws on the
bracket.
7. Reattach the kick plate with the
screws.

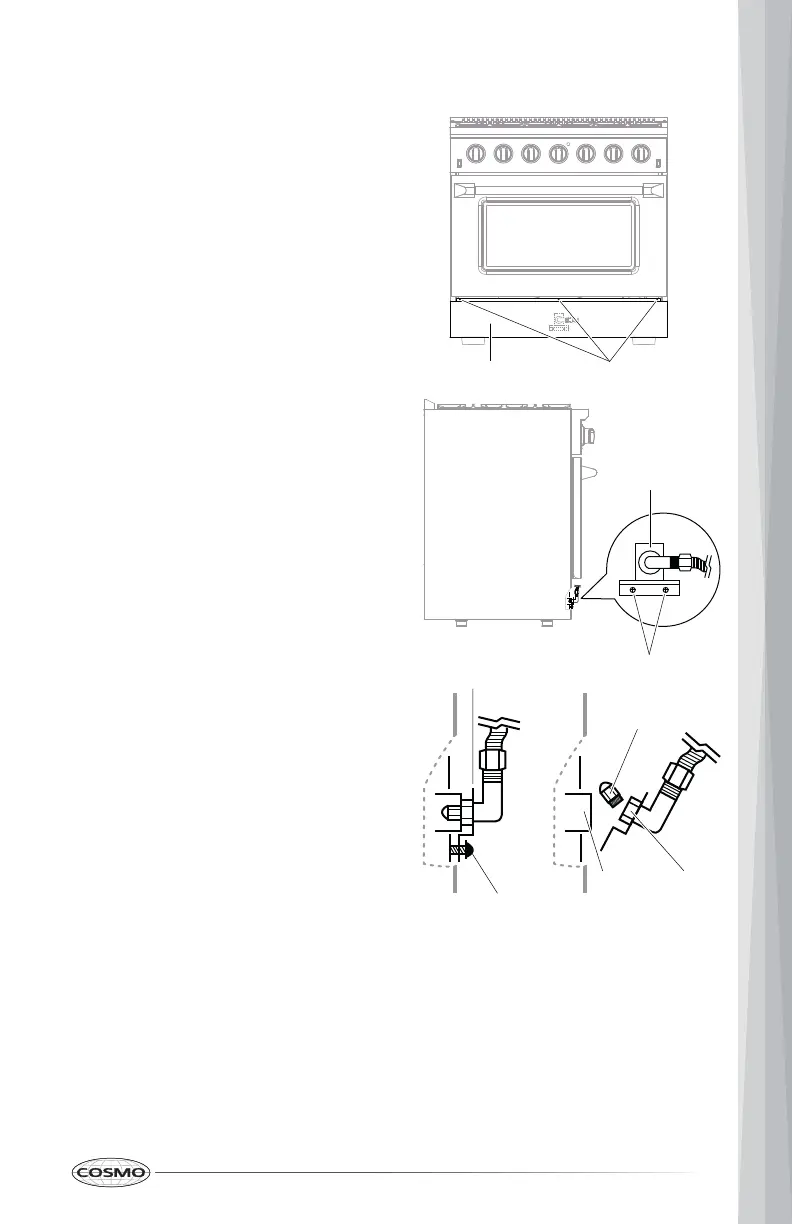

Kick plate
Screws
Bracket
Screws
Orifice
holder
Orifice
Screws
Bracket
Air
shutter
