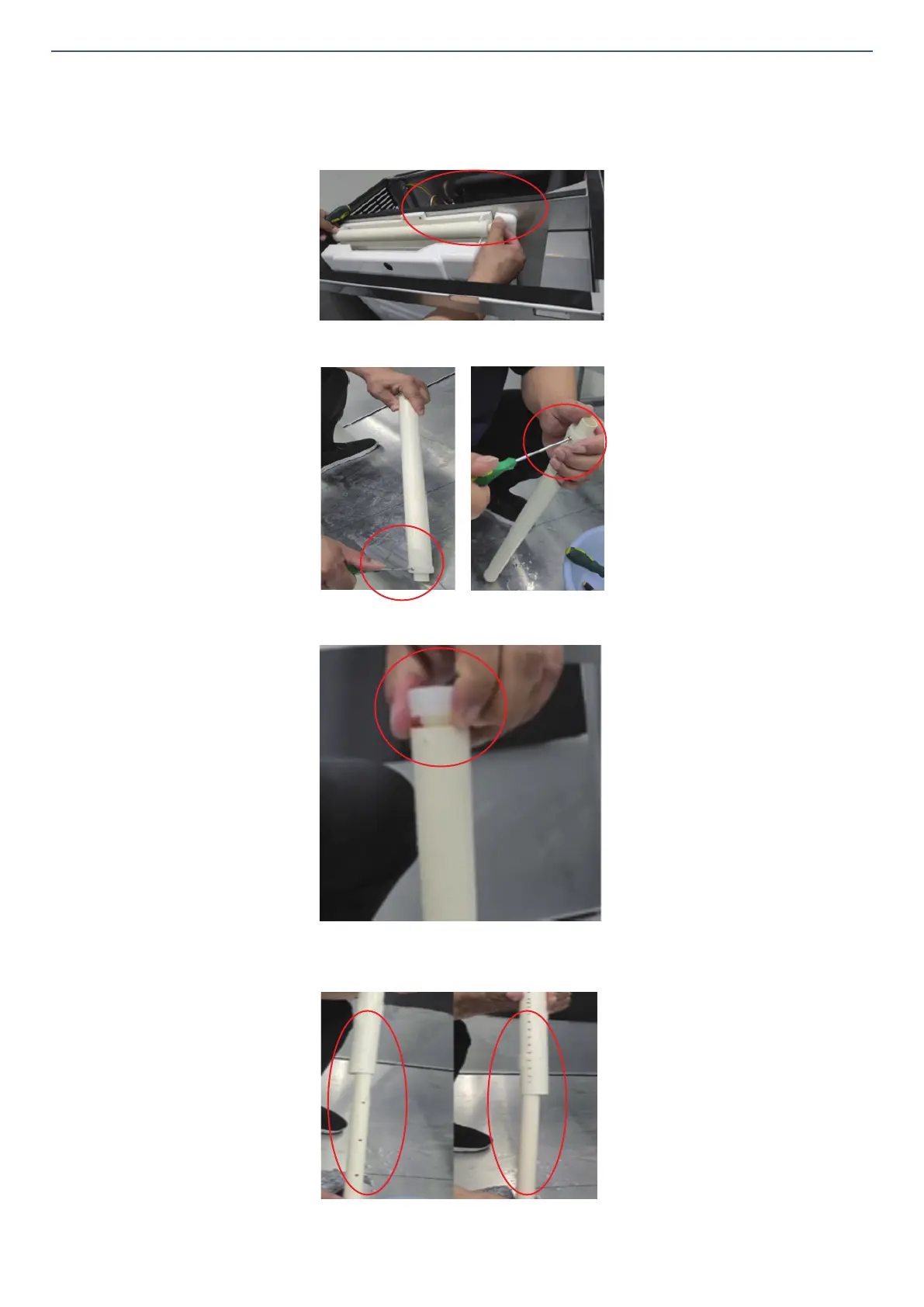

Unplug pipe
 Remove two screws
 Spin out the plastic cover and remove the plastic mandrel
Note: when the pipe is assembled, the hole position of the pipe should be opposite to that of the
m
andrel, and must not be in the same direction. The correct diagram is as follows：
