Cover Pools Save-T 3 - Recessed Housing for Autosave Track

All diagrams are for general information. Consult installation instructions for details.
8

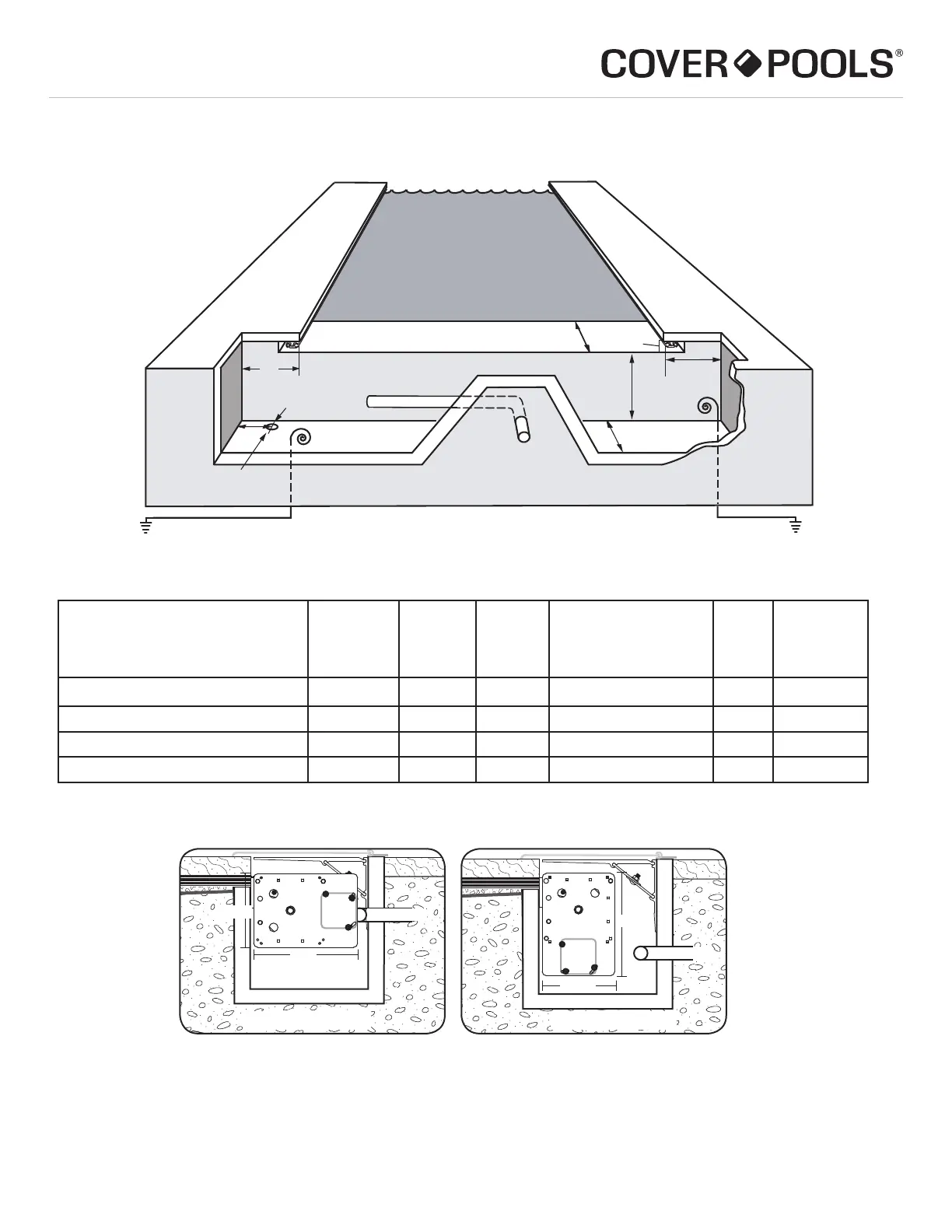

Recessed Concrete, Wood, or UPB Box—Autosave
OPTION 1: Conduit comes from back of box.
Underside Track
Box Dimensions For Autosave™
Up to 13' or
200 square feet
Motor
M
Opposite
O
Beam
B
Throat
T
Depth
D
Width
W
Motor Behind 9" min 9" min 10" min 1" to Finished Beam 9"min 12-1/2" min
w/ Auto-Shutoff 14-1/2" min 9" min 10" min 1" to Finished Beam 9"min 12-1/2" min
Motor Below 12-1/2" min 9" min 10" min 1" to Finished Beam 9"min 12-1/2" min
w/ Auto-Shutoff 12-1/2" min 9" min 10" min 1" to Finished Beam 9"min 14-1/2" min
Note: To avoid interference, run the conduit from the center of the box using flex conduit with 1/2" water tight connector.
POOL
recessed box wall
cut away for clarity
M
3" drain - floor or wall
can be on either end
D
B
T
W
pool beam wall
O
drain centerline 4"
max from end wall
bond wire to bonding grid (route so that cover will not rub or catch or interfere with mechanism)
Conduit comes from
center of the housing
MTR
12"
8-1/2"
Conduit
12"
8-1/2"
Conduit
MTR
MTR
12"
8-1/2"
Conduit
12"
8-1/2"
Conduit
MTR
Motor Behind Motor Below
Side View
Consult a certied electrician and the pre-wiring diagrams for conduit and bonding requirements.
