Cover Pools Save-T 3 - Auto-Shutoff and Control Systems

All diagrams are for general information. Consult installation instructions for details.
6

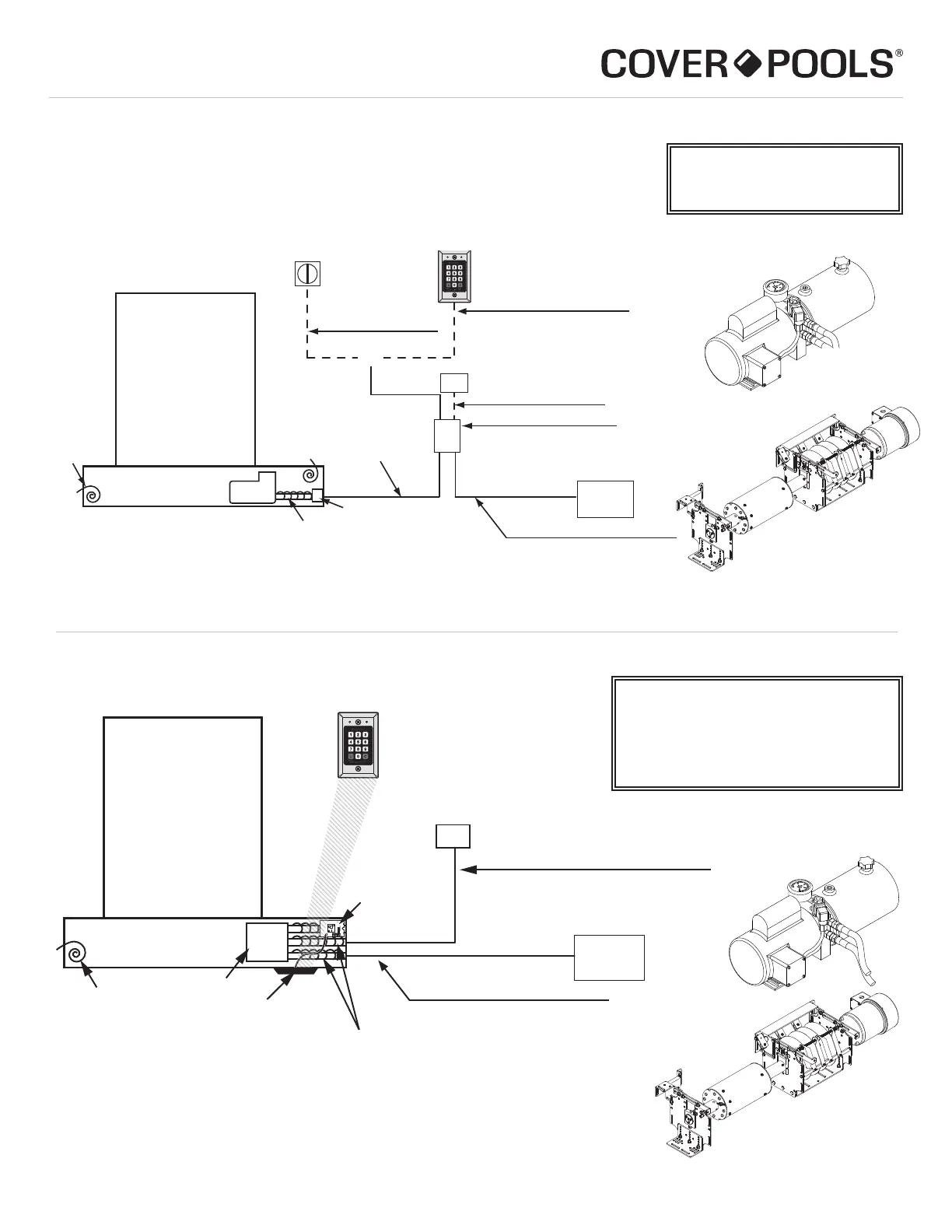

Auto-Shutoff with Optional Accessory Board/AquaLink
®
¾ hp Motor or Hydraulic Motor
Auto-Shutoff with Accessory Board/ AquaLink
®
and Wireless
(Optional) -- ¾ hp Motor or Hydraulic Motor
All control pads must be mounted in
full view of the cover operation. Install
the accessory board in or by the
equipment room or equipment pad,
away from the cover housing.
050275 or 050276
Hydraulic Pump Unit
All switches/control pads must
be mounted in full view of the
cover operation.
electric 3/4 hp motor
electric 3/4 hp motor
Hydraulic 1-1/2 hp motor
POOL
COVER HOUSING
Conduit with (3)
18 AWG Identified
Wires for Low
Voltage Key Switch
Option 1:
Key Switch 5v
Conduit for Main Power with (3)
14 AWG Identified Wires
(Hot, Neutral, Ground)
Conduit with (4)
14 AWG Wires
For Power and (3)
18 Awg for Sensors
Conduit with (4) 18 AWG Wires
J-box
#8 Bonding Wire
Both Ends
Conduit with (4) 18 AWG (min)
Identified Wires for CoverLink
Wired Control
Green
LED
Red
LED
Option 2:
CoverLink Wired Control
OR
Install auto-shutoff away from cover housing
in or by equipment room or equipment pad
AS
ACC
Dedicated
GFCI
14 AWG under 50ft
12 AWG over 50ft
Optional Accessory Board or AquaLink
36" of Waterproof Flex Conduit
with 1/2" NPT Water Tight
Connector, Extend (4) 14 AWG
Wires 8" Past Conduit End
MOTOR
Hydraulic motors
must be mounted
above ground level.
Option 1: Auto-shutoff mounted outside housing.
POOL
COVER HOUSING
36" of Waterproof Flex Conduit with 1/2"
NPT Watertight Connector for 14 Awg
Wire Extended 8" Past Conduit End
Conduit for Main Power with (3) 14 AWG
Identified Wires (Hot, Neutral, Ground)
Auto-shutoff
#8 Bonding Wire
(Both Sides)
Green
LED
Red
LED
CoverLink Wireless
Control Pad
Install acc board away from cover housing
in or by equipment room or equipment pad
Dedicated
GFCI
AS
ACC
14 AWG under 50ft
12 AWG over 50ft
Conduit with (4) 18 AWG Wires
Optional Accessory Board or AquaLink
Receiver
Antenna
CLEAR LINE OF RECEPTION
050275 or 050276
Hydraulic Pump Unit
Hydraulic motors
must be mounted
above ground level.
