All diagrams are for general information. Consult installation instructions for details.
11
Coping or Deck Requirements—Underside track
• All corners of the coping must be square
• Minimum 2" cantilever from tile
on side walls
• Minimum 3" cantilever from tile
on end wall opposite the mechanism

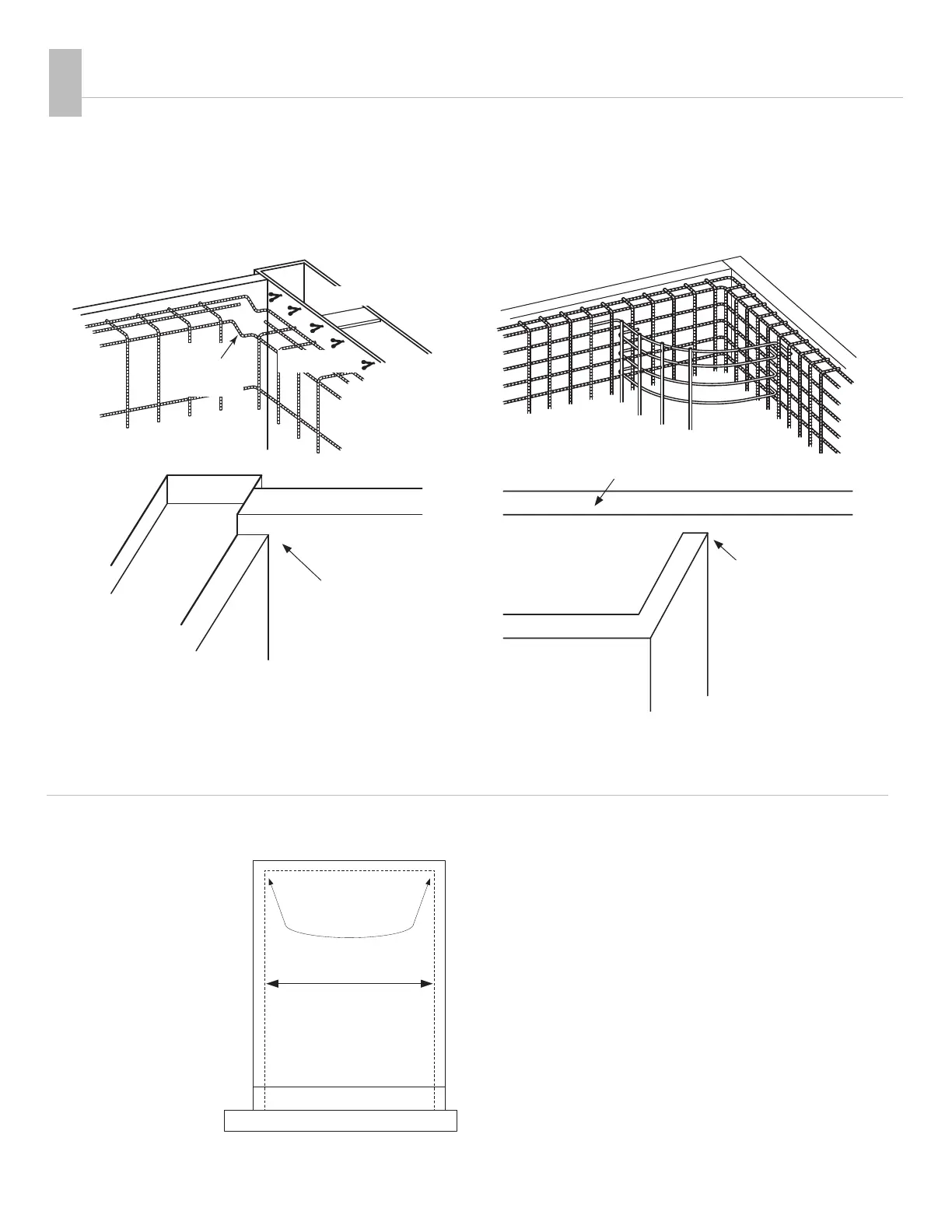

Gunite Layout—Underside™ track
At the recessed box end, the pool wall (bond beam)
must be shot 2½" (2" finished with tile) lower than
the side walls.
The top inside pool corners (above the waterline)
must be square, not radius.
Any interior wall, such as for spas, also must be gunited
2½" (2" finished with tile) lower than the side walls.
form
2½" lower
side wall
cover
box
bond
beam
top of side wall
2½" lower than
side wall
COPING AND DECK
Consider the requirements for coping and deck installation.
side wall
interior wall
form
form
brace
2" offset
in steel
16 d nails
no radius corners
2" cantilever sidewalls
lowered pool wall
motor
3" cantilever
