Cover Pools Save-T 3 - Recessed Box Cover; Brackets; Vanishing Lid System; Bezel Lids

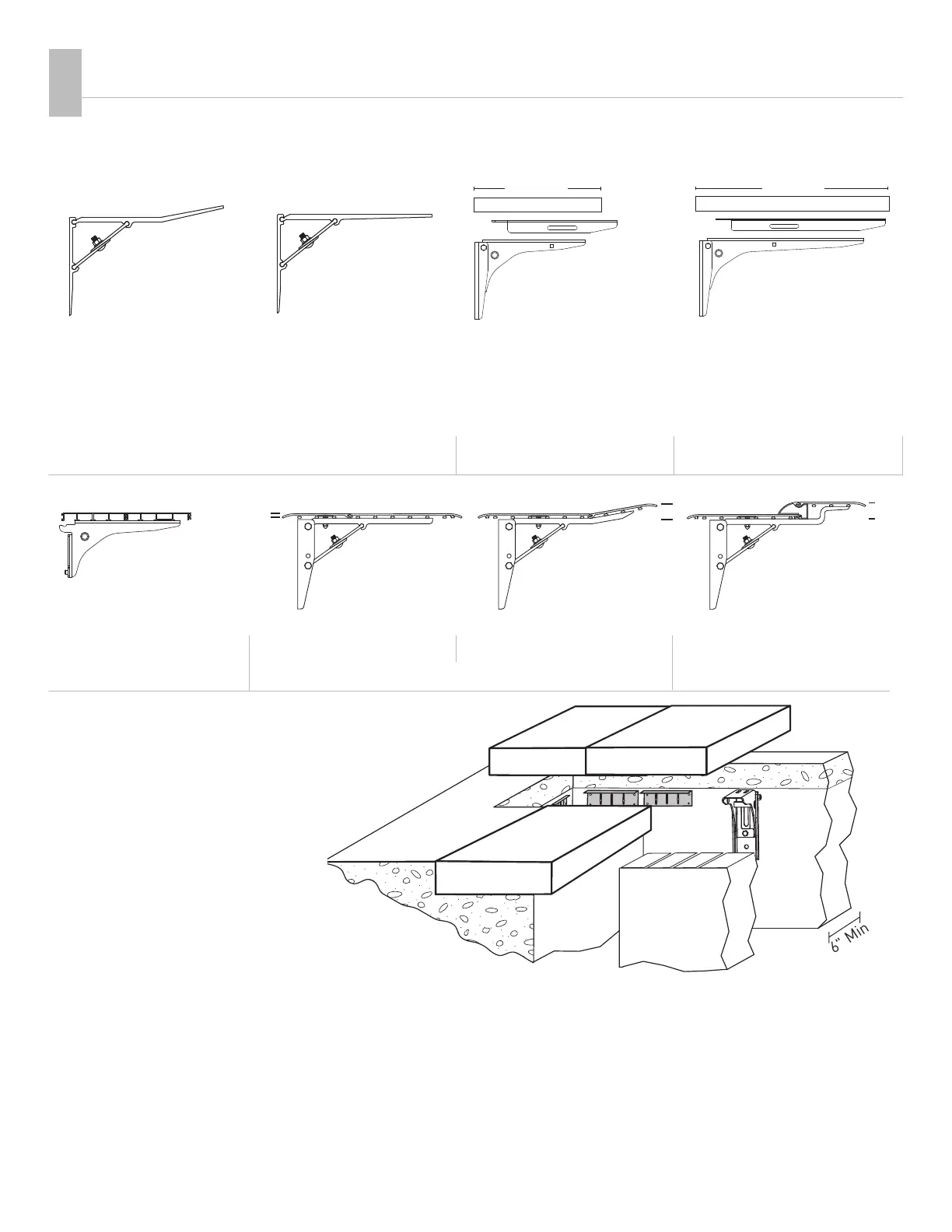

All diagrams are for general information. Consult installation instructions for details.
13
Vanishing Lid Adjustable 12"
Stainless-Steel Bracket
• For any tray less
than 18"
• Extensions 14½" & 17½"
available
Note: The deck thickness must be
increased for extended trays if the leading
edge is going to fit under the tray. Contact
Cover-Pools for more information.
The maximum width of any tray is 24".
The maximum length of tray is 24".
Walk-On Vanishing Lid
This design offers an adjustable tray support system for any type of
deck material. Stainless-steel or aluminum trays and stainless-steel
brackets provide the support base for a strong walk-on lid that can
blend with the surrounding deck.
Vanishing Lid Adjustable 18"
Stainless-Steel Bracket
• Maximum bracket
spacing is two feet
• For trays 18-24" wide
• Extensions 20½" & 23½"
available
Standard Aluminum Lid
Tilted Bracket
for Universal, Snaptop™,
and Flush Track
• Stepped or tilted anodized
aluminum lid available
with 4" or 6" hinge
Flush Mount Lid for vinyl
liner pools with UPB Box
NOTE:
Walk-on Vanishing Lid systems require a concrete housing,
or, if using a wood housing, a concrete wall must be poured
behind the box for anchoring brackets.
Brackets
Vanishing Lid
™
System
Bezel
™
lids
Flat Bezel Lid Tilted Bezel Lid Stepped Bezel Lid
RECESSED BOX COVER
Choose lid and brackets to cover recessed box.
Standard Aluminum Lid
Flat Bracket
for Underside
™
Track
• Standard anodized
aluminum lid available
with 4" or 6" hinge
18" max.
24" max.
tray or stone
tray or stone
3
/8"
1½
600104 ILLUS VANISHING LID CORNER BRACKET - DWG1.ai 600104 ILLUS VANISHING LID CORNER BRACKET - DWG1.ai
6
"
M
i
n
1½
6
Available in 16" or 18" width
Available in 16" width
with 16" or 18" ends
