Recessed Mechanism—Universal, SnapTop™, or Flush Track
The requirements of a recessed mechanism with a deck-mounted track are the same as the undertrack on the previous
page. Universal track may be mounted at the pool edge. Flush track must be set back 6" from the pool edge.
C D
A
B
Do not
locate track
on top of a
skimmer lid.
16"
36"
motor side
non-motor side
18"

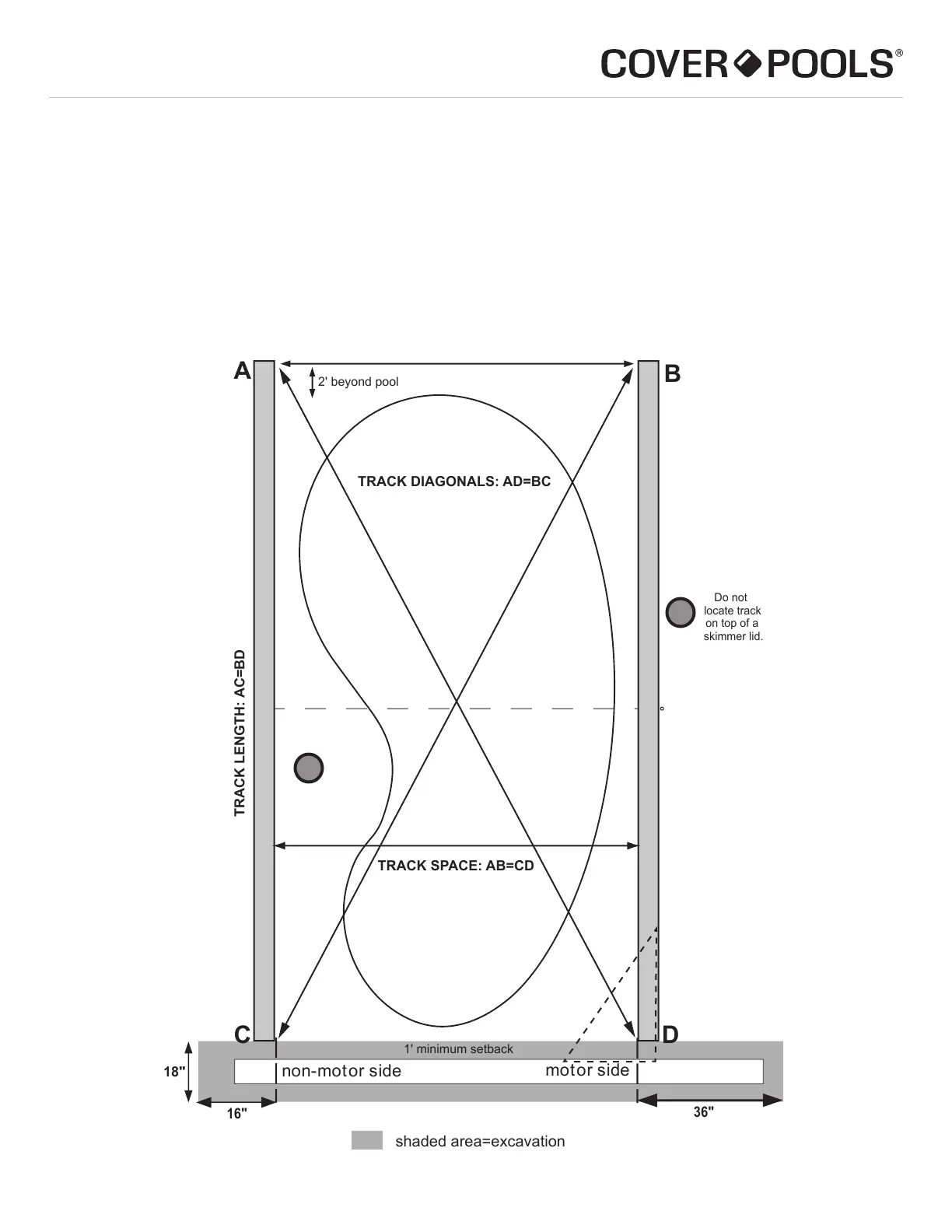

shaded area=excavation
TRACK DIAGONALS: AD=BC
TRACK LENGTH: AC=BD
TRACK SPACE: AB=CD
1' minimum setback
2' beyond pool
Tracks must be square:
AB=CD
AD=CB
E
G
F
Track squared to box
or mechanism
GE = 6'
GF = 8'
FE = 10'
