Cover Pools Save-T 3 - Tile Beam and Track Opening Requirements

All diagrams are for general information. Consult installation instructions for details.
12

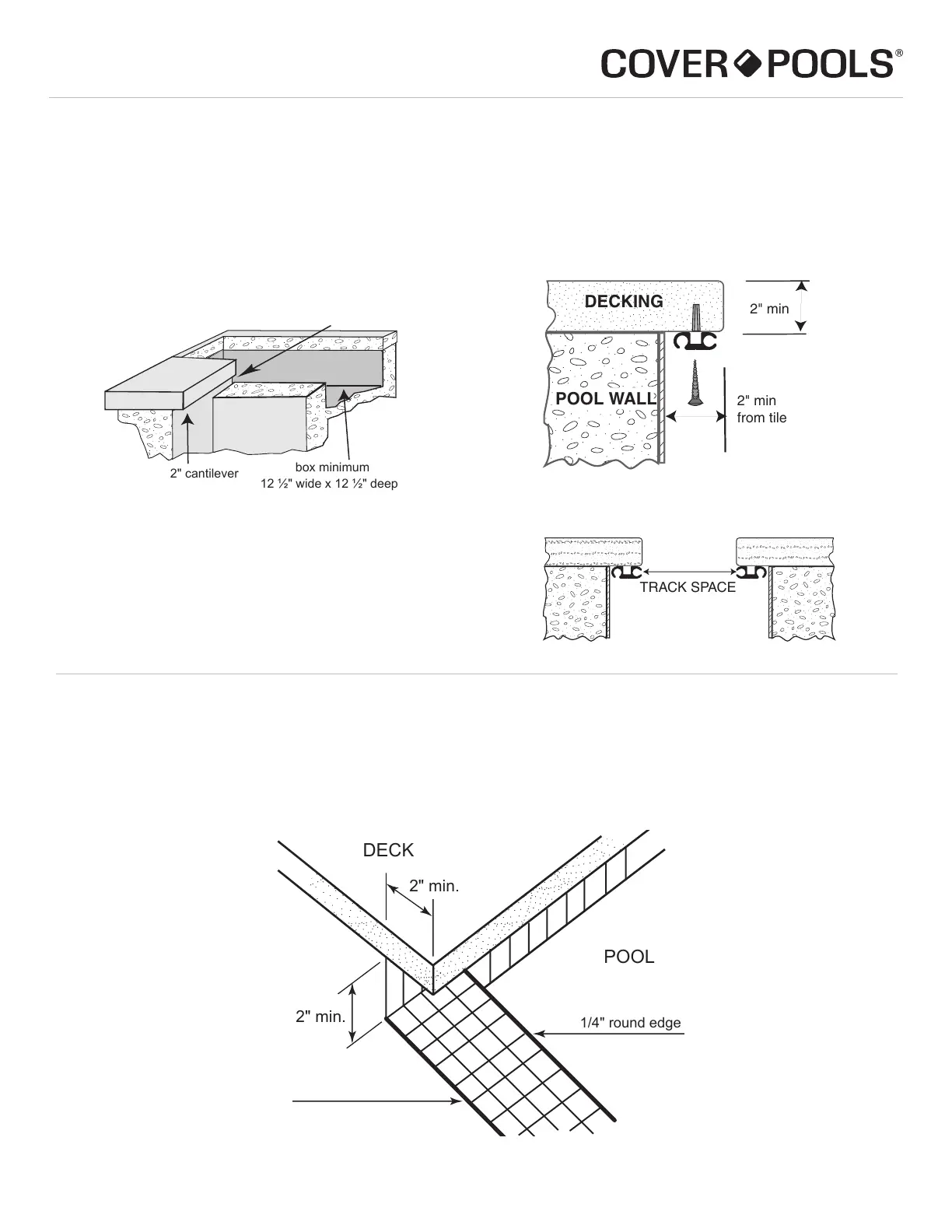

Tile Beam—Underside track
1/4" round edge if exposed
1/4" round edge
POOL
DECK
2" min.
2" min.
The lowered pool wall is finished with a tile surface.
For the lowered wall edge, use a rounded tile on the front and back edges to minimize scraping on the cover.
NOTE: The track must be mounted on the flat
bottom of the coping. The coping measurement
is NOT the track space. Coping must not extend
more than ½" past the edge of the track.
Track Space
2" cantilever
box minimum
12 ½" wide x 12 ½" deep
Pool wall
2" min.
bull nose
Bull nose
2" minimum
from tile
decking
Decking
DECKING
POOL WALL
2" min
2" min
from tile
TRACK SPACE
Coping or Deck Requirements—Underside track (cont.)
Opening 2" finished with
tile or other material
Opening for the track must be 2½" at box
(2" finished with tile), sloping to 3" inside pool
1/4" round edge
