Cover Pools Save-T 3 - Recessed Housing for Universal;SnapTop Track

All diagrams are for general information. Consult installation instructions for details.
9

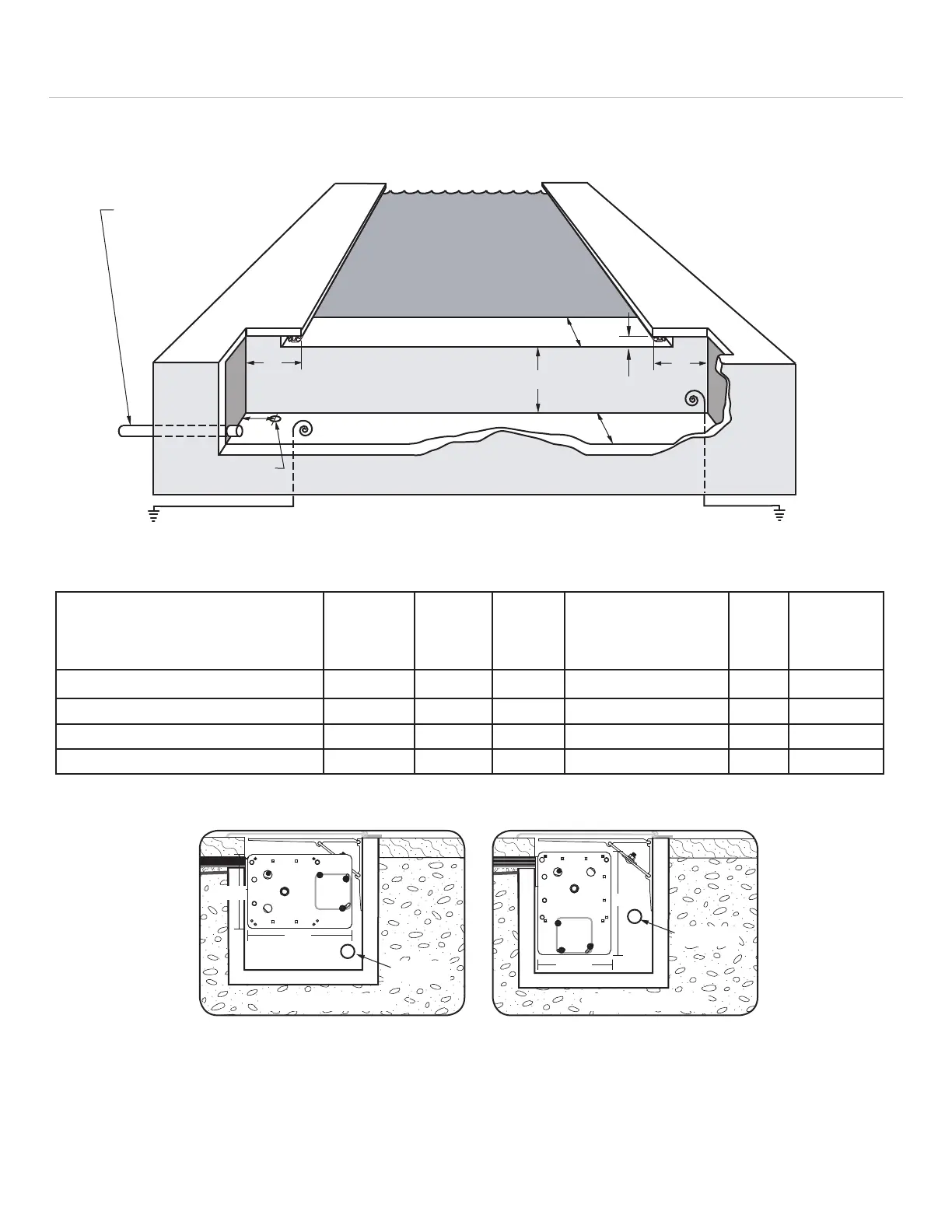

Recessed Concrete, Wood, or UPB Box—Autosave
OPTION 2: Conduit comes from side of box.
conduit should not
protrude more
than 4" into box
conduit must be as close to
rear wall as possible for
mechanism clearance.
POOL
3" drain can be on either end
recessed box wall
cut away for clarity
pool beam wall
drain centerline 4"
max from end wall
M
T
O
D
B
W
bond wire to bonding grid (route so that cover will not rub or catch or interfere with mechanism)
Underside Track
Box Dimensions For Autosave™
Up to 13' or
200 square feet
Motor
M
Opposite
O
Beam
B
Throat
T
Depth
D
Width
W
Motor Behind 9" min 9" min 10" min 1" to Finished Beam 9"min 12-1/2" min
w/ Auto-Shutoff 14-1/2" min 9" min 10" min 1" to Finished Beam 9"min 12-1/2" min
Motor Below 12-1/2" min 9" min 10" min 1" to Finished Beam 9"min 12-1/2" min
w/ Auto-Shutoff 12-1/2" min 9" min 10" min 1" to Finished Beam 9"min 14-1/2" min
MTR
12"
8-1/2"
12"
8-1/2"
Conduit
Conduit
MTR
MTR
12"
8-1/2"
12"
8-1/2"
Conduit
Conduit
MTR
Motor Behind Motor Below
Side View
Consult a certied electrician and the pre-wiring diagrams for conduit and bonding requirements.
