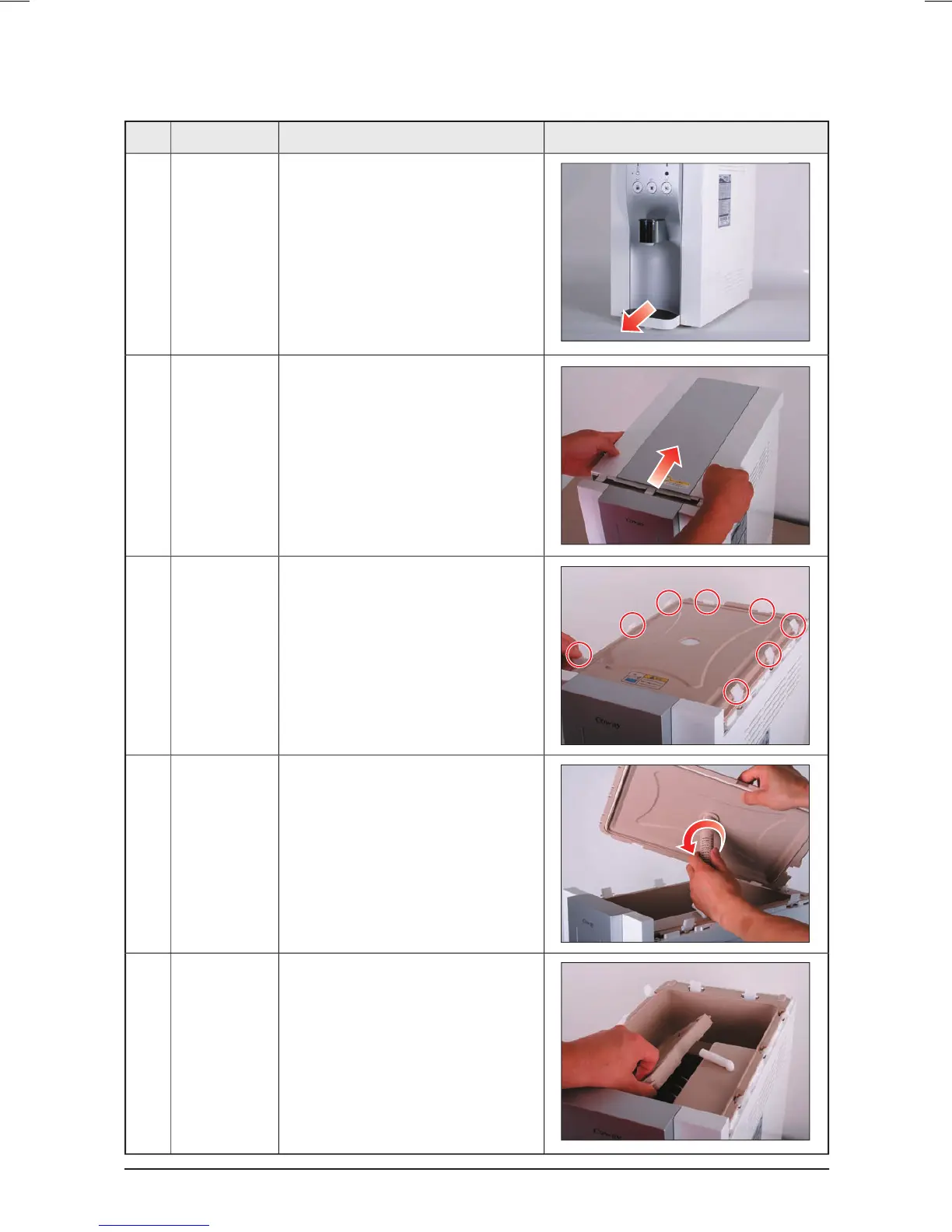

4-2-2 Separating the top cover
No. Part name Explanation Reference picture
1 Tray assy 1) Separate the tray assy.
2
Top cover
Assy
1) Separate the top cover assy in
the direction of the arrow
.
3 Main tank
cap
Assy
1)
Open the 8 tank sealing clips and
then separate the main tank cap
assy.
4
Ceramic
filter
1) Remove the ceramic filter by
turning it counter clockwise.
5
Separate
board
1) Remove the separate board
(cold/room temperature water
separation board).
