Coway CHP-06DL Service Manual

Disassembling and refitting
Coway co., Ltd
4-5

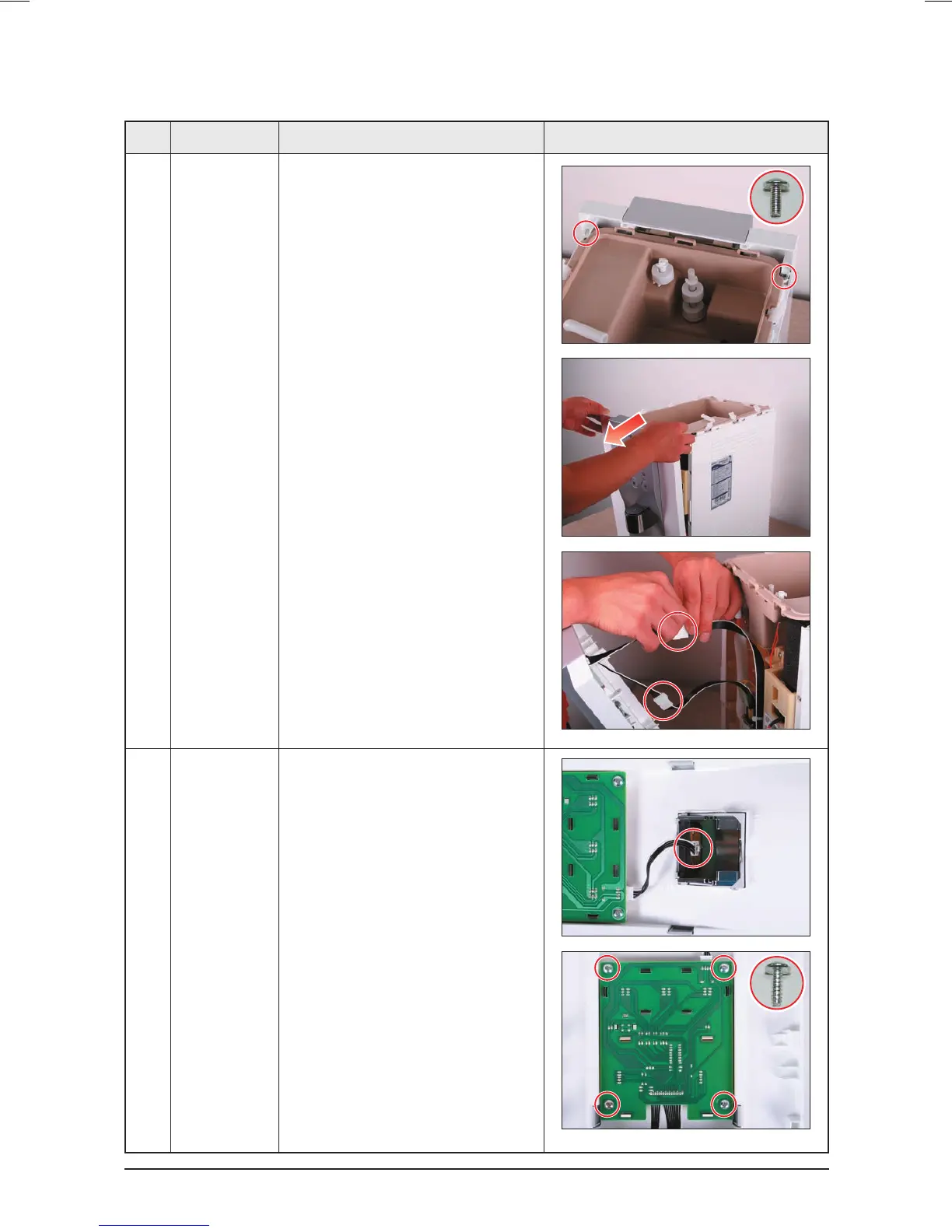

4-2-3 Separating the front cover part (1)
No. Part name Explanation Reference picture
1 Front cover
assembly
1) Remove the 2 screws from the
front cover assy
.
: 2-M4x10
2) Separate the front cover assy by
pulling it in the direction of the
arrow.
3)
Separate the 2 connectors
connected to the front cover
assy
.
2
Front PBA 1) Separate the connector
connected to the front deco.
2) Remove the 4 screws and
separate the front PBA.
: 4-4x12 T
AP
