Coway CHP-06DL Service Manual

Disassembling and refitting
4-8
Coway co., Ltd

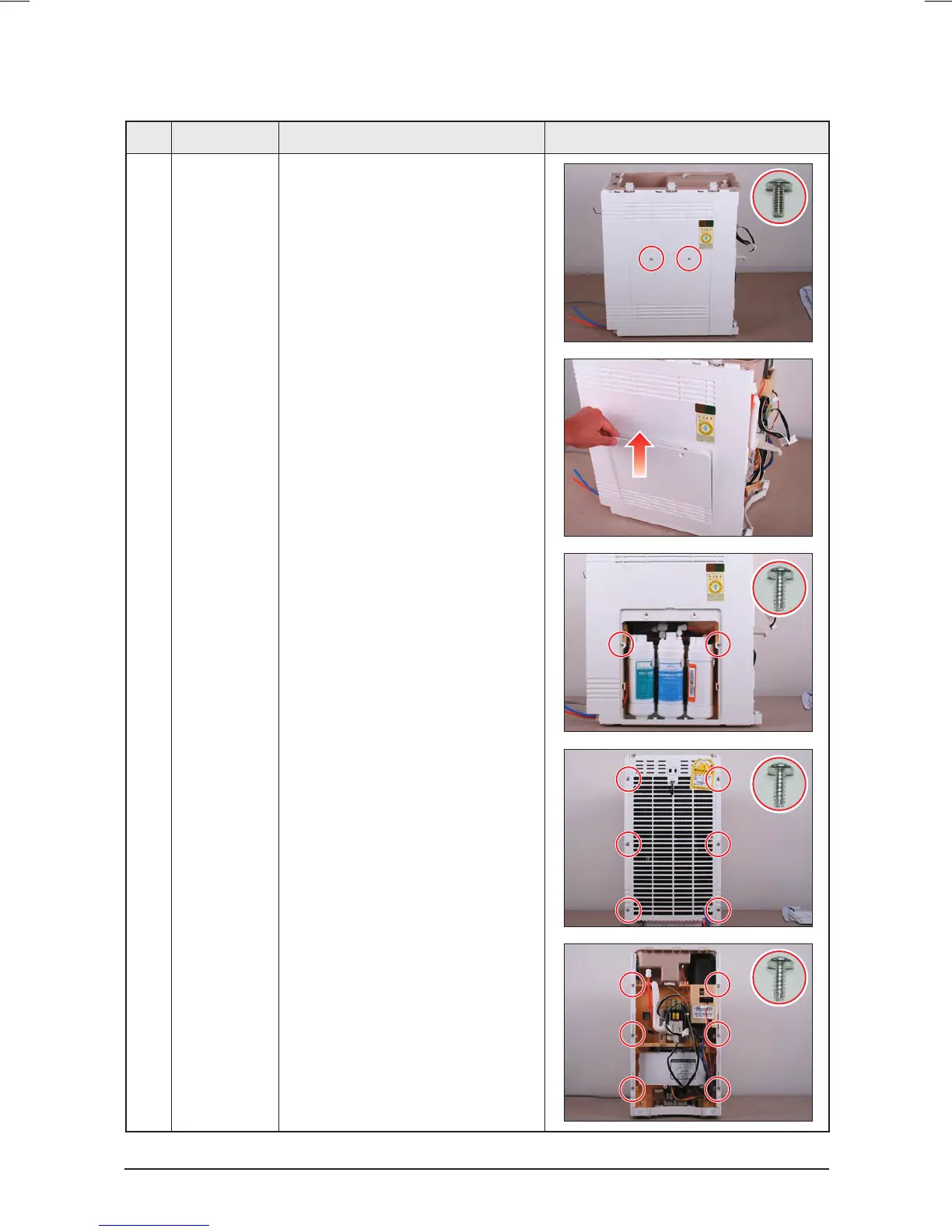

4-2-4 Separating the side L/R cover parts
No. Part name Explanation Reference picture
1 Side L/R
cover assy
1)
Remove the 2 screws from the
side door assy
.
: 2-M4x10
2) Separate the side door assy
.
3) Remove the 2 screws from the
side L cover assy.
: 2-4x12
T
AP
4) Remove the 6 screws from the
rear cover.
: 6-4x12
T
AP
5) Remove the 6 screws from the
frame.
: 6-4x12
T
AP
CHP-06DL-eng.indb 8 2007-10-22 ｿﾀﾀ・9:12:39
