COZY CDV155B - Page 13

If any of the original wire supplied
with this appliance has to be replaced,
it must be replaced with type 105
degree C wire or its equivalent.
JUNCTION BOX
FLOOR
SHIELD
POWER
CORD
BLOWER
COVER SHIELD - REMOVE AND DISCARD
JUNCTION
BOX
WRAPPER
FIG. 13
PART
PART DESCRIPTION NO.
Blower Housing w/Motor 70201
& Blower
Junction Box 43610
Junction Box Cover 43620
Fan Switch 120 Degree 70110
Cord Set 80202
Cover Plate 43078
Blower Screen CDV25/33-B 43635
Page 13
MODEL DVB-3 OPTIONAL BLOWER KIT (Cont’d.)
INSTALLATION INSTRUCTIONS
INSTALL ONLY ON CDV15-B / CDV25-B / CDV33 –B SERIES

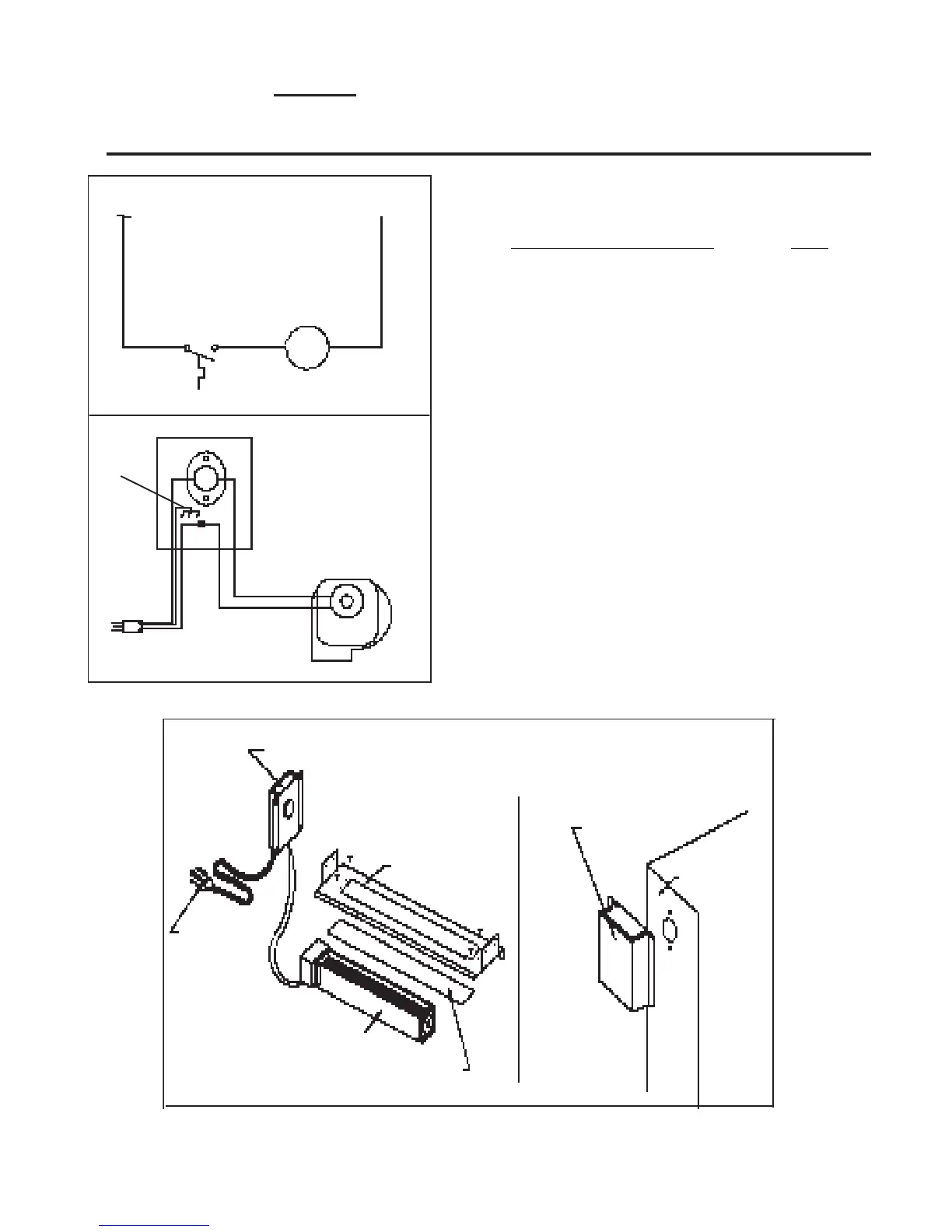

L1
L2
LADDER
SCHEMATIC
Motor
FAN SWITCH
Fan Switch
PICTORIAL
SCHEMATIC
BLOWER
MOTOR
POWER
CORD
FIGURE 12
BLACK
BLACK
BLACK
BLACK
GREEN
BLUE
BLACK
BLUE
BLACK
