Page 14
Vent
“TH”
“TH-TP”
FIGURE D
13/16”
3-1/4”
DIMPLE
DIMPLE
3-1/4”
6-1/2”
CDV15
CDV25/33
FIGURE A
5/8”
3-1/8”
2”
RIGHT SIDE OF
INNER WRAPPER
3”
2”
1-7/8”
RIGHT SIDE OF
INNER WRAPPER
CDV15
CDV25/33
FIGURE C

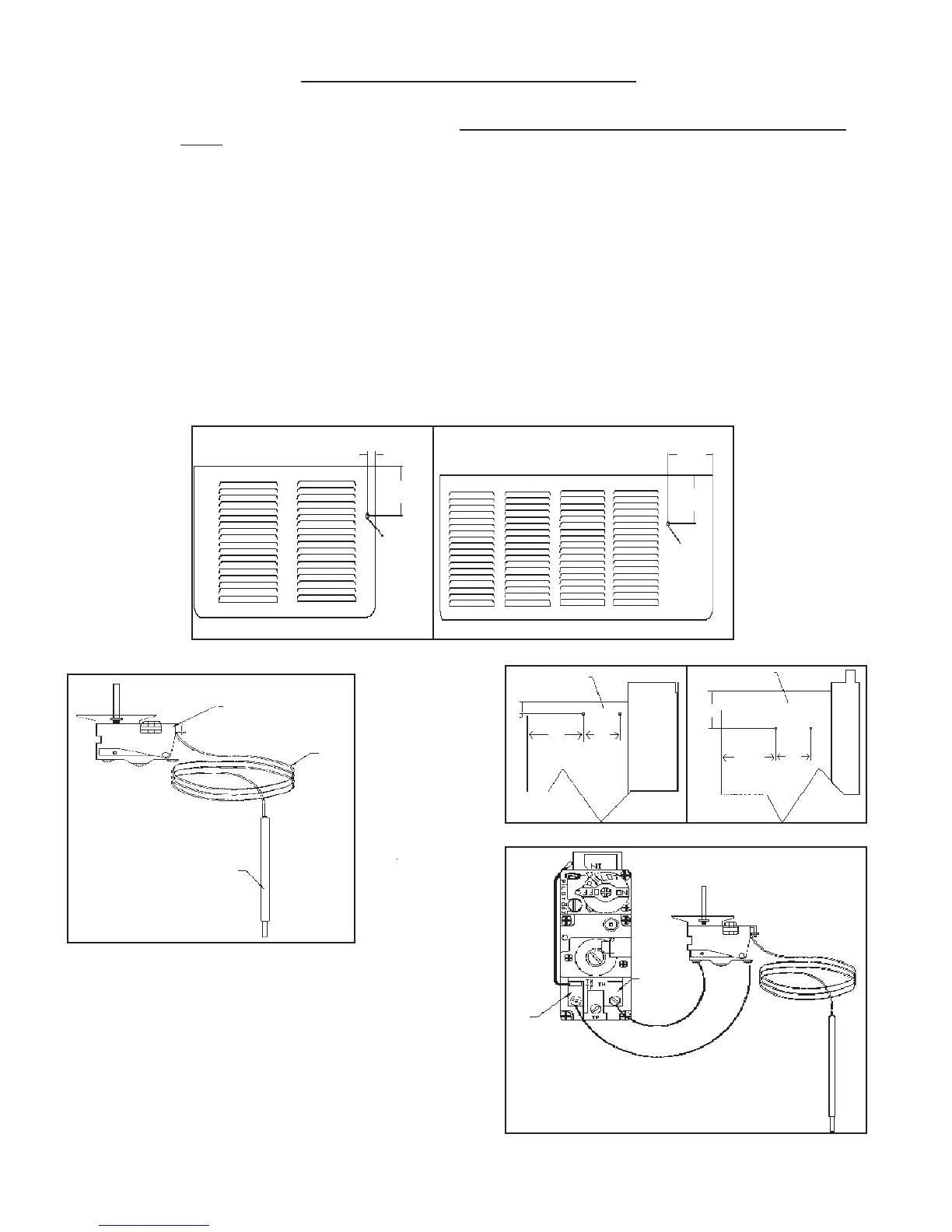

OPTIONAL BBSK INSTALLATION INSTRUCTIONS
STEP 1) LOCATE DIMPLE AT RIGHT REAR OF THE CABINET TOP. SEE FIGURE A.
STEP 2) USING DIMPLE AS A LOCATOR, DRILL A ½” HOLE.
STEP 3) STRAIGHTEN THE CAPILLARY TUBE. DO NOT KINK THE CAPILLARY TUBE OR SENSING
BULB. SEE FIGURE B.
STEP 4) FROM TOP OF HEATER, INSTALL SENSING BULB DOWN AND UNDER THE GAS CONTROL
VALVE SO THAT THE CAPILLARY TUBE IS BETWEEN THE BACK OF THE HEATER AND THE
WALL. SLIDE WHITE CABLE CLAMP (PROVIDED) ONTO SENSING BULB AND SECURE TO THE
BOTTOM OF THE GAS VALVE USING THE 10-24X3/8” SCREW PROVIDED.
STEP 5) SECURE THE CONTROL SWITCH (SEE FIGURE B) TO THE RIGHT SIDE OF THE INNER WRAPPER
USING PREPUNCHED HOLES AND TWO #8 SCREWS PROVIDED. SEE FIGURE C. NOTE:
SWITCH MUST BE INSTALLED TO BE OUTSIDE THE WRAPPER.
STEP 6) RUN THE TWO CONTROL WIRES FROM THE SWITCH DOWN THE RIGHT OUTSIDE OF WRAP-
PER. CONNECT ONE WIRE TO THE “TH” TERMINAL AND ONE TO THE “THPP” TERMINAL ON
THE GAS VALVE. SEE FIGURE D. SLIDE A WHITE CABLE CLAMP (PROVIDED) OVER BOTH
WIRES AND SECURE TO WRAPPER USING SCREW THAT SECURES THE FLOOR SHIELD.
STEP 7) IF HEATER IS NOT INSTALLED TO WALL, FOLLOW INSTRUCTIONS TO DO SO.
STEP 8) REMOVE AND DISCARD THE LIGHTING INSTRUCTIONS SUPPLIED WITH HEATER. REPLACE
WITH LIGHTING INSTRUCTION SUPPLIED IN BBSK KIT.
STEP 9) PLACE CABINET ONTO HEATER, THE CONTROL ROD SHOULD EXTEND UP THROUGH THE ½”
HOLE IN TOP OF CABINET.
STEP 10) PLACE THE CONTROL KNOB ONTO THE CONTROL ROD AND SECURE BY PUSHING DOWN.
STEP 11) FOLLOW THE LIGHTING INSTRUCTIONS TO PLACE THE HEATER IN OPERATION.
FIGURE B
Capillary
Tube
Sensing
Bulb
Control
Unit
