1018028-B
CLEARANCES - Continued

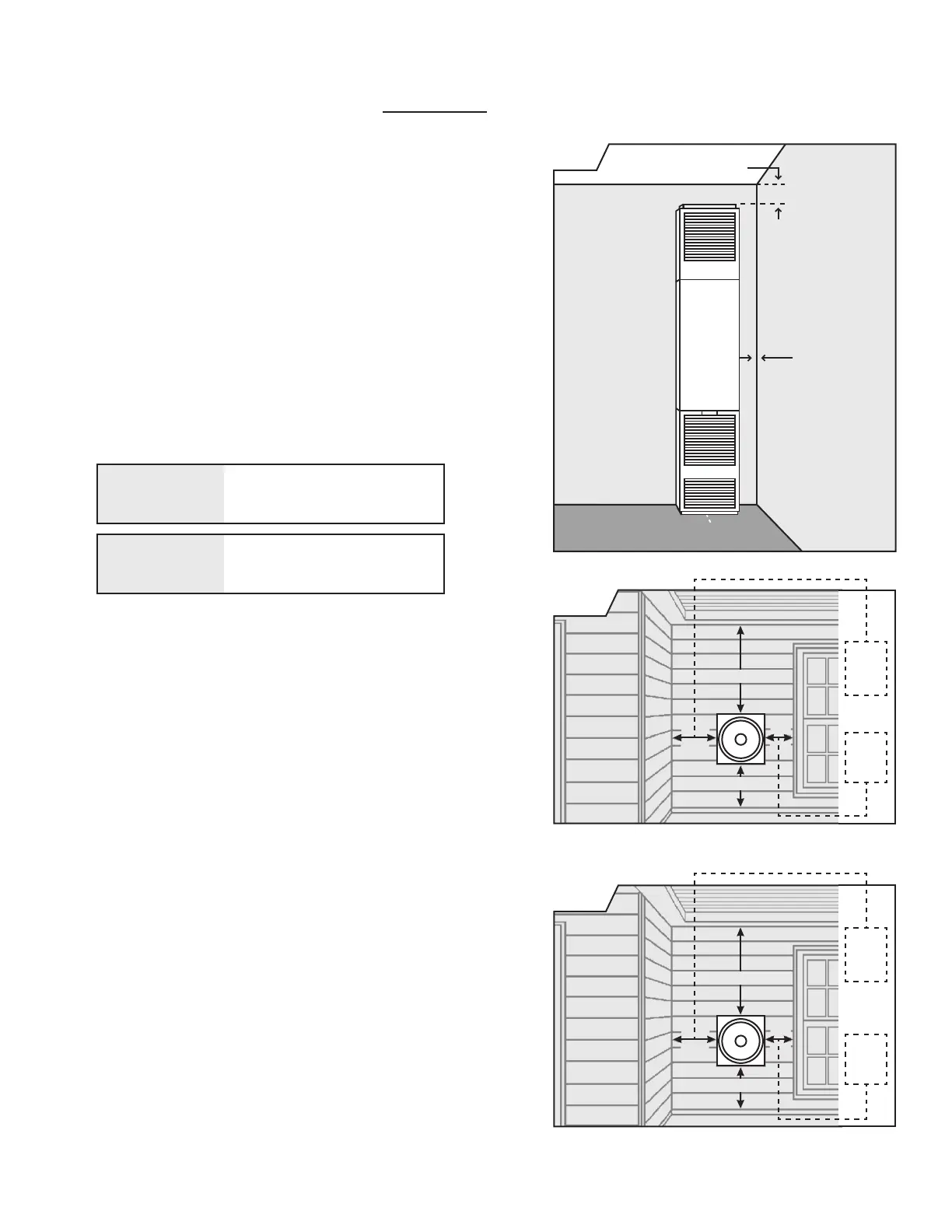

1. MINIMUM CLEARANCES
• Side Wall: Min. Clearance = 4”
(See Fig. 1) NOTE: The unit may be recessed and rest directly
against side studs and the inside surface of the rear wall.
• Ceiling: Min. Clearance = 4”
(See Fig. 1)
• Floor: Min. Clearance = 0”
(See Fig. 1)
• From the Side of the Vent Cap to Any Protruding
Obstructions or Corners: Min. Clearance = 12”
(See Fig. 2b)
• From any Window to the Side of the Vent Cap
DVCF553C, 554C, 557C and 558C
FIG. 2-B
12”
Min.
12”
Min.
24” Minimum
12” Minimum
DVCF403C, 404C, 407C and 408C
FIG. 2-A
9”
Min.
12”
Min.
24” Minimum
12” Minimum
2. RESIDENTIAL GARAGE INSTALLATION:
Gas utilization equipment in residential garages shall be
installed so that all burners and burner ignition devices are
to damage by a moving vehicle. Use care in selecting a good
• DO NOT
be directed onto a nearby parked vehicle.
• Paint may discolor or rubber
may harden and crack.
• DO NOT
onto open or closed containers of paint, gasoline or
DVCF403, 404,
407, & 408C
DVCF553, 554,
557 & 558C
Min. Clearance = 9”
(See Figure 2)
Min. Clearance = 12”
(See Figure 2b)
• From any Overhanging Projection to Top of Vent Cap
Min. Clearance = 24”
(See Figure 2)
CEILING
4” Minimum
4” Minimum
SIDE
WALL
FLOOR 0”
FIG. 1
