1. Loosen the blade height lock
knob (B) by turning counter
clockwise.
2. To raise the blade crank the hand
wheel clockwise. Turn the hand
wheel counter-clockwise to lower
the blade.
3. When you reach the desired
height lock the blade by turning
the lock knob clockwise.

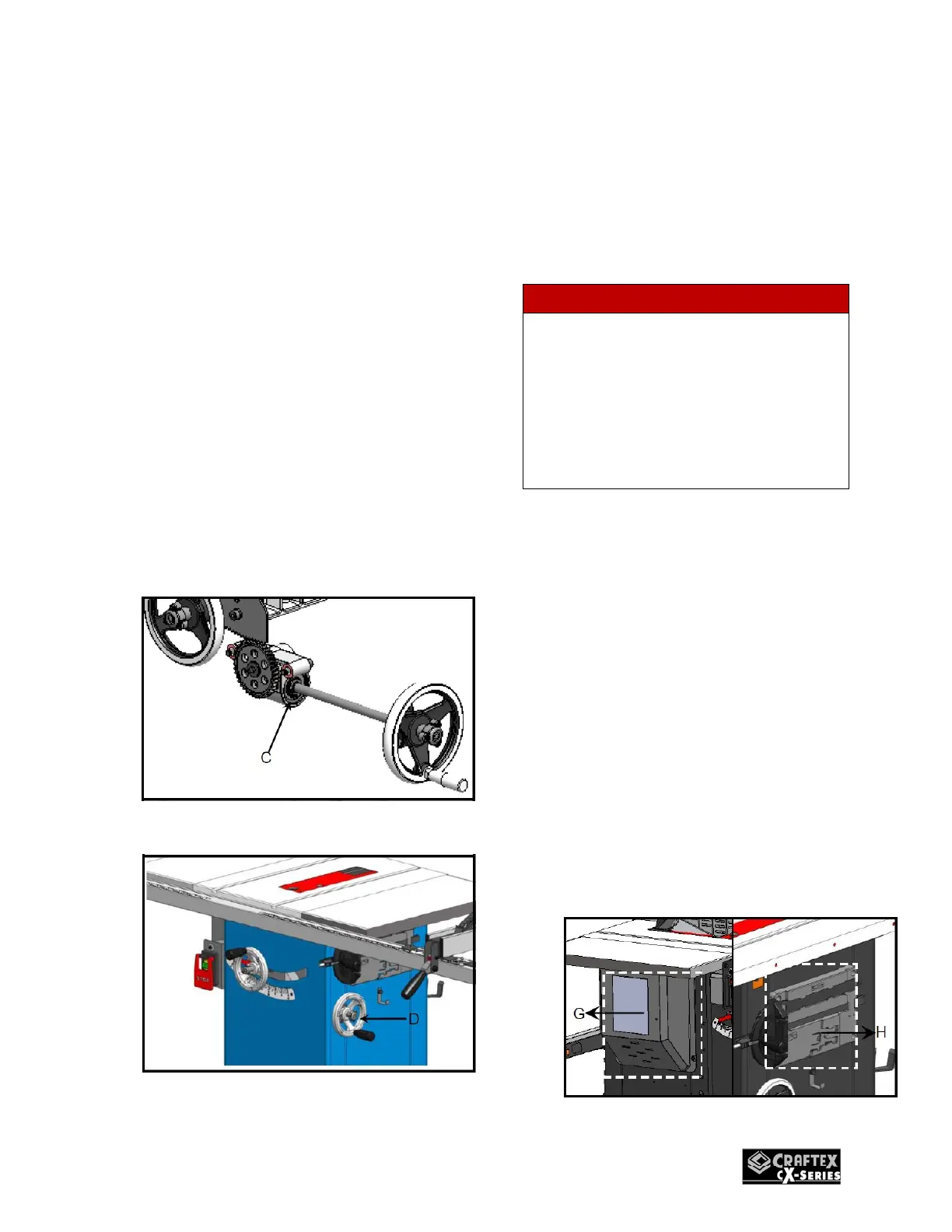

Blade Tilt/Bevel Adjustment
Blade tilt or bevel is controlled the
worm gear assembly (C), the hand
wheel control (D) is connected
through the right side of the saw.
Figure 40
Figure 40
Figure 41
The blade can be tilted to the left
anywhere from 0 Deg. (90 Deg. to
the table) to 45 Deg. Turn the hand
wheel to the left or right as required
to set the blade to the desired angle.
WARNING!!!
Never have the blade height higher
than necessary to complete the cut.
When doing through cuts set the
height of the blade no more than ¼”
above the thickness of the board
being cut. This limits your exposure
to the blade and maximizes the
effect of the kickback pawls.
BELT TENSION ADJUSTMENT
The belt may become loose or over time
with continuous use. If the belt becomes
frayed, cranked or glazed it should be
replaced.
1. Disconnect the machine from its
power source.
2. Completely lower the blade using
the blade height adjustment hand
wheel (A). Figure 41
3. Remove the motor cover (G) and
storage box (H). Figure 42
Figure 42
