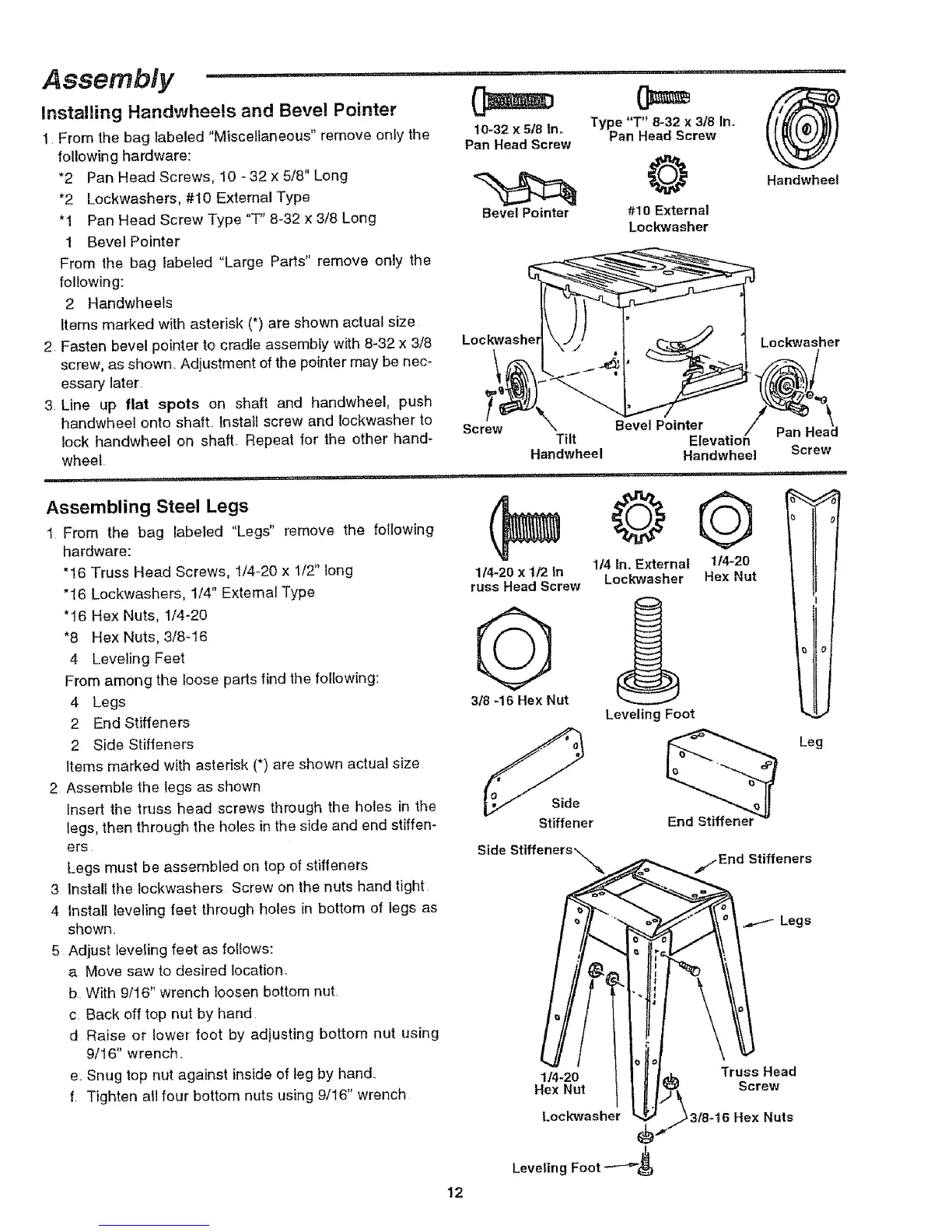

Assembly ................. '"
Installing Handwheels and Bevel Pointer
1 From the bag labeled "Miscellaneous" remove only the
following hardware:
*2 Pan Head Screws, 10 - 32 x 5/8" Long
*2 Lockwashers, #10 External Type
"1 Par} Head Screw Type "T" 8-32 x 3/8 Long
1 Bevel Pointer
From the bag labeled "Large Parts" remove only the
following:
2 Handwheels
Items marked with asterisk (*) are shown actual size
2, Fasten bevel pointer to cradle assembly with 8-32 x 3/8
screw, as shown. Adjustment of the pointer may be nec-
essary later
3 Line up flat spots on shaft and handwheel, push
handwheel onto shaft.. Install screw and !ockwasher to
lock handwheel on shaft. Repeat for the other hand-
wheel
........ i,,i
10-32 x 5/8 In.
Pan Head Screw
Bevel Pointer
Screw
Tilt
Handwheel
= ..... PH.....,.H ..,=...... =
Type "T" 8-32 x 3/8 In.
Pan Head Screw
O Handwheel
#10 External
Lockwasher
Lockwasher
Bevel Pointer / Pan Head
Elevation
Handwheel Screw
Assembling Steel Legs
t From the bag labeled "Legs" remove the following
hardware:
"16 Truss Head Screws, 1/4-20 x 1/Z' long
"16 Lockwashers, 1/4" External Type
"I6 Hex Nuts, 1/4-20
*8 Hex Nuts, 3/8-16
4 Leveling Feet
From among the loose parts find the following:
4 Legs
2 End Stiffeners
2 Side Stiffeners
items marked w{th asterisk (*) are shown actual size
2 Assemble the legs as shown
insert the truss head screws through the holes in the
legs, then through the holes in the side and end stiffen-
ers
Legs must be assembled on top of stiffeners
3 Install the Iockwashers Screw on the nuts hand tight.
4 Instal! leveling feet through hotes in bottom of legs as
shown.
5 Adjust teveling feet as follows:
a Move saw to desired location..
b. With 9/16" wrench loosen bottom nut
c Back off top nut by"hand
d Raise or lower foot by adjusting bottom nut using
9/16" wrench..
e..Snug top nut against inside of leg by hand..
f Tighten all four bottom nuts using 9/16" wrench
1/4-20 x 112In
russ Head Screw
Q
3/8-16 Hex Nut
Stiffener
Side Stiffeners'_
1/4-20
Hex Nut
0©
1/4 In. External 1/4-20
Lockwasher Hex Nut
Leveling Foot
Leg
.,,j End Stiffeners
Truss Head
Screw
Lockwasher
Hex Nuts
12
Leveling Foot ----_
