Repair Parts .............
\
3
1 2

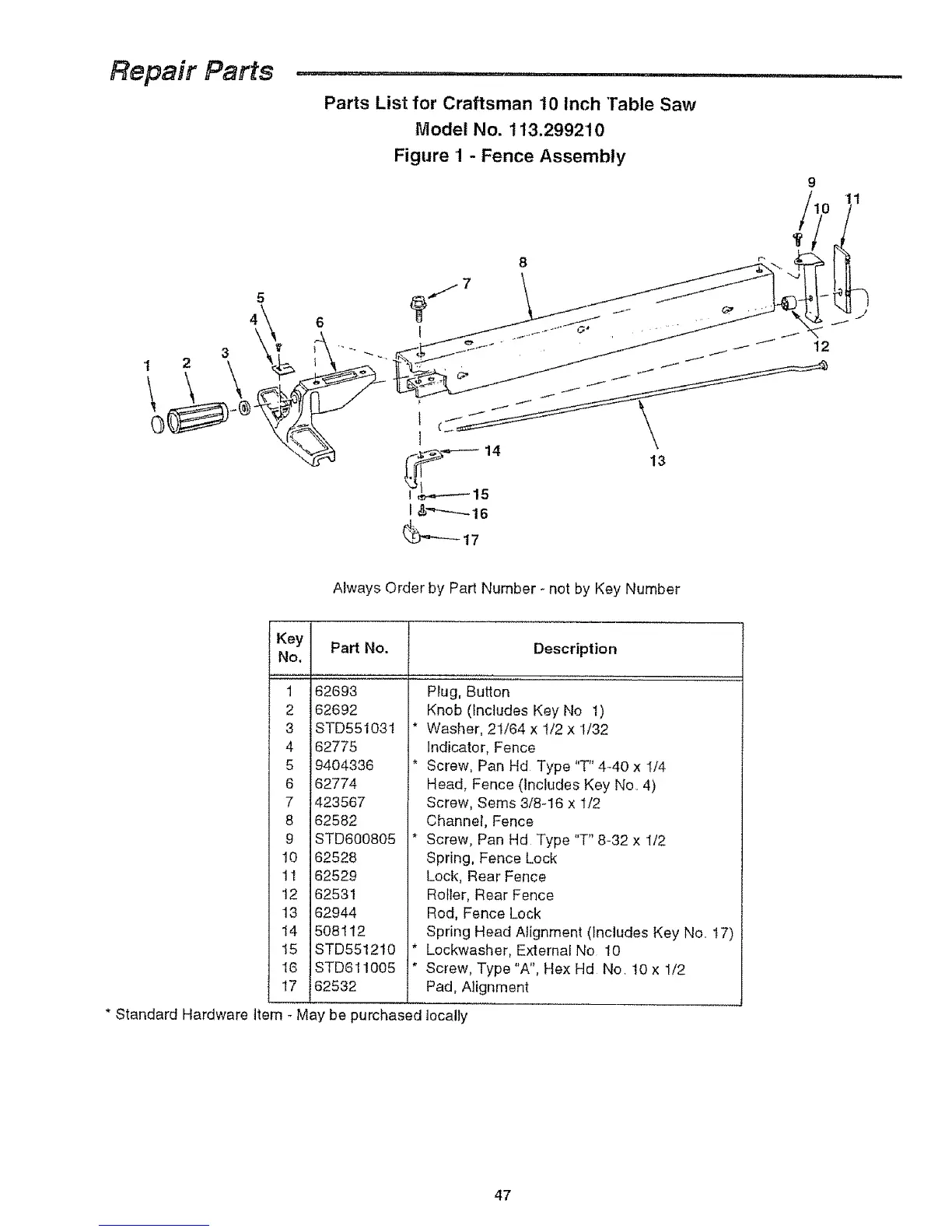

Parts List for Craftsman 10 Inch "Fable Saw
Model No. 113.299210
Figure 1 - Fence Assembly
12
I &_'-'--_ 16
13
Always Order by Part Number - not by Key Number
Key PaN No.
No.
1 62693
2 62692
3 STD551031
4 62775
5 9404336
6 62774
7 423567
8 62582
9 STD600805
10 62528
11 62529
12 62531
13 62944
14 508112
15 STD551210
16 STD611005
17 i62532
* Standard Hardware Item
Description
Plug, Button
Knob (Includes Key No 1)
* Washer, 21/64 x 1/2 x 1/32
Indicator, Fence
* Screw, Pan Hd Type "T" 4-40 x I/4
Head, Fence (Includes Key No 4)
Screw, Seres 3/8-t6 x I/2
Channel, Fence
* Screw, Pan Hd Type "T" 8-32 x 1/2
Spring, Fence Lock
Lock, Rear Fence
Roller, Rear Fence
Rod, Fence Lock
Spring Head Alignment (Includes Key No 1
* Lockwasher, External No 10
* Screw, Type"A", Hex Hd No 10 x 1/2
Pad, Alignment
May be purchased tocalty
47
