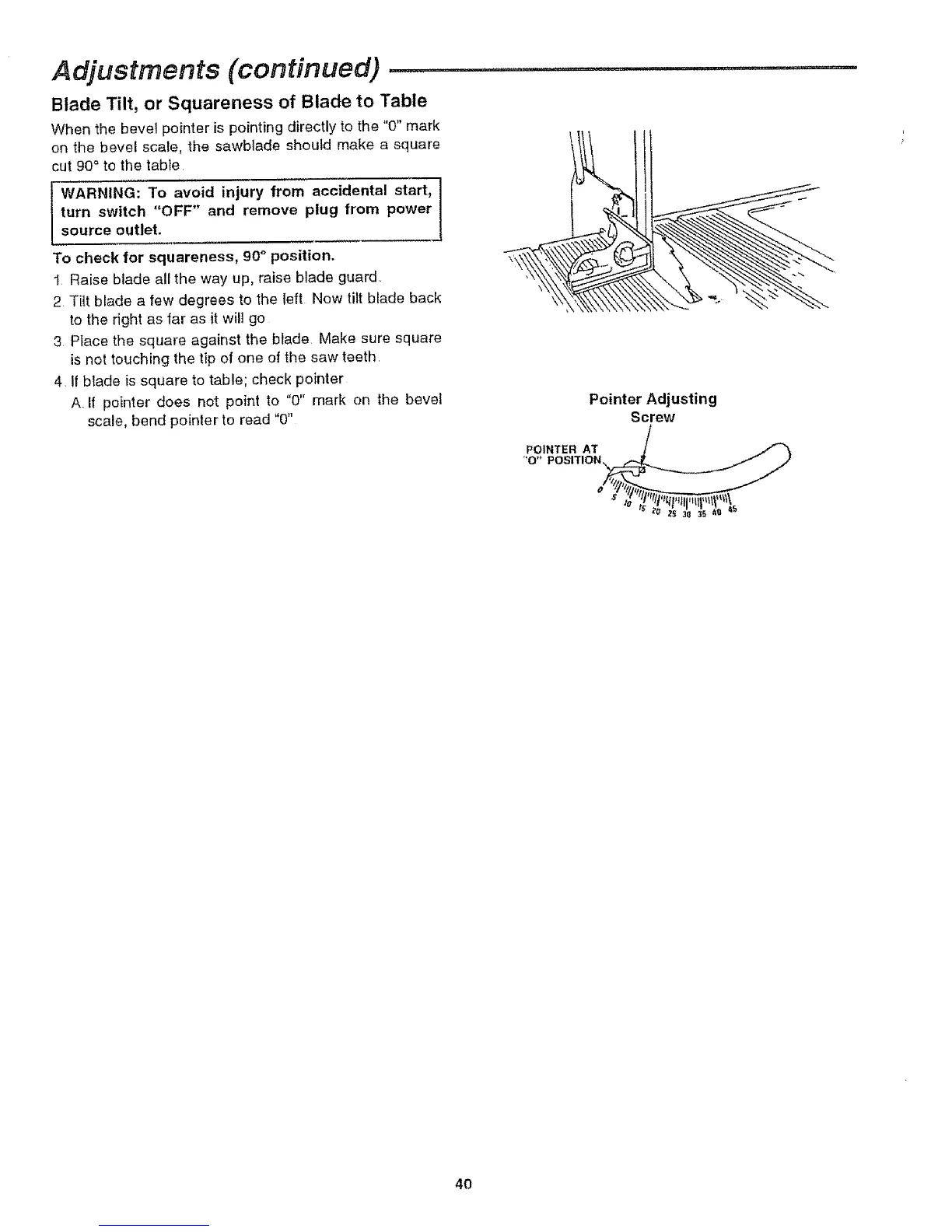

Adjustments (continued)
Blade Tilt, or Squareness of Blade to Table
When the bevel pointer is pointing directly te the "0" mark
on the bevel scale, the sawblade should make a square
cut 90° to the table
I WARNING: To avoid injury from accidental start, ]
turn switch "OFF" and remove plug from power
1source outlet.
To check for squareness, 90 ° position.
1 Raise blade all the way up, raise blade guard
2 Tilt blade a few degrees to the {elt Now tilt blade back
te the right as far as it will ge
3 Place the square against the blade Make sure square
is net touching the tip of one of the saw teeth
4 If blade is square to table; check peinter
A If pointer does net point to "0" mark en the bevel
scale, bend peinter to read "0"
Pointer Adjusting
Screw
POINTER AT /
""O" POSITION_J
40
