Idea 3 – Sing along: Connect a low impedance microphone to the Low Z
jack. Connect a high impedance microphone to the Instrument Input jack.
Connect a tape player (for sound tracks and back up music) to the CD
Input jacks. A single button footswitch may be used to turn the DSP on
and off.
Notes:
• When a tape player or CD player is connected to the CD Input jacks,
the output of the player may need to be adjusted by means of its out-
put level control (if it has one), or by an external attenuator/preamp.
• A tape player or CD player may be connected to either channel instead
of to the CD Input jacks. This provides control of the gain and equaliza-
tion of the signal, as well as the application of DSP if desired. In this
case, the left and right outputs of the tape or CD player must be
summed to create a mono signal, such as shown below.

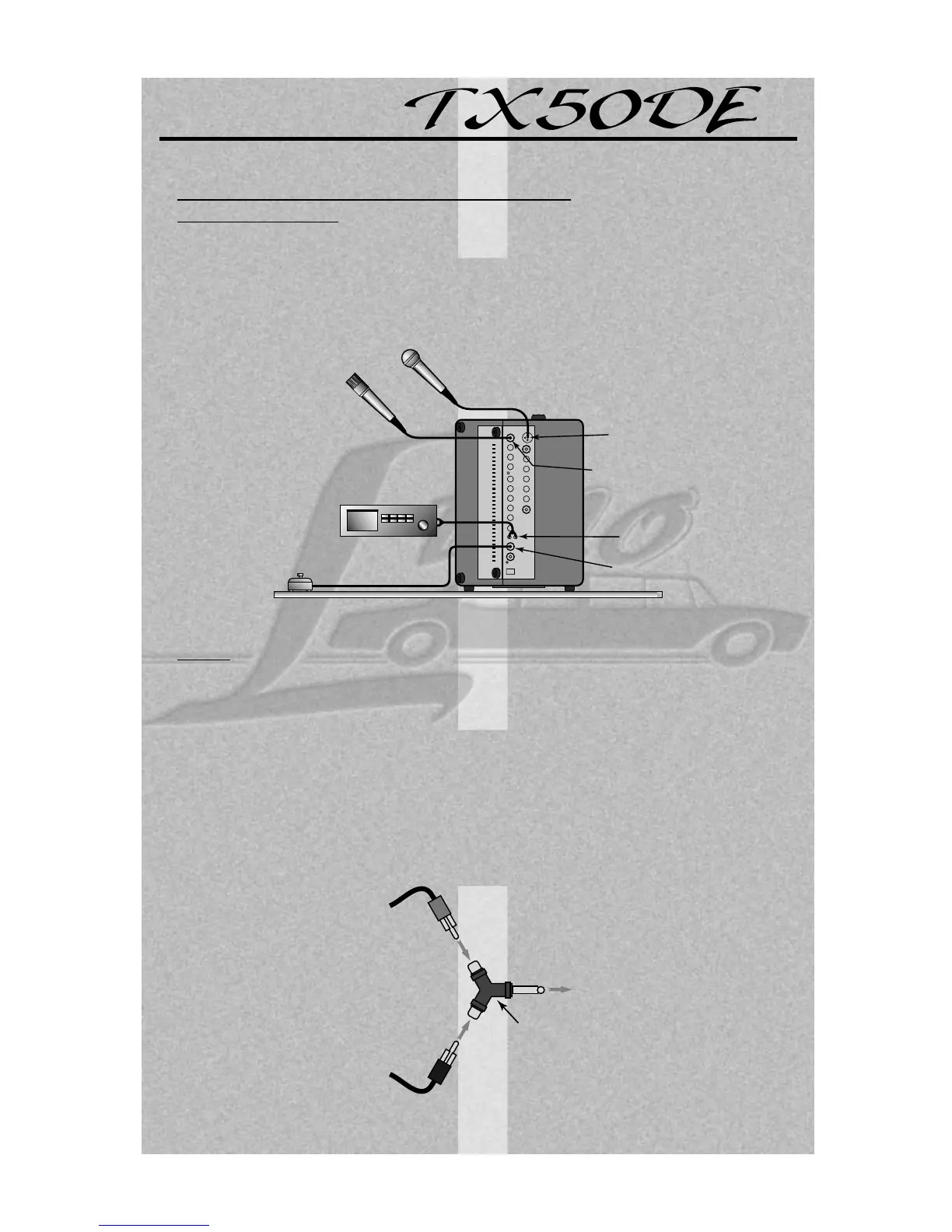

LOW Z
INPUT
MIC 1
MIC 2
TAPE PLAYER
CD
INPUT
INSTRUMENT
INPUT
FOOT
SWITCH
FOOTSWITCH
(CFP1)
LEFT
OUT
TO INPUT JACK
CA9Y
DUAL RCA-TO-MONO
1/4" ADAPTER
RIGHT
OUT

Crate LIMO TX50D Specifications

Power

output power rating	50W RMS @ 10% THD, 4 ohms, 13.6VDC in
power requirements	Internal 12 volt DC power supply
DC adapter	for use with 120VAC

Input and Output

input impedance	1M ohm
maximum signal accepted - Mic Low Z	2V peak to peak
maximum signal accepted - Mic Hi Z	12V peak to peak

Gain and Sensitivity

gain - Mic	57dB High Z, 72dB Low Z
gain - Instrument	44dB w/Gain switch out, Ch2, 85dB w/Gain switch in, Ch1

EQ Settings

EQS MIC Low	±15dB @ 60Hz
EQS MIC Mid	±15dB @ 600Hz
EQS MIC High	±15dB @ 10kHz

Size and Weight

width	15-1/2”
height	13”
depth	12”
