Crate LIMO TX50D User Manual

CRATE
8
YPP117
DUAL MONO 1/4" TO
STEREO 1/4" ADAPTER
STEREO 1/4" TO
STEREO 1/4" CABLE
TO
INSERT
JACK
TO
STANDARD
INSERT
JACK OF
EFFECT
(IF EFFECT IS NON-INVERTING)
TO
INVERTED
INSERT
JACK OF
EFFECT
TO
MONO
OUTPUT
JACK OF
EFFECT
TO
MONO
INPUT
JACK OF
EFFECT
TO
MONO
OUTPUT
JACK OF
EFFECT
TO
MONO
INPUT
JACK OF
EFFECT
TIP: LINE IN (RETURN)
RING: LINE OUT (SEND)
SLEEVE: GROUND
(IF EFFECT IS INVERTING)
TO
INSERT
JACK
TO
INSERT
JACK
MONO 1/4" TO
MONO 1/4" CABLES
STP201, 3'
STP202, 6'
STP203, 9'
DUAL MONO 1/4" TO
STEREO 1/4" Y-CABLE
RING
TIP
RING
TIP
TIP: LINE IN (RETURN)
RING: LINE OUT (SEND)
SLEEVE: GROUND
TIP: LINE IN (RETURN)
RING: LINE OUT (SEND)
SLEEVE: GROUND

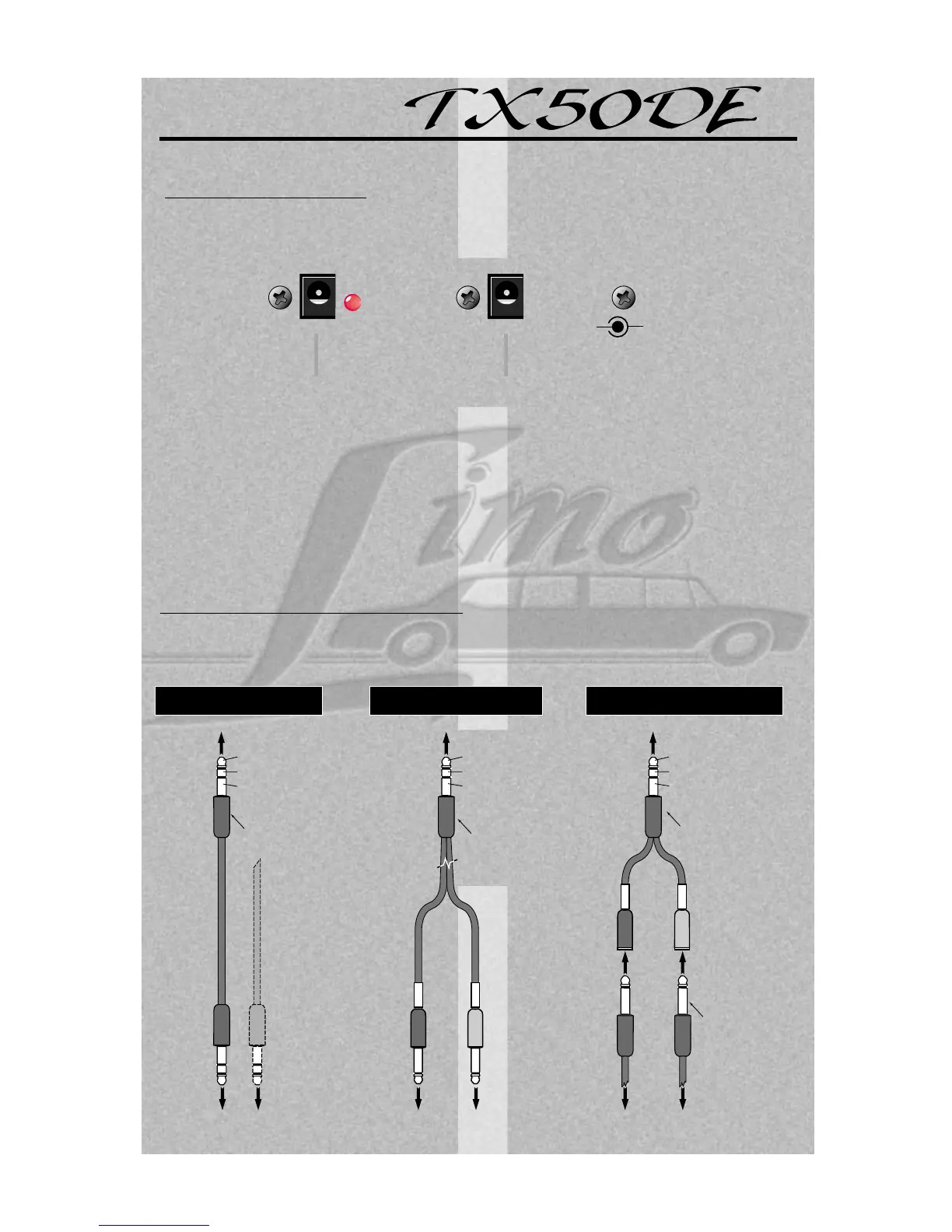

ABOUT THE INSERT JACK:
The Insert jack (#8) lets you patch external effects into the amplifier just prior to its power amp
stage, as shown below. Set the mix controls on the external effects units to “full effect” (100% wet).
Connecting to the effect’s
insert jack with a stereo cable:
Connecting to the effect with a
stereo-to-mono adapter and cables:
Connecting to the effect with a
stereo-to-mono Y-cable:
THE REAR PANEL:
25. DC CHARGER PLUG, 15VDC: Plug the
small round connector of the supplied AC
wall adapter into this jack to charge the
internal battery. The LED next to the jack
glows red when the amp is charging. See
page 4 for additional information.
26. DC CIGARETTE LIGHTER ADAPTER, 12
VDC: Plug the small round connector of the
optional 12-volt car adapter into this jack to
play the amplifier from a vehicle, instead of
the internal battery. NEVER connect the
supplied 15-volt charger to this jack! See
page 4 for additional information.
DC CIGARETTE
LIGHTER ADAPTOR
DC CHARGER
PLUG
12V DC15V DC
LIT WHEN
CHARGING
POSITIVE
NEGATIVE
25 26

Crate LIMO TX50D Specifications

Power

output power rating	50W RMS @ 10% THD, 4 ohms, 13.6VDC in
power requirements	Internal 12 volt DC power supply
DC adapter	for use with 120VAC

Input and Output

input impedance	1M ohm
maximum signal accepted - Mic Low Z	2V peak to peak
maximum signal accepted - Mic Hi Z	12V peak to peak

Gain and Sensitivity

gain - Mic	57dB High Z, 72dB Low Z
gain - Instrument	44dB w/Gain switch out, Ch2, 85dB w/Gain switch in, Ch1

EQ Settings

EQS MIC Low	±15dB @ 60Hz
EQS MIC Mid	±15dB @ 600Hz
EQS MIC High	±15dB @ 10kHz

Size and Weight

width	15-1/2”
height	13”
depth	12”
