Crate LIMO TX50D User Manual

CRATE
11

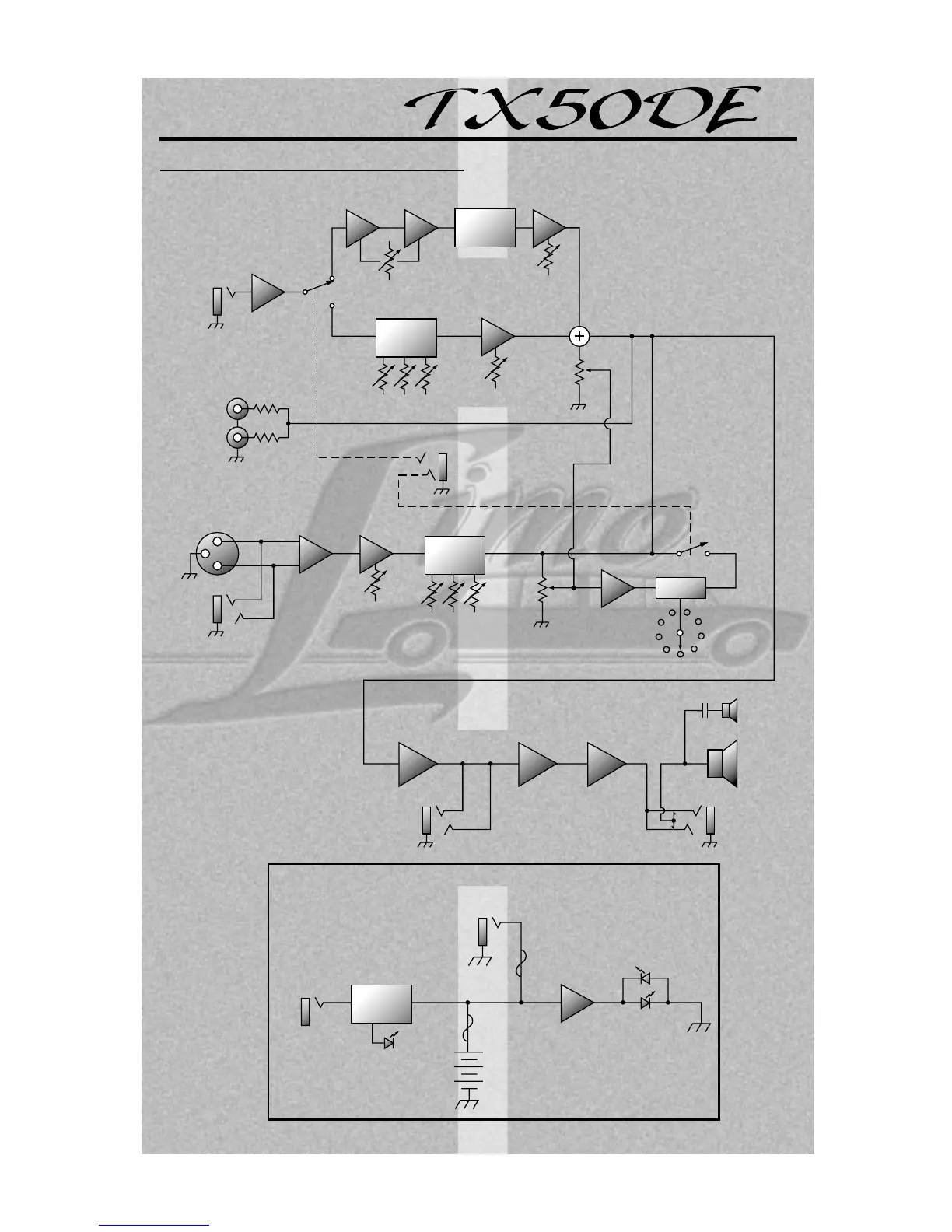

SYSTEM BLOCK DIAGRAM:
INSTRUMENT
CHANNEL
MIC
CHANNEL
CD
INPUTS
LOW MID HIGH
GAIN
LEVEL
1
2
CHANNEL
SELECT
LEVEL
DSP
SEND
TONES
LOW MID HIGH
TONES
SHAPE
DC
CHARGER
CHARGING
CIRCUIT
SMART
CHARGER
FUSE
DC
CIGARETTE
LIGHTER
ADAPTER
HEAD
PHONES
SPEAKERS
POWER
AMP
FOOTSWITCH
DSP/CH. SELECT
INSERT
FUSE
BATTERY
BATTERY
INDICATOR
CHARGING
INDICATOR
POWER SUPPLY
DSP
SEND
DSP
RETURN
(FOOT
SWITCH
ONLY)
LEVEL
MODE
DSP

Crate LIMO TX50D Specifications

Power

output power rating	50W RMS @ 10% THD, 4 ohms, 13.6VDC in
power requirements	Internal 12 volt DC power supply
DC adapter	for use with 120VAC

Input and Output

input impedance	1M ohm
maximum signal accepted - Mic Low Z	2V peak to peak
maximum signal accepted - Mic Hi Z	12V peak to peak

Gain and Sensitivity

gain - Mic	57dB High Z, 72dB Low Z
gain - Instrument	44dB w/Gain switch out, Ch2, 85dB w/Gain switch in, Ch1

EQ Settings

EQS MIC Low	±15dB @ 60Hz
EQS MIC Mid	±15dB @ 600Hz
EQS MIC High	±15dB @ 10kHz

Size and Weight

width	15-1/2”
height	13”
depth	12”
