Crate LIMO TX50D User Manual

CRATE
9

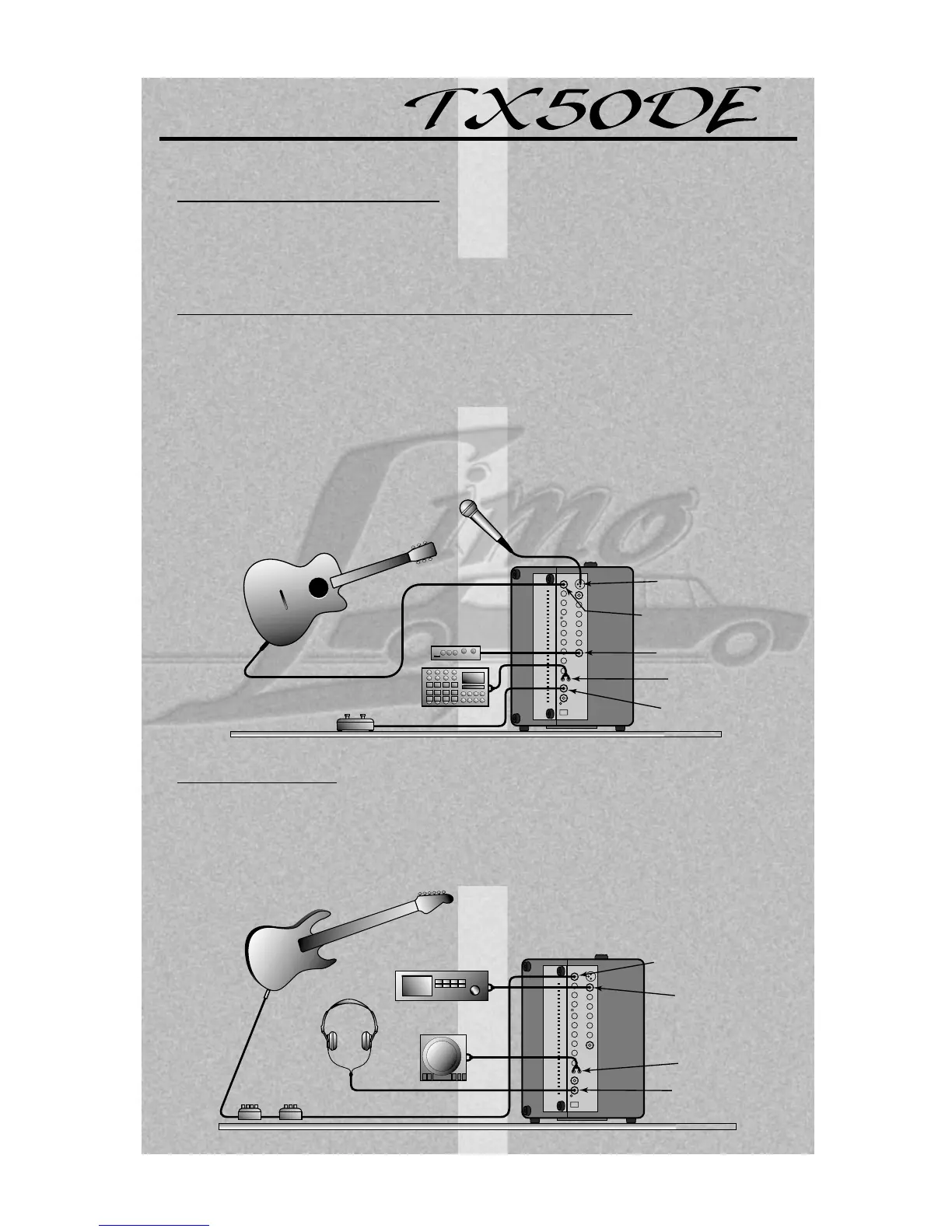

SUGGESTED SET
-UPS:
The TX50DE can be used in a variety of different ways, some of which
are shown below and on the following page. Use these ideas to fuel your
imagination for the setup which best suits your needs.
Idea 1 – Play and sing, with external effects and backup:
Connect a micro-
phone to the Low Z jack. Connect an instrument (acoustic or electric gui-
tar, keyboard) to the Instrument Input jack. (This high-Z input works with
all types of pickups, from Piezo to active types.) Connect a rhythm
machine to the CD Input jacks. A two-button footswitch may be used to
select Instrument Channel 1 or 2 and to turn the DSP on and off. Connect
the external effects device to the Insert jack using one of the methods
shown on page 8. (Note that the external effect will be applied equally to
both channels, as well as the CD inputs, so use with discretion.)
Idea 2 – Play along:
Connect an instrument (acoustic or electric guitar,
keyboard) to the Instrument Input jack. Connect a tape player or CD play-
er to either the CD Input jacks or to the Low Z jack of the remaining
channel. (See the notes on page 10 for more detailed information.) A pair
of stereo headphones may be connected to the Headphones jack for pri-
vacy.
LOW Z
INPUT
MIC
EFFECTS
(SM1-SP)
RHYTHM MACHINE
INSTRUMENT
INSERT
CD
INPUT
INSTRUMENT
INPUT
FOOT
SWITCH
FOOTSWITCH
(CFP2)
HI Z
INPUT
HEAD
PHONES
CD PLAYER
HEADPHONES
INSTRUMENT
INSTRUMENT
INPUT
TAPE PLAYER
CD
INPUT

Crate LIMO TX50D Specifications

Power

output power rating	50W RMS @ 10% THD, 4 ohms, 13.6VDC in
power requirements	Internal 12 volt DC power supply
DC adapter	for use with 120VAC

Input and Output

input impedance	1M ohm
maximum signal accepted - Mic Low Z	2V peak to peak
maximum signal accepted - Mic Hi Z	12V peak to peak

Gain and Sensitivity

gain - Mic	57dB High Z, 72dB Low Z
gain - Instrument	44dB w/Gain switch out, Ch2, 85dB w/Gain switch in, Ch1

EQ Settings

EQS MIC Low	±15dB @ 60Hz
EQS MIC Mid	±15dB @ 600Hz
EQS MIC High	±15dB @ 10kHz

Size and Weight

width	15-1/2”
height	13”
depth	12”
