CRATE
7
14. LOW (Active only when the Channel Select
switch is in the out position): Use this control to
adjust the low frequency level for the instru-
ment channel 2.
15. MID (Active only when the Channel Select
switch is in the out position): Use this control to
adjust the mid frequency level for the instru-
ment channel 2.
16. HIGH (Active only when the Channel Select
switch is in the out position): Use this control to
adjust the high frequency level for the instru-
ment channel 2.

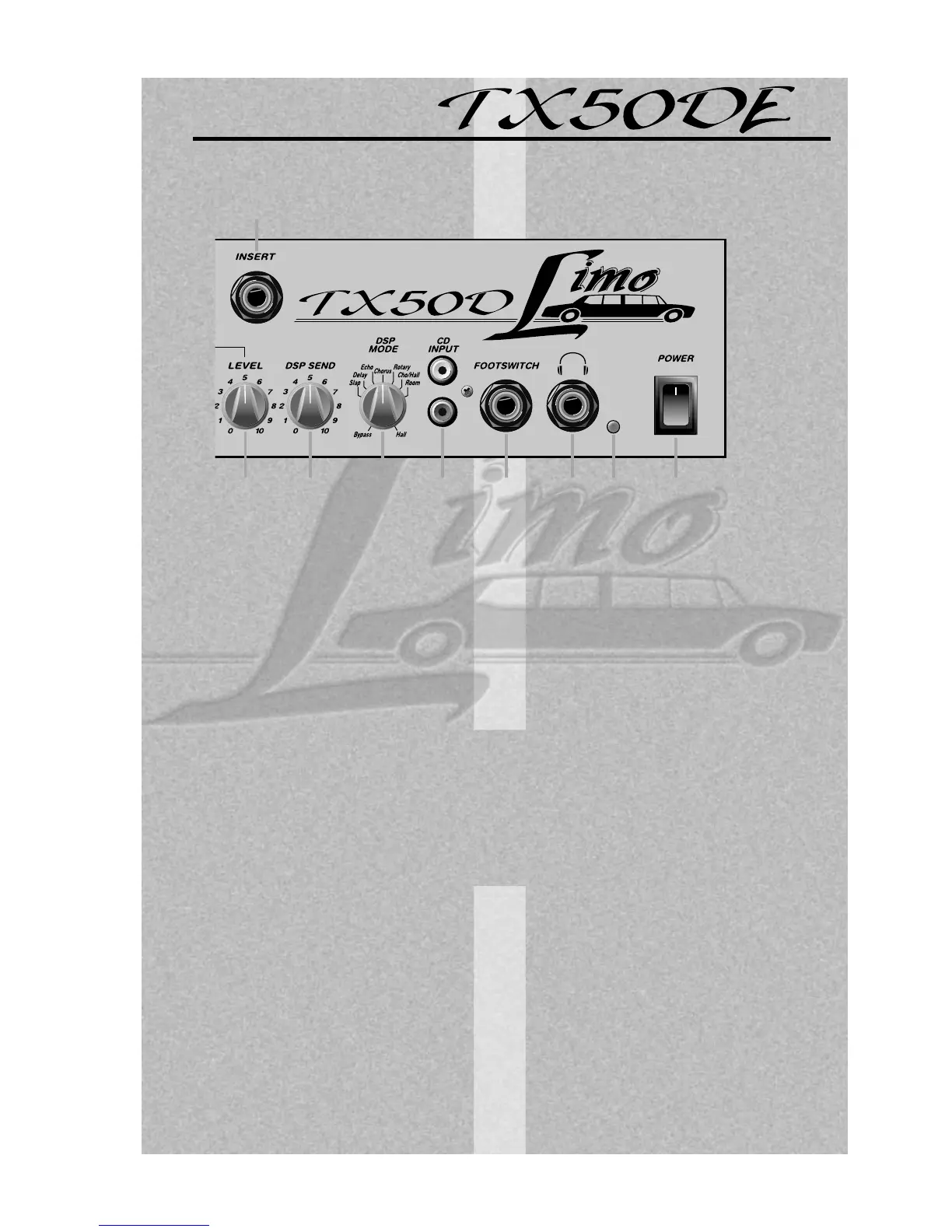

17. LEVEL (Active only when the Channel Select
switch is in the out position): Use this control to
adjust the output level of the instrument channel 2.
18. DSP SEND: Use this control to adjust the
amount of Digital Signal Processing (DSP)
applied to the instrument channel.
19. DSP MODE: Use this control to select the
type of Digital Signal Processing (DSP) effect
applied to the signal. The nomenclature around
the control is as follows:
BYPASS: No effect applied
SLAP: Moderate slapback delay
DELAY: Moderate delay with regeneration
ECHO: Long delay with regeneration
CHORUS: Moderate chorus effect
ROTARY: Simulated rotating speaker effect
CHO/HALL: Chorus combined with large reverb
ROOM: Small reverb effect
HALL: Large reverb effect
20. CD INPUT: Use these jacks to connect the
outputs of a CD player or tape player to the
amplifier. The output of the CD or tape player
may need to be attenuated for a suitable mix with
the input channels – see the notes on page 10.
21. FOOTSWITCH: Use this jack to connect a
two-button footswitch to the amplifier. The
footswitch may be used to remotely control the
Instrument channel selection and turn the DSP
on and off. The jack is wired as follows:
Tip = Channel Selection
Ring = DSP control
Sleeve = Ground
22. HEADPHONES: Use this jack to connect a
pair of stereo headphones for private practice
sessions. The internal speakers are discon-
nected when headphones are used.
23. LED: When the power switch is on and the
battery is fully charged, this LED illuminates
yellow. The LED illuminates red when the bat-
tery needs recharging.
24. POWER: Use this switch to turn the amplifi-
er on (top of the switch depressed) or off (bot-
tom of switch depressed).
