Restore hot end to original
home position
Auto-level the printing surface 16 point precise bed height
measurement
Printer will automatically
compensate for variable bed
height
*When using the auto level feature , we suggest that adding a raft from
the build plate adhesion section in software settings

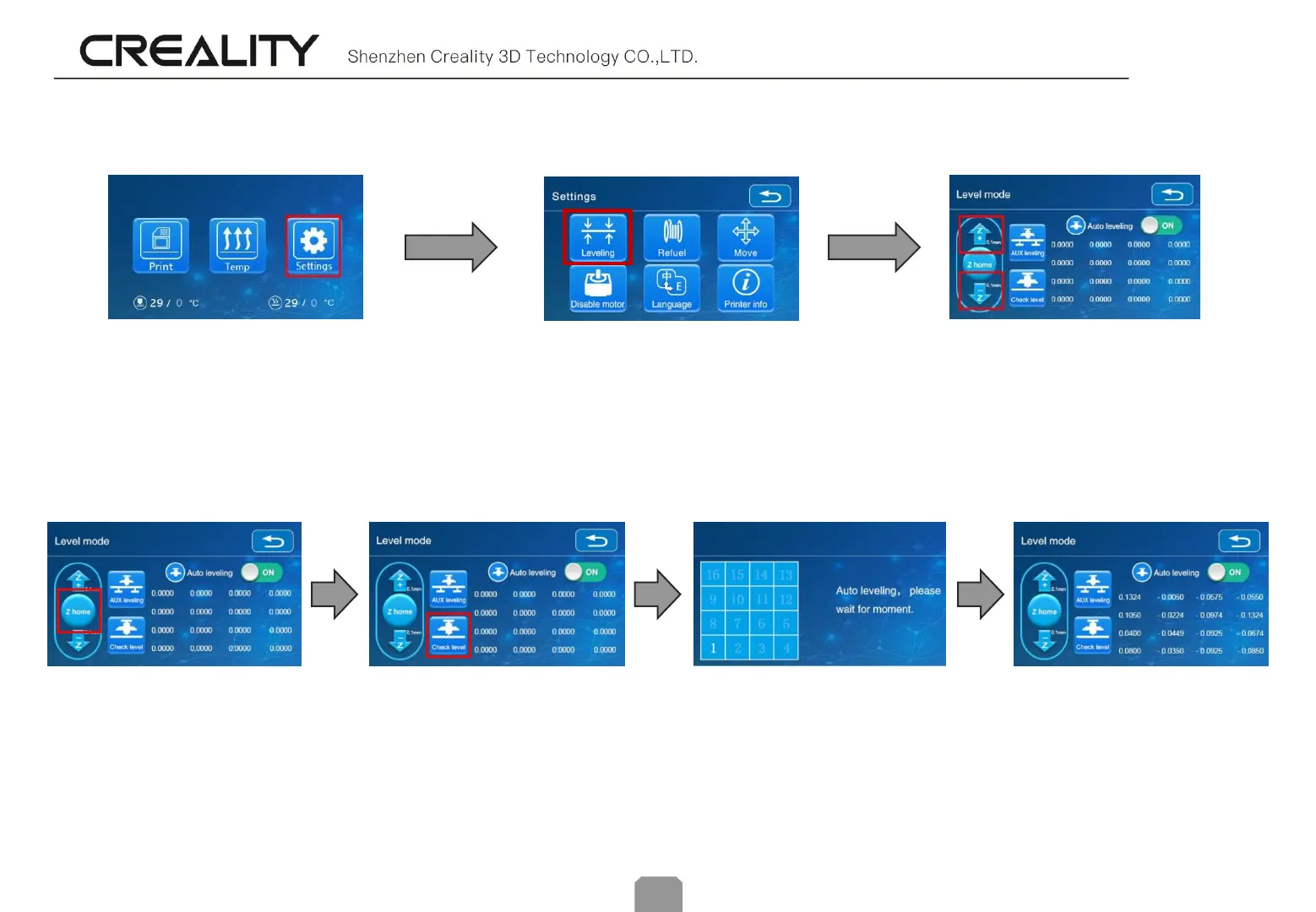

1. In “Settings” → “Leveling mode”
2. 2mm feeler gauge between the nozzle and the hot bed → If the gap is too thin or
too large, click "Z+" or "Z-" on the interface to adjust the gap to slightly more than 0.2 mm(the distance between the nozzle and the
hot bed should be about 0.2mm). At 0.2 mm the feeler can easily pass through the gap between the nozzle and the printing platform.
Auto leveling ：
11
