Behind
8pcs
M5X30
Lift Z-axis Frame Right Z-axis Frame
Ready:

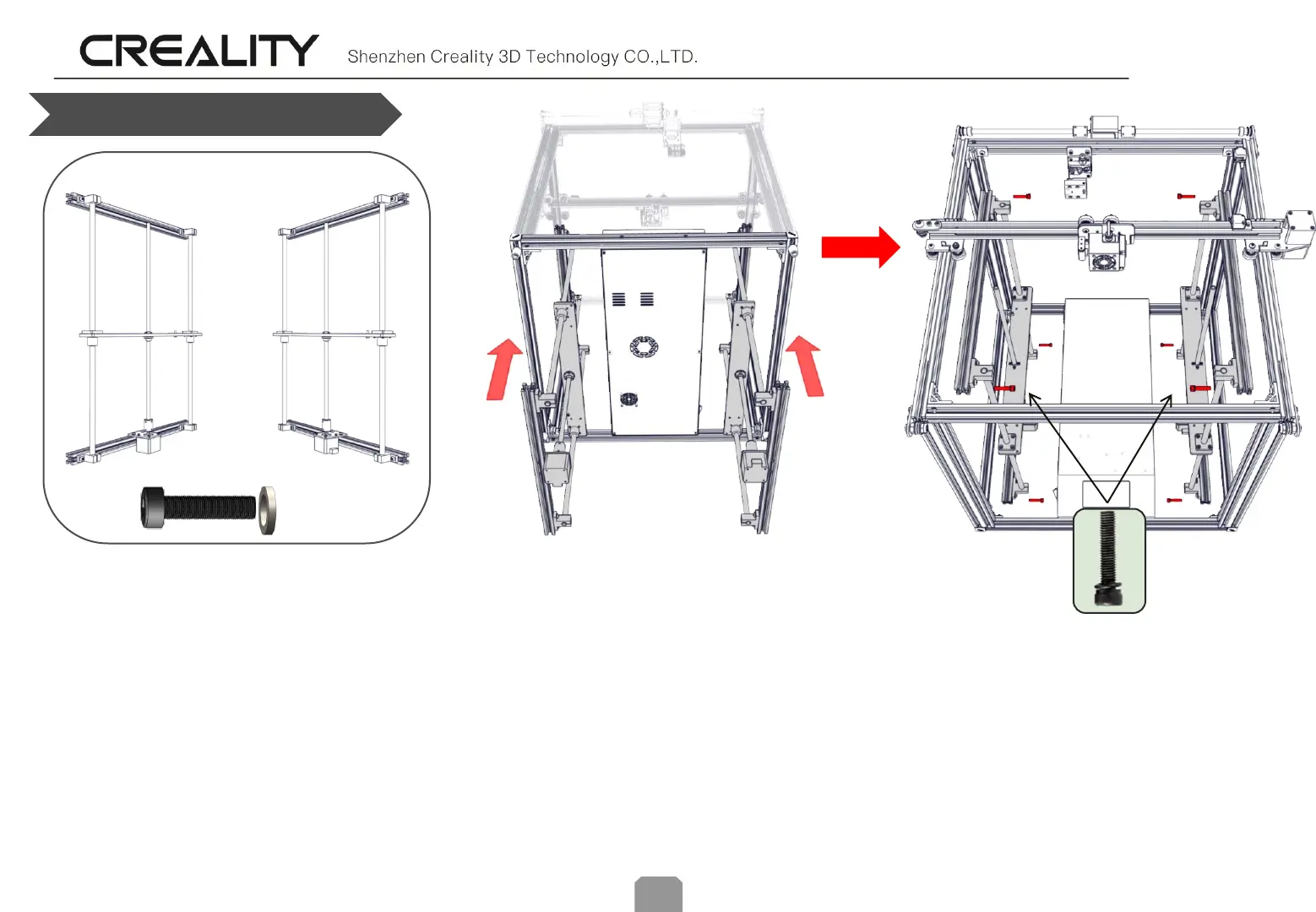

Frame Assembly Pt. 3
Step 1. Make sure the front of the bottom frame is facing you .
Step 2. Place double Z-axis frame inside of previously assembled frame. The double Z-axis frame is mounted on the left and right 2040 aluminum
profiles of the top frame and must be aligned with the aluminum profile. Making sure the motor is on the bottom, attach the frame to
the lower and upper assembly with a M5x30 screw and washer at each corner. The upper and lower assembly extrusions will have
corresponding pre-drilled holes for these screws.
Step 3. After the installation of the double Z-axis frame is completed, please check if your Y-axis can move smoothly. If the movement is
hindered and the aluminum profile is rubbed, please adjust the eccentric nut and reassemble your Z-axis frame.
5
