8pcs
M4X10
M5X8
2pcs
M5 T-nut

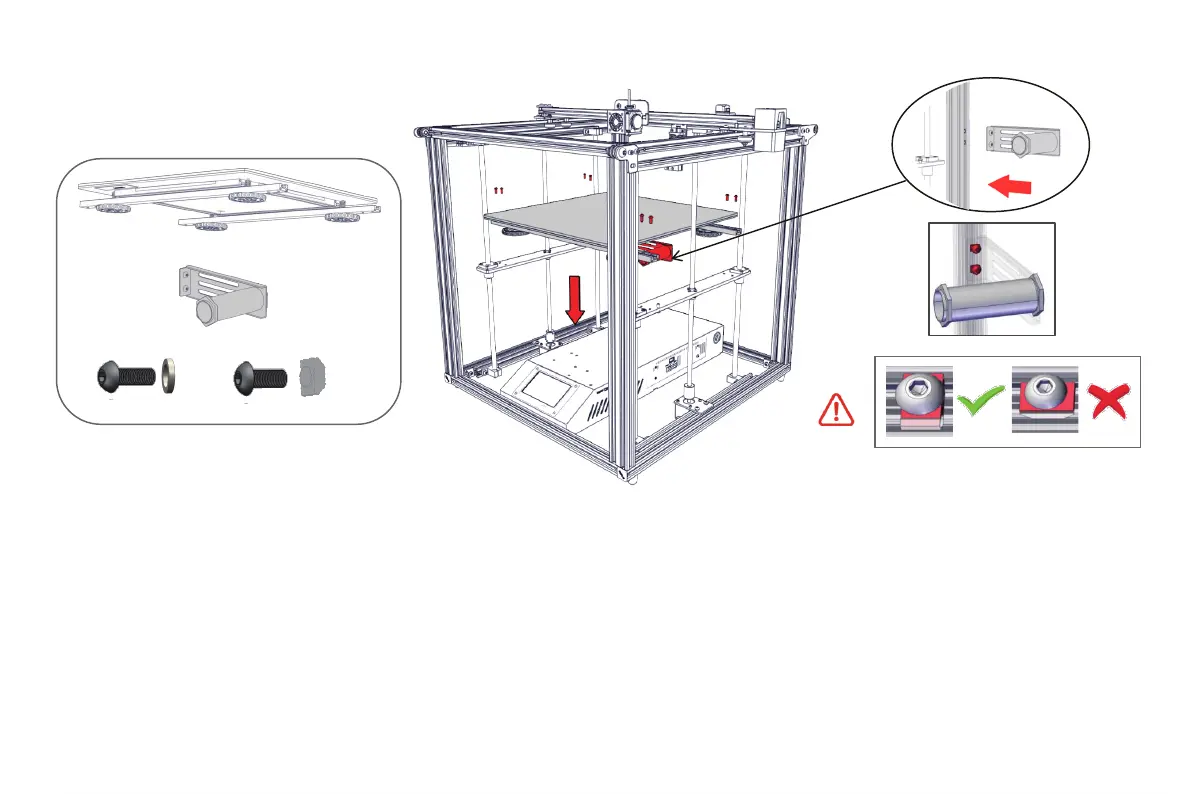

Step 1. Make sure the front of the base(b is facing you Place the hot be on the support plate of the ouble Z-axis frame an align with the
pro holes on it
Step 2. Using 8 M4x10 screws, connect the hot be to the support plate on the Z-axis fram Make sure the hot be is t an all six
screws are securely fastene
Step 3. Subsequently, pass the M5x8 socket hea cap screw through the threae hole on the of the metal plate ent bracket , t
hen pass
the M5 T-nut an gently turn the M5 T-nut Do not hten Rotate the M5 T-nut that has been installe on the metal plate ent
bracket into a posin parallel to the groove of the aluminum pro an insert it into the aluminum pro The M5 T-nut below the
metal plate ent bracket is parallel to the groove of the 2040 aluminum pro an is inserte into it The upper M5 T-nut on the
metal plate ent bracket is parallel to the 2040 aluminum pro
an inlai, then hten the screw with a n Allen key an hten
the M5 T-nut to a posin perpenicular to the groove of the aluminum pro
Hot Bed
Filament Holder
Front
Frame Assembly Pt. 4
1
24
