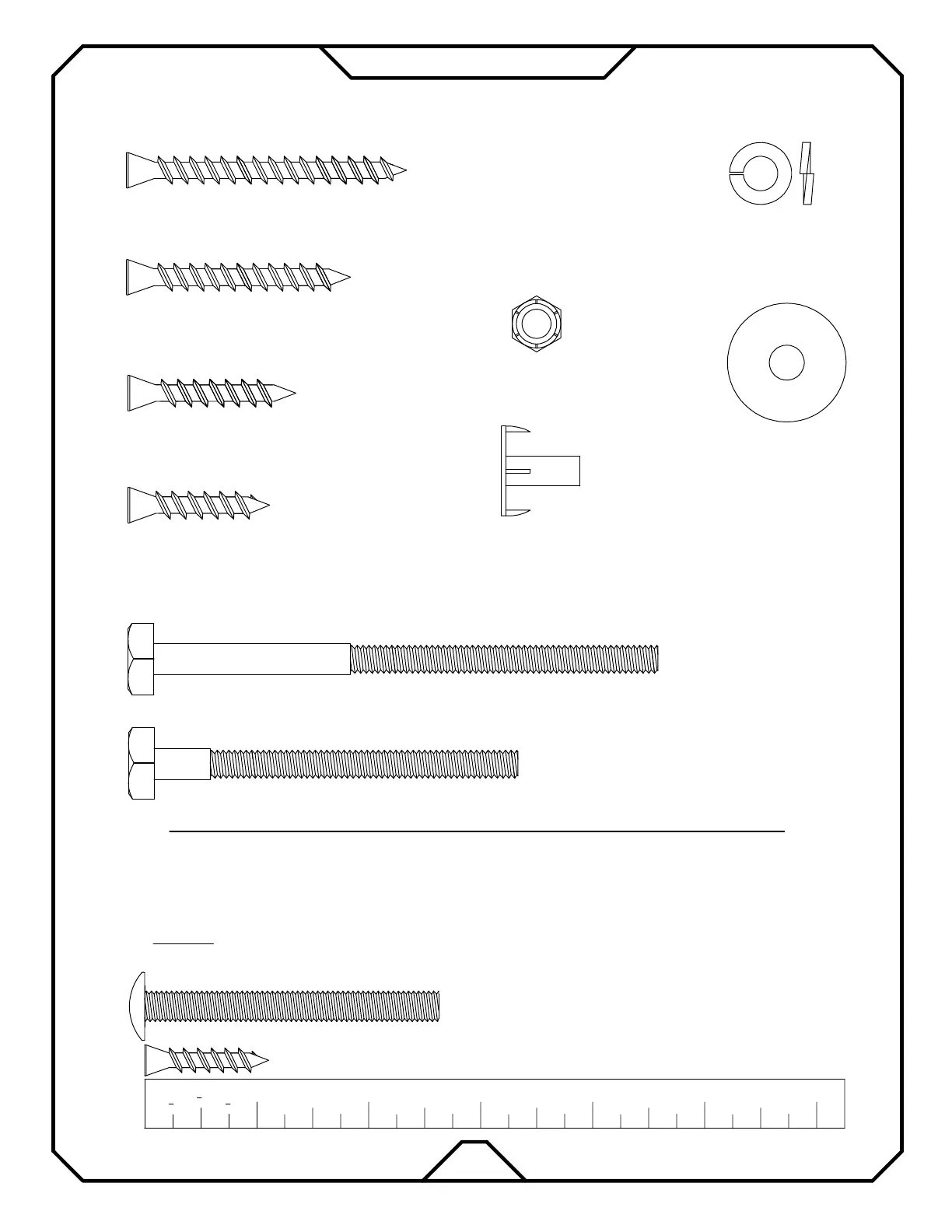

Hardware Identifi cation
(89)
Fender Washer
1) Do not include bolt head when measuring length of bolt.
Measuring hardware
NOTES:
2) Include full length of deck screw when measuring.
1
4
"
1"
1
2
"
3
4
"
2"
3"
4"
5" 6"
It is very important that you get the right hardware in the correct place when assembling the
unit. You can compare the hardware to the hardware identification page.
15
(2)
5/16" x 3 1/4" Hex Head Bolt
(1)
5/16" x 4 1/2" Hex Head Bolt
1 1/2" T-20 Head Deck Screws
(112)
#8DS11/2
(83)
1 1/4" T-20 Head Deck Screws
#8DS11/4
(32)
5/16TN
5/16" T-nuts
(32)
5/16" Split Washers
5/16SW
2 1/2" Square Head Deck Screws
(16)
#8DS2 1/2
2" Square Head Deck Screws
(32)
#8DS2
(9)
5/16" Lock Nuts
LN5/16
To Next Page
