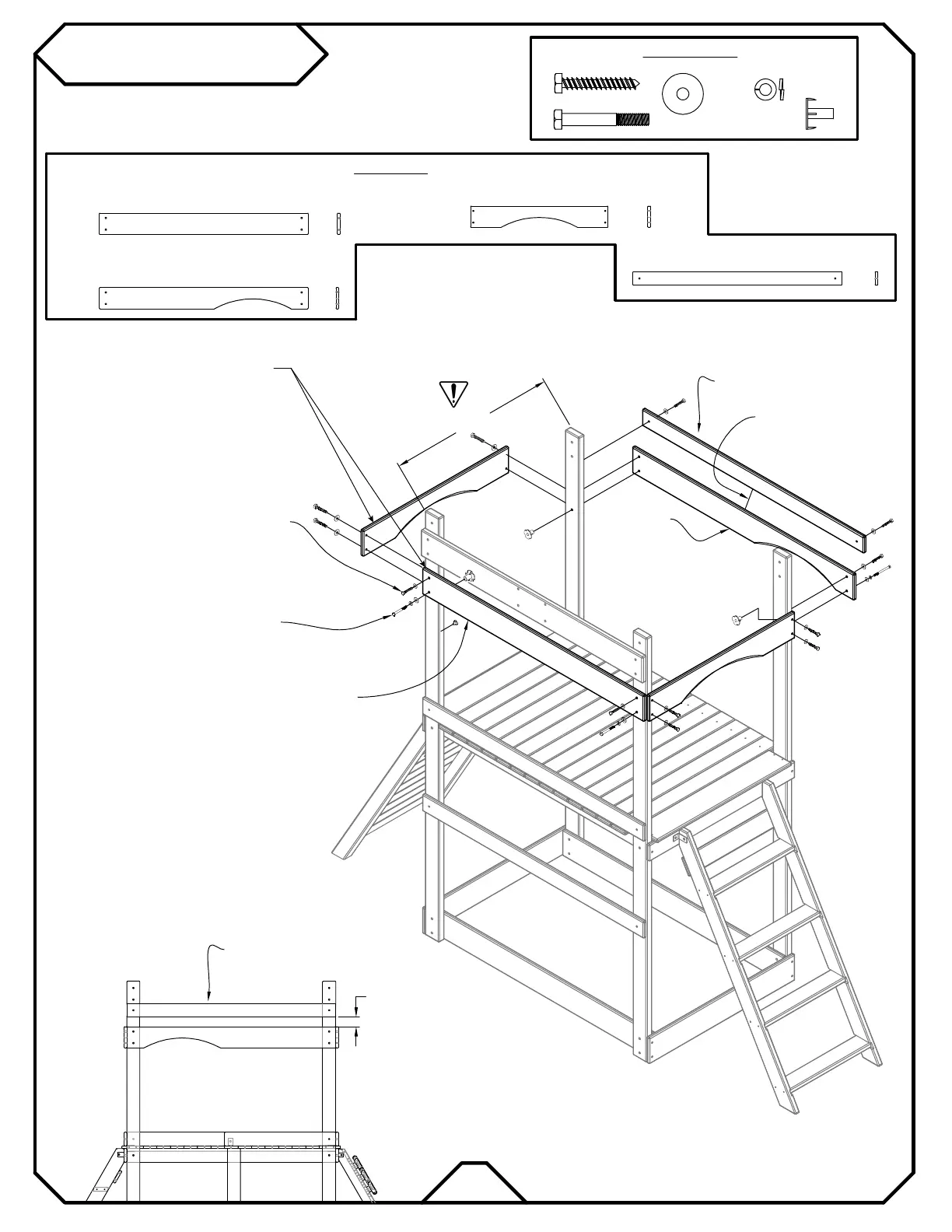

Phase 8:
23
TOP RAIL
INSTALLATION
Phase Parts
(1) 11/16 X 5 1/2 X 54 RAIL/GROUND BOARD - WB001-10
(1) 11/16 X 5 1/2 X 54 SIDE ARCH RAIL - WB002-10
(2) 11/16 X 5 1/2 X 35 1/2 CENTER ARCH RAIL - WB004-10
5/16" x 2" Lag Screws
(14)
(18)
Fender Washer
Phase Hardware
WB002-10
WB001-10
(ATTACH THIS RAIL FIRST,
THEN ALIGN THE OTHER RAILS
FLUSH WITH IT'S TOP EDGE)
TOP WALL RAILS ARE FLUSH
WITH EACH OTHER
(1) 11/16 X 3 1/2 X 54 WALL RAIL - WA006-10
(4)
5/16" T-nuts
(4)
5/16" Split Washers
(4)
5/16" x 2 1/4" Hex Bolts
T-NUTS
2 1/2" BETWEEN
BOARDS
WA006-10
2 1/2"
WA006-10
WB001-10
2" LAG SCREW & FENDER WASHER
THROUGH THE TOP HOLE OF RAIL
(INSTALL BOLT IN
BOTTOM HOLE OF RAIL FIRST)
2 1/4" HEX BOLT
SPLIT WASHER
& FENDER WASHER
35 1/2 O.D.
To Next Page
