Creative Cedar Designs Sky View 3101 - Phase 3: Floor Installation

Phase 3:
18
FLOOR INSTALLATION
Phase Hardware
Phase Parts

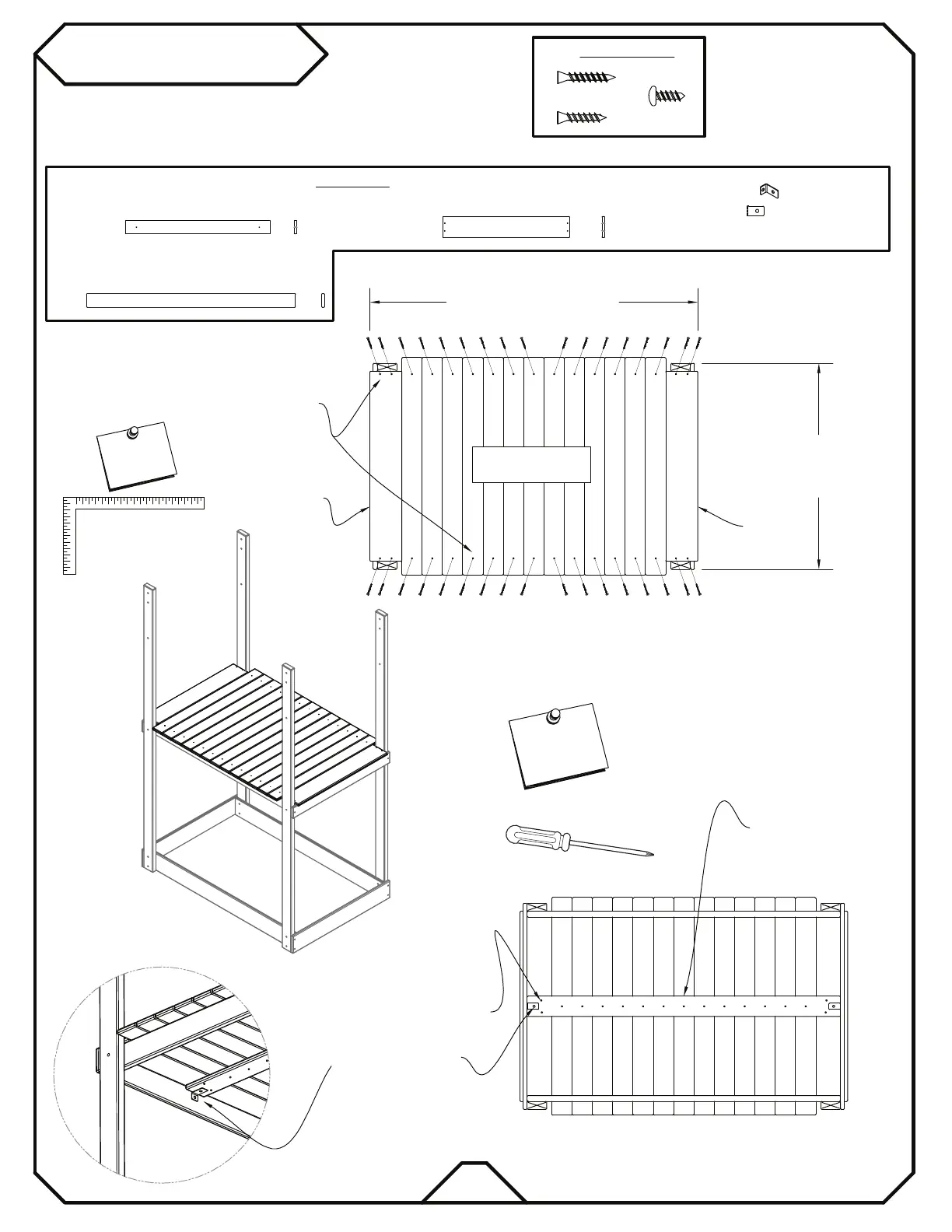

(13) 11/16 X 3 1/2 X 37 1/2 FLOOR BOARD - WA002-10
(2) 11/16 X 5 1/2 X 32 3/4 END FLOOR BRD. - WB005-10
TOP OF FLOOR
BOTTOM OF FLOOR
1-1/2” T-20 DECK SCREWS
SCREW INTO FLOOR JOIST
CENTER FLOOR LAYOUT
CENTER
FLOOR LAYOUT
WB005-10
WB005-10
(2) 3/4" TAPPING SCREW
IN EACH BRACKET
1 1/4" DESK SCREWS
(2 SCREWS INTO EACH END
FLOOR BOARD. 1 SCREW INTO
ALL OTHER FLOOR BOARDS)
(1) 11/16 X 3 1/2 X 54 FLOOR BRACE - WA005-10
(2) GREEN L-BRACKET (SMALL) - M002
WA005-10
CENTERED & FLAT
AGAINST THE BOTTOM
OF FLOOR
MAKE SURE FRAME IS
SQUARE BEFORE
PROCEEDING!
1 1/2" T-20 Deck Screws
(34)
(17)
1 1/4" T-20 Deck Screws
3/4" Tapping Screws
(4)
Important
Note!
Important
Note!
HAND TIGHTEN
ALL TAPPING SCREWS
