Phase 6:
21

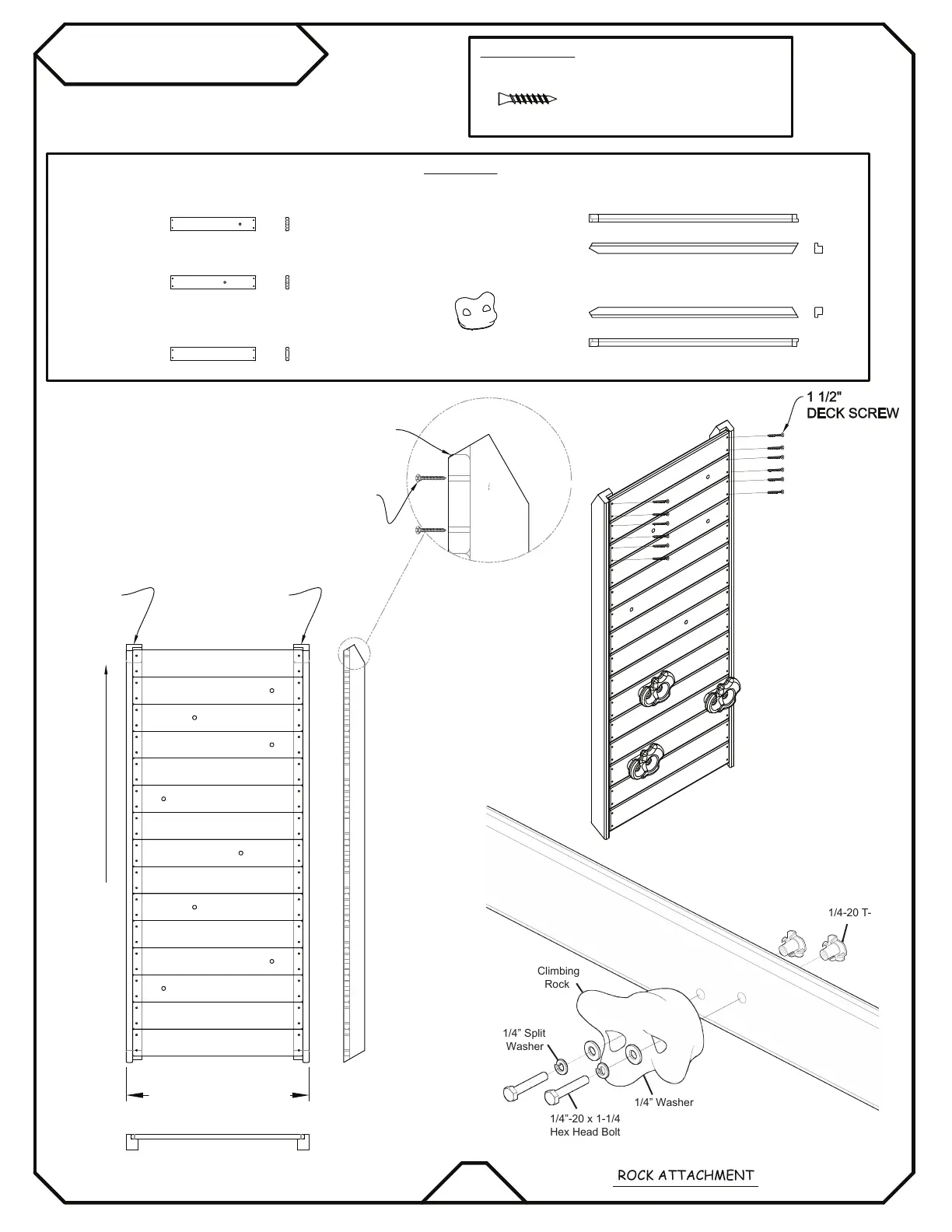

ROCKWALL ASSEMBLY
Phase Parts
Phase Har dware
1 1/2" T-20 Deck Screws
(60)
START FIRST BOARD
'WA012-10' FLUSH WITH
ANGLED EDGE
TOP END
1 1/2" DECK SCREW
(5) 11/16 X 3 1/2 X 22 ROCKWALL ROCK BRD. - WA010-10
(3) 11/16 X 3 1/2 X 22 ROCKWALL ROCK BRD. - WA011-10
(7) 11/16 X 3 1/2 X 22 ROCKWALL SLAT - WA012-10
(1) 2 X 2 11/16 X 54 ROCKWALL RAIL-RIGHT - WSF001-10
(1) 2 X 2 11/16 X 54 ROCKWALL RAIL-LEFT - WSF002-10
ROCK ATTACHMENT
1/4”-20 x 1-1/4
Hex Head Bolt
1/4” Split
Washer
1/4-20 T-Nut
1/4” Washer
Climbing
Rock
(2) 4 COUNT BAGS CLIMBING ROCKS
BP011-GYBR
23 5/8" O.D.
WA012-10
PUSH ALL BOARDS TO TOP BOARD
(NO GAPS)
WA010-10
WA011-10
WA010-10
WA012-10
WA010-10
WA012-10
WA011-10
WA012-10
WA011-10
WA012-10
WA010-10
WA010-10
WA012-10
WA012-10
ASSEMBLED
END VIEW
WSF002-10 WSF001-10
PLEASE REFER TO
ACCESSORY PLAN FOR
INSTALLATION INSTRUCTIONS
AND HARDWARE.
LINE UP EACH ROCK WITH ONE
HOLE & MARK THE SECOND
HOLE. DRILL 3/8” HOLE AT
LOCATION THEN MOUNT
AS SHOWN BELOW.
