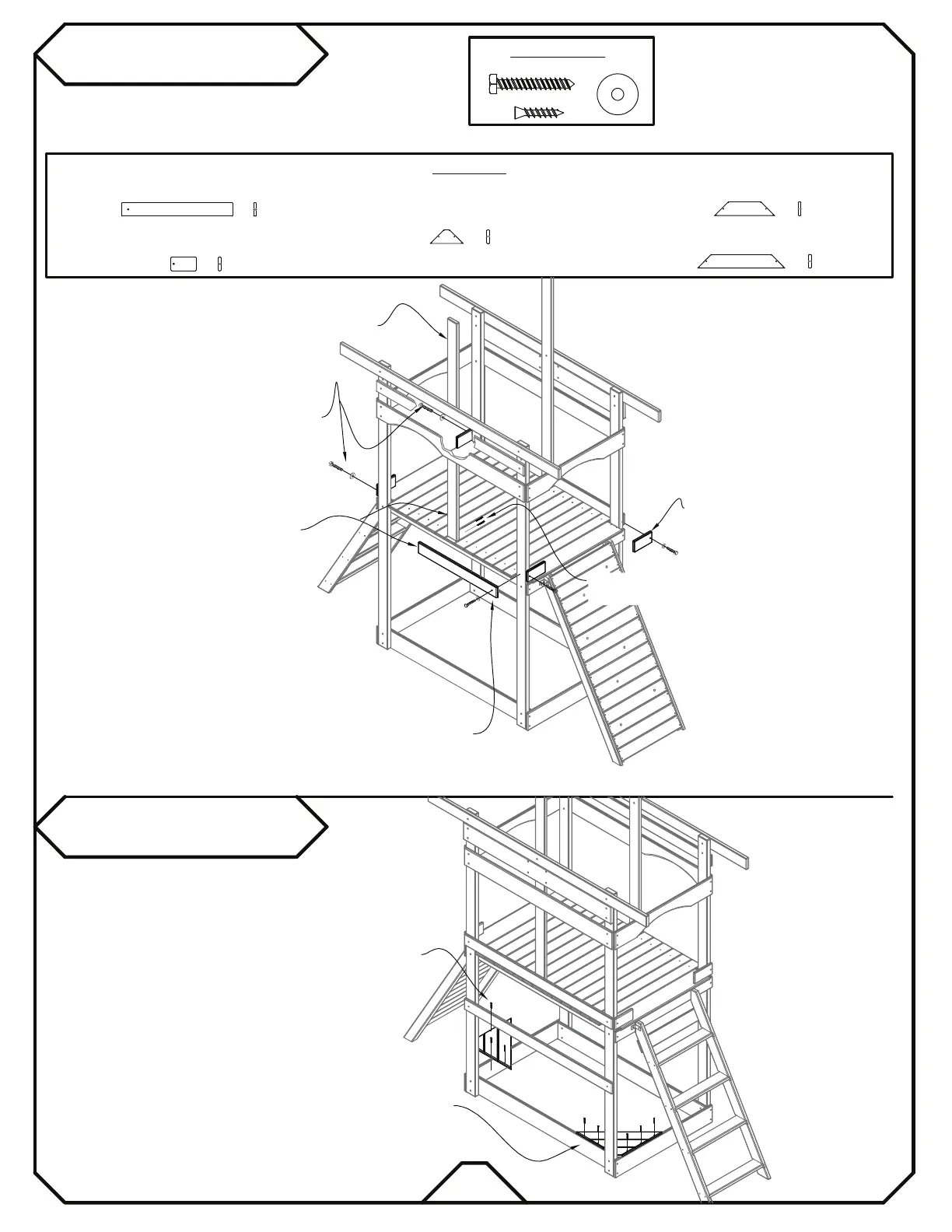

Phase 10:

LOWER RAIL

ATTACHMENT

Phase Parts

Phase Hardware

(1) 11/16 X 3 1/2 X 28 3/4 WALL RAIL - WA007-10

(4) 11/16 X 3 1/2 X 6 1/2 WALL RAIL - WA008-10

5/16" x 2" Lag Screws

(5)

Fender Washer

(2) 11/16 X 3 1/2 X 8 1/2 SANDBOX SEAT - WA015-10

(2) 11/16 X 3 1/2 X 15 1/2 SANDBOX SEAT - WA016-10

(2) 11/16 X 3 1/2 X 22 1/2 SANDBOX SEAT - WA017-10

WA008-10

(REST RAIL ON FLOOR AND

LAG SCREW INTO

CENTER OF UPRIGHT FACE)

WA007-10

(REST RAIL ON FLOOR AND LAG SCREW INTO

CENTER OF UPRIGHT FACE. OPENING EDGE SHOULD BE

FLUSH WITH OPENING EDGE OF TARP UPRIGHT)

(DECK SCREW THROUGH TARP UPRIGHT INTO RAIL)

OPENING EDGE

TARP UPRIGHT

(14)

1 1/4" T-20 Deck Screws

2" LAG SCREW

& FENDER WASHER

!!END WALL OPENINGS!!

Phase 10-B:

SANDBOX SEAT

INSTALLATION

1 1/4" DECK SCREWS

THROUGH TARP UPRIGHT INTO BOTTOM RAIL

ARANGE SEAT BOARDS AS SHOWN

ATTACH WITH DECK SCREWS INTO CENTER OF TOP EDGE

OF GROUND BOARDS

1 1/4" DECK SCREWS
