Creative Cedar Designs Sky View 3101 - Phase 4: Rail Attachment

Phase 4:
19

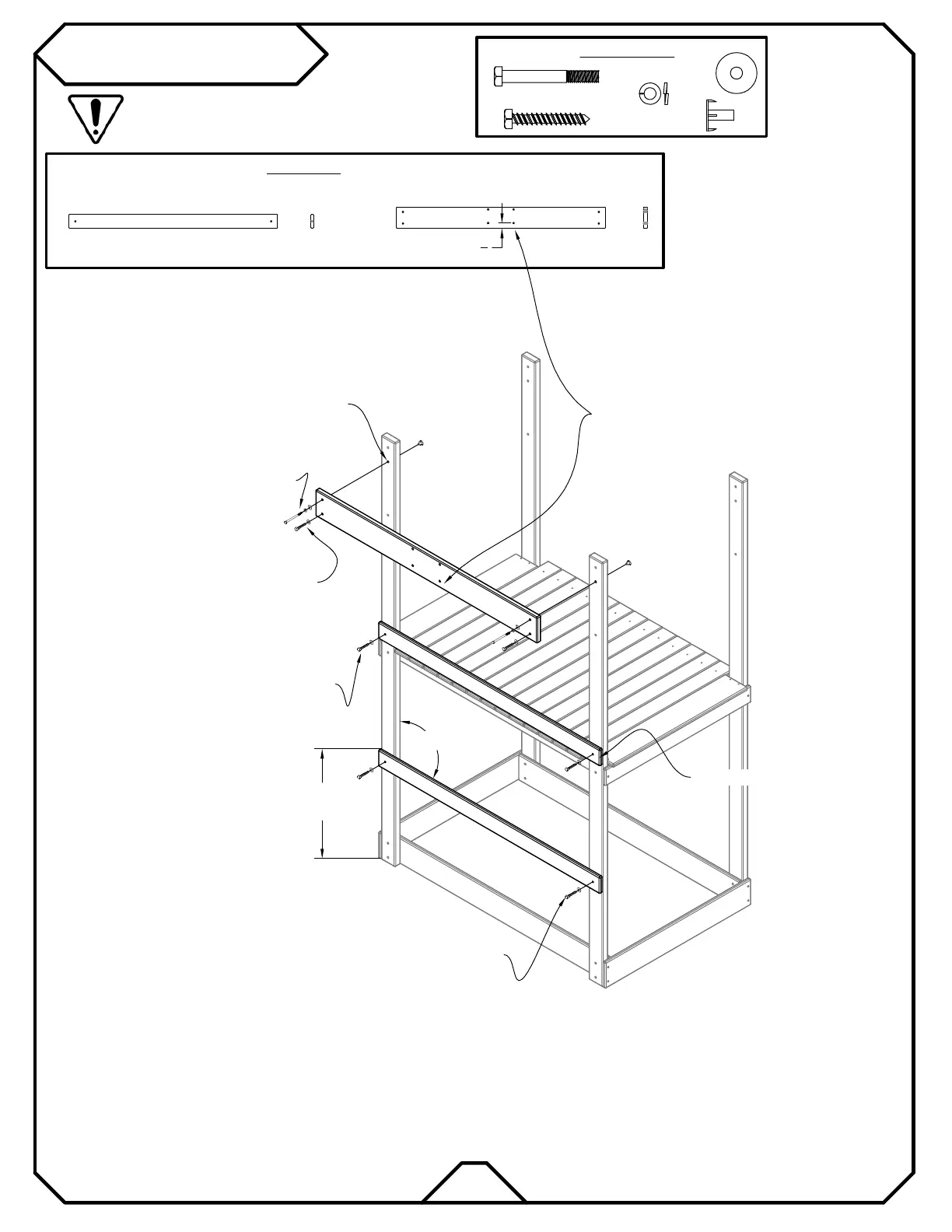

RAIL ATTACHMENT
Phase Parts
(2) 11/16 X 3 1/2 X 54 WALL RAIL - WA006-10
(1) 1 X 5 1/2 X 54 SWING BEAM CROSS BRACE - WD001-10
5/16" x 2" Lag Screws
(6)
T-NUT
BOLT CROSS BRACE
THROUGH 2ND HOLE FROM
THE TOP OF THE UPRIGHT
2 1/2" HEX BOLT
SPLIT WASHER
& FENDER WASHER
2" LAG SCREW
& FENDER WASHER
(THROUGH BOTTOM HOLE)
(2)
5/16" T-nuts
(8)
Fender Washer
(2)
5/16" Split Washers
Phase Hardware
(2)
5/16" x 2 1/2" Hex Bolts
2" LAG SCREW
& FENDER WASHER
30"
90°
2" LAG SCREW
& FENDER WASHER
REST THIS RAIL ON FLOOR
T-NUT
USE A STEP LADDER FOR SAFETY!
1
3
8
MAKE SURE THE 1 3/8" GAP IS TO
THE BOTTOM OF THE CROSS BRACE
FOR CORRECT INSTALLATION
