Creative Cedar Designs Sky View 3101 - Phase 14: Swing Beam Assembly

29

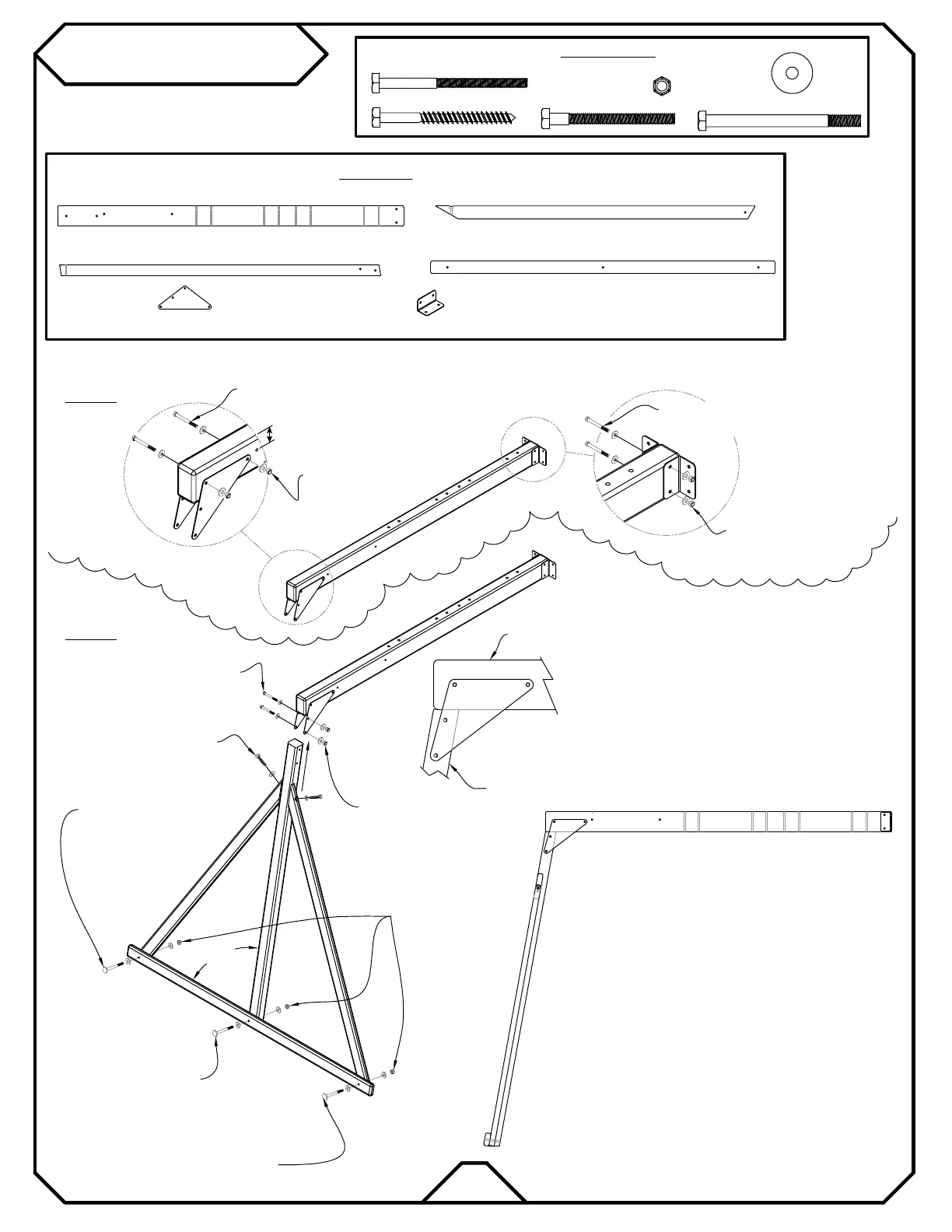

Phase 14:
SWING B EAM
ASSEMBLY
(20)
Fender Washer
(1)
5/16" x 4 1/2" Hex Head Bolt
(1) 3 5/16 X 5 5/16 X 89 1/2 SWING BEAM - LA251
(1) 3 5/16 X 2 11/16 X 83 SWING END BEAM - LD254
(2) 1 3/8 X 3 5/16 X 82 1/2 SWING ANGLE BRACE - LG252
(1) 1 3/8 X 3 5/16 X 89 SWING GROUND BOARD - LG253
4" HEX BOLT
& FENDER WASHER
FENDER WASHER
& LOCK NUT
REFERENCE
VIEW
SWING BEAM
SWING END BEAM
4" HEX BOLT
& FENDER WASHER
FENDER WASHER
& LOCK NUT
90°
5/16" x 3 1/2" Lag Screws
(2)
(9)
5/16" Lock Nuts
(6)
5/16" x 4" Hex Bolts
FENDER WASHER
& LOCK NUT
3 1/2" LAG SCREW
& 5/16" FLAT WASHER
(2) GREEN ANGLE BRACKET (5") - M005
(2) 100° TRIANGLE PLATE - M100
STEP 2:
STEP 1:
Phase Parts
Phase Hardware
5/16" x 3 1/4" HEX-HEAD
BOLT & FENDER
WASHER
(2)
5/16" x 3 1/4" Hex Head Bolt
4" HEX BOLT
& FENDER WASHER
FENDER WASHER
& LOCK NUT
5/16" x 3 1/4" HEX-HEAD
BOLT & FENDER
WASHER
5/16" x 4 1/2" HEX-HEAD
BOLT & FENDER
WASHER
2-1/8”
