Creative Cedar Designs Sky View 3101 - Phase 15: Swing Beam Assembly

30

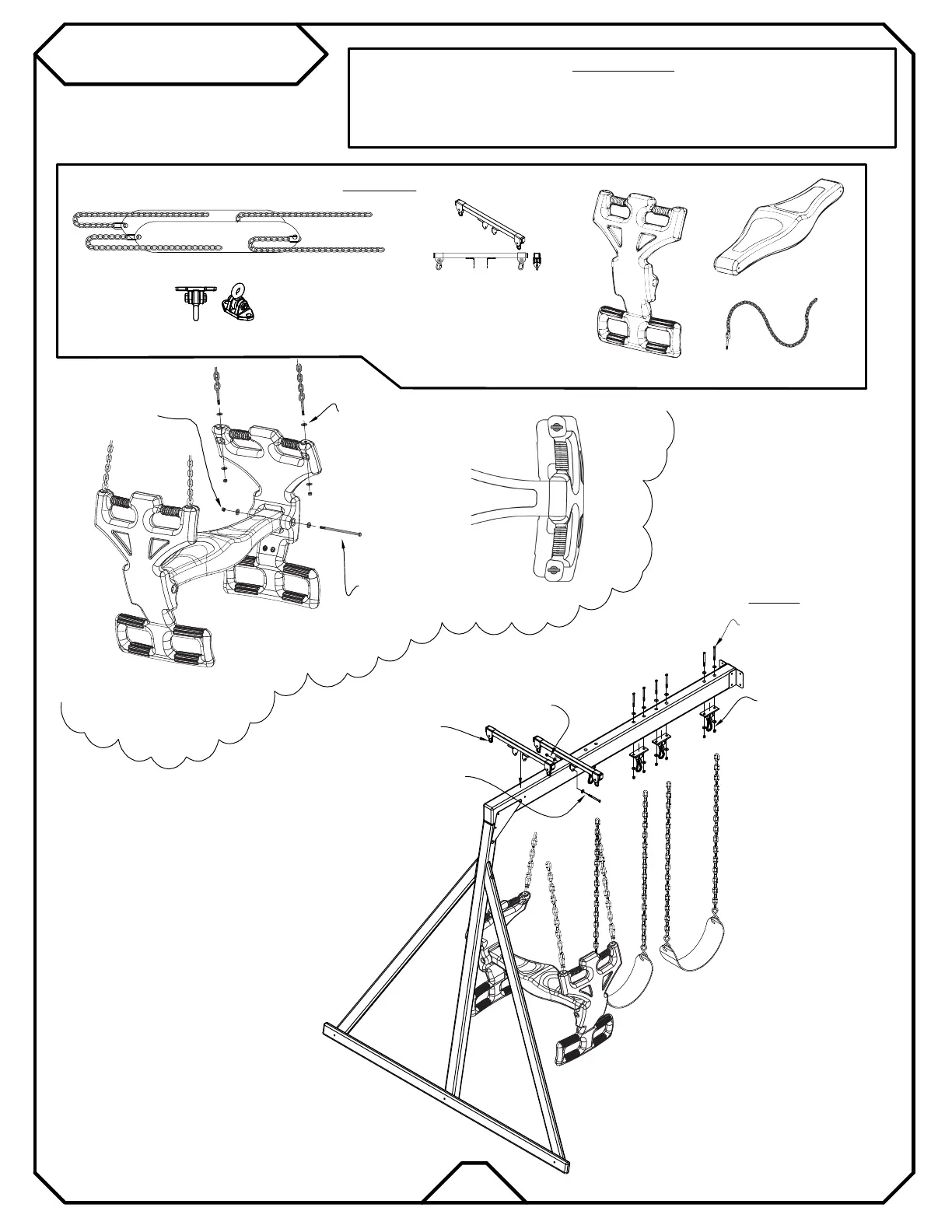

Phase 15:
SWING B EAM
ASSEMBLY
(4) ULTIMATE SWING HANGER
KC 003
Phase Parts
Phase Hardwar e
5 3/4" HEX BOLT
& FENDER WASHER
FENDER WASHER
& LOCK NUT
4" HEX BOLT
& FENDER WASHER
FENDER WASHER
& LOCK NUT
TIGHTEN QUICK LINK
AFTER ATTACHING CHAIN
STEP 2:
(1 PAIR) GLIDER BRACKET
BP 020
(2) STANDARD SWING SEAT - BP010-Y
(1) GLIDER SEAT
(4) CHAIN w/ EYE BOLT
7-1/2” HEX BOLT
& 3/4” WASHER
1/2” LOCK NUT
& 3/4” WASHERS
1/2” LOCK NUT
& 7/8” WASHERS
EYE BOLT
ORIENTATION
(1) GLIDER - BP 018-GY
(2) GLIDER ARM
NOTE:
TIGHTEN LOCK NUTS
UNTIL (3) THREADS
ARE EXPOSED
PLEASE REFER TO THE SWING HANGER, SWING SEAT,
AND GLIDER ACCESSORY PLANS FOR INSTALLATION
INSTRUCTIONS AND HARDWARE.
