Phase 16:

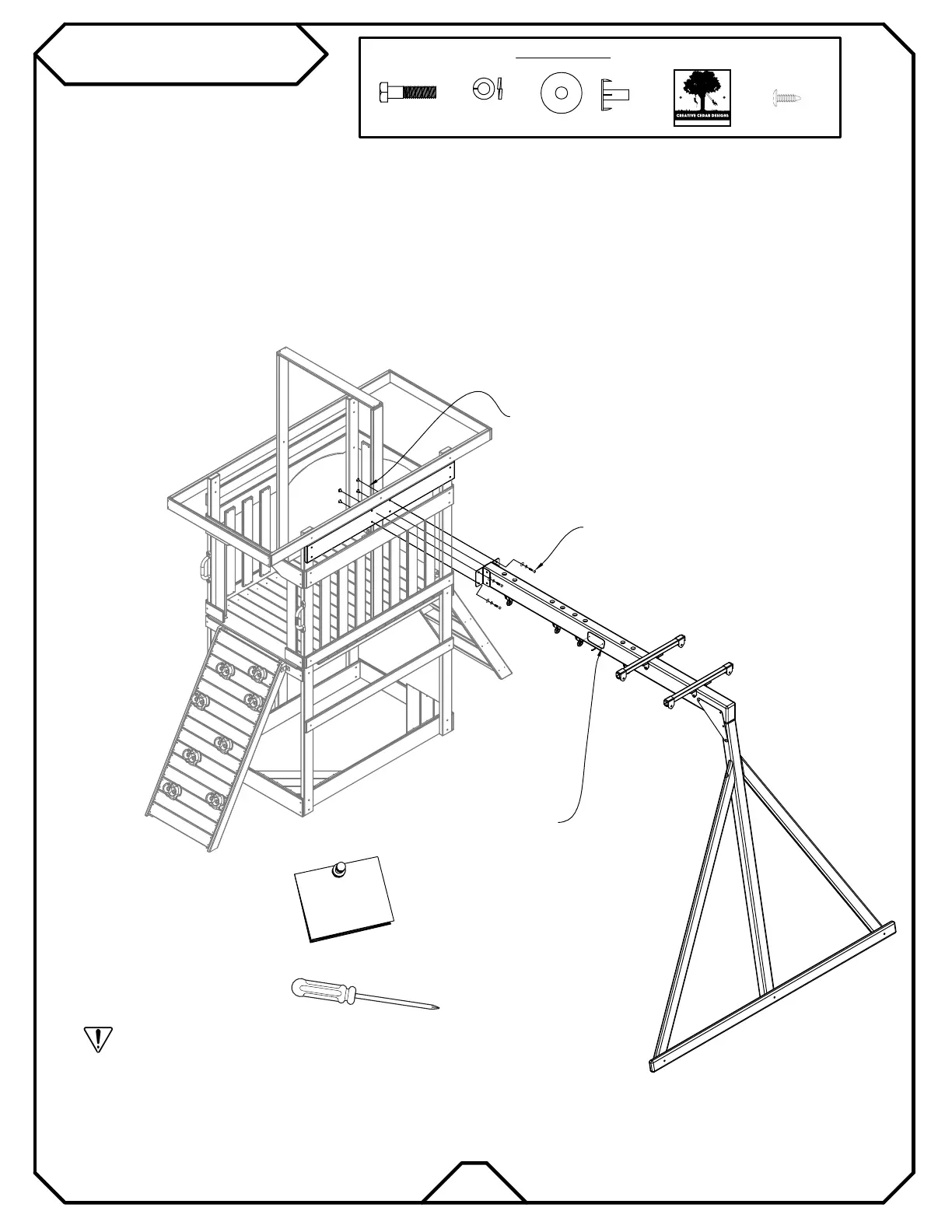

HAMMER T-NUTS INTO HOLES ON

BACKSIDE OF CROSS BRACE

SWING B EAM

ATTACHMENT

CENTER AND ATTACH

ID TAG WITH

3/4” DECK SCREWS

(4)

5/16" x 1 1/4" Hex Bolts

(4)

Fender Washer

(4)

5/16" Split Washers

Phase Hardware

(4)

5/16" T-nuts

CreativeCedarDesigns.com

(2) 3/4 Tapping Screw

(1) ID Tag

1 1/4" HEX BOLT, 5/16" SPLIT WASHER

& FENDER WASHER

Important

Note!

HAND TIGHTEN

ALL TAPPING SCREWS

SWING ACCESSORIES

NOT SHOWN FOR CLARITY

(DO NO ALLOW CHILDREN TO PLAY ON

FORT / SWING ACCESSORIES UNTIL ASSEMBLY IS COMPLETE)
