Creative Cedar Designs Sky View 3101 - Sky View Gym Assembly Instructions; Phase 1: Fort Frame Assembly

Phase 1:
16

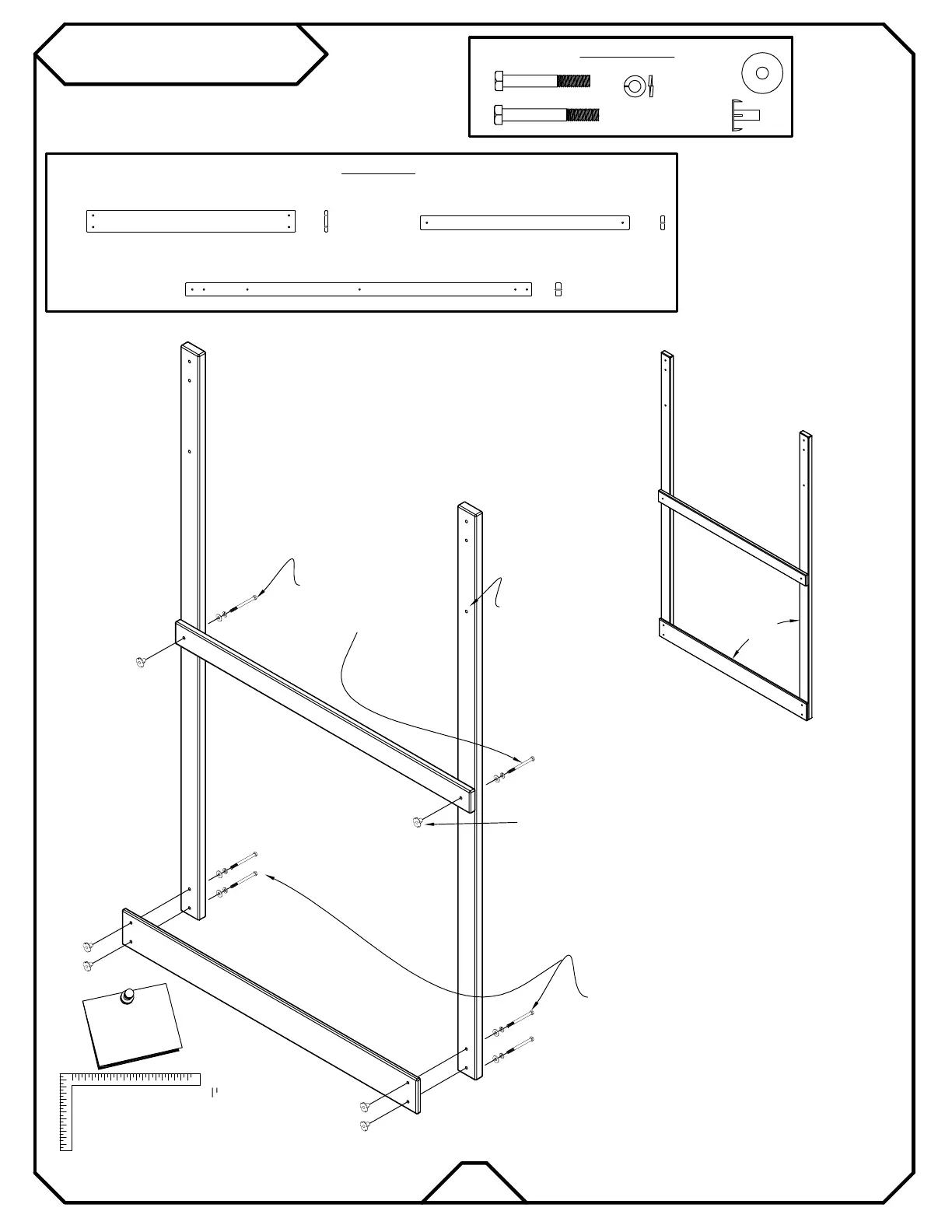

FORT FRAME ASSEMBLY
(12)
5/16" T-nuts
(12)
Fender Washer
(12)
5/16" Split Washers
Phase Hardware
Phase Parts
Important
MAKE SURE FRAMES ARE
SQUARE BEFORE
PROCEEDING TO NEXT
PHASE!
(2) 11/16 X 5 1/2 X 54 GROUND BOARD - WB001-10
(2) 1 X 3 1/ 2 X 54 FL OOR BRD. - WC001-10
(4)13/8X33/8X891/2FORTUPRIGHT-WE001-10
(8)
5/16" x 2 1/4" Hex Bolts
(4)
5/16" x 2 1/2" Hex Bolts
2 1/4" HEX BOLT
SPLIT WASHER
& FENDER WASHER
BUIL D 2 FRAME
ASSEMBLIES
NOTE HOLE
ORIE NTATION FOR
CORRECT ASSEMBLY
90°
T-NUTS
(MUST HAMMER INTO HOLE,
PRIOR TO INSERTING BOLT)
T-NUTS
BUIL D 2 FRAME
ASSEMBLIES
2 1/2" HEX BOLT
SPLIT WASHER
& FENDER WASHER
Note!
